BATTERY CARRIER

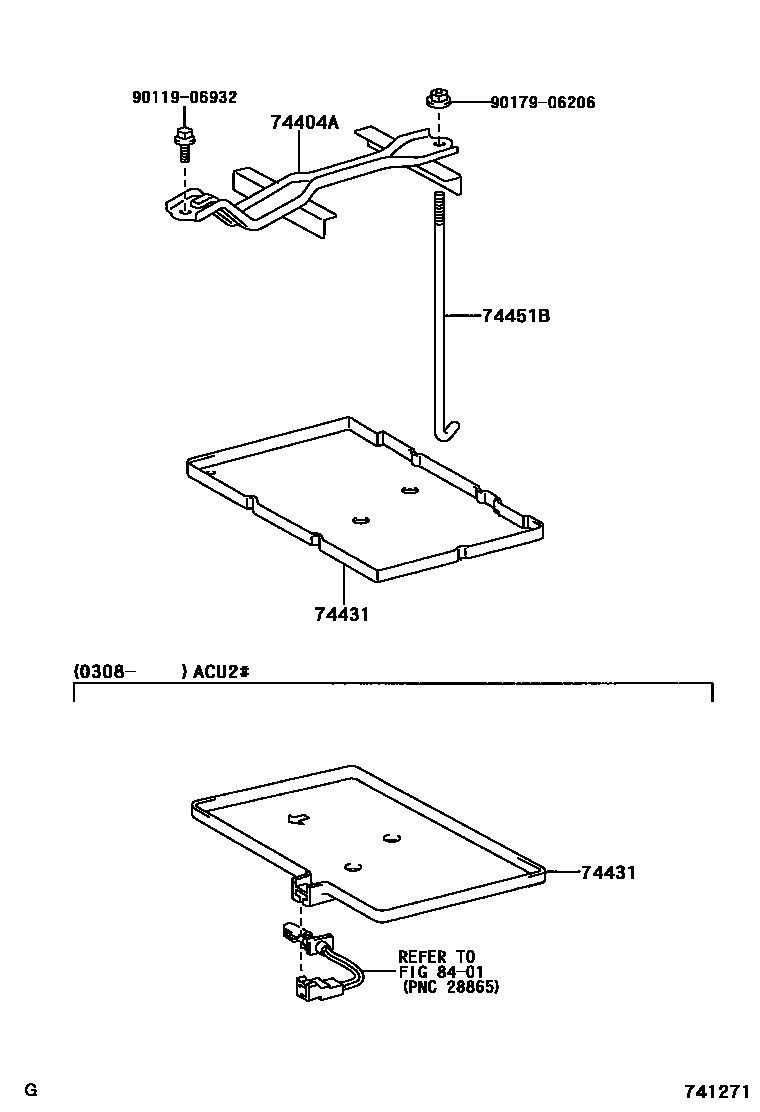

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-48020i200011-200308

main74404-48030i200011-200308

74431TRAY, BATTERY

main74431-33011i200308

main74431-48020i200308

74451BBOLT, BATTERY CLAMP

main74452-33010i200011-200308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906932

main90119-06932

9017906206

main90179-06206

6 parts on this diagram · 1 diagram in section
