REAR SEAT & SEAT TRACK

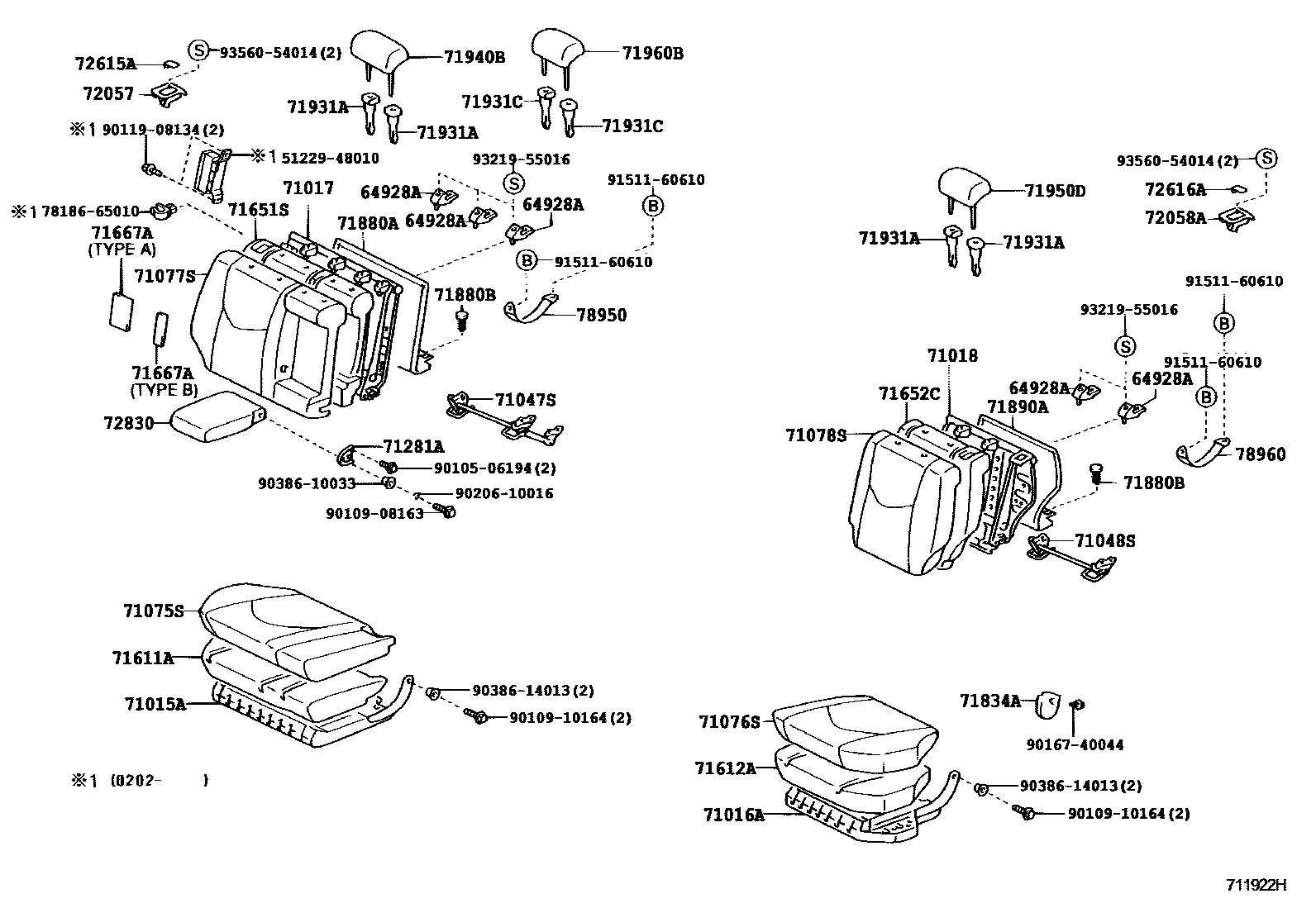

Parts diagram
64928AHOLDER, TONNEAU COVER HOOK
main64928-48010-B0×4i200011-200308
SHADOW GRAY,TRIM15
main64928-48010-B1×4i200011-200308
MD.CHARCOAL,TRIM14
main64928-48010-B2×3i200308-200705
GRAY,TRIM1#
main64928-48010-C0×3i200308-200705
BLACK,TRIM2#
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71015-48040i200011-200308
main71650-48020i200308
main71650-48030i200308
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
main71016-48030i200011-200308
main71660-48010i200308
main71660-48020i200308
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-48060i200011-200202
main71017-48090i200202-200308
main71017-48100i200308
main71017-48120i200308
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-48060i200011-200308
main71018-48070i200308
main71018-48080i200308
71047SFRAME SUB-ASSY, REAR SEATBACK, LOWER RH
main71047-48010i200011-200308
main71047-48020i200308
main71047-48030i200308
71048SFRAME SUB-ASSY, REAR SEATBACK, LOWER LH
main71048-48010i200011-200308
main71048-48020i200308
main71048-48030i200308
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-48120-B0i200011-200308
main71075-48130-B0i200011-200308
main71075-48140-B1i200011-200308
main71075-48170-C0i200201-200212
main71075-48240-B4i200308-200705
GRAY,TRIM1#
main71075-48240-C3i200308-200705
BLACK,TRIM2#
main71075-48250-B2i200308-200705
main71075-48250-C3i200308-200705
main71075-48280-B4i200308-200705
GRAY,TRIM1#
main71075-48280-C4i200308-200705
BLACK,TRIM2#
main71075-48290-B2i200308-200705
main71075-48290-C3i200308-200705
71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71076-48080-B0i200011-200308
main71076-48090-B0i200011-200308
main71076-48100-B1i200011-200308
main71076-48140-C0i200201-200212
main71076-48200-B3i200308-200705
GRAY,TRIM1#
main71076-48200-C3i200308-200705
BLACK,TRIM2#
main71076-48210-B1i200308-200705
main71076-48210-C2i200308-200705
main71076-48240-B3i200308-200705
GRAY,TRIM1#
main71076-48240-C3i200308-200705
BLACK,TRIM2#
main71076-48250-B1i200308-200705
main71076-48250-C2i200308-200705
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-48120-B0i200011-200308
main71077-48130-B0i200011-200308
main71077-48140-B1i200011-200308
main71077-48200-C0i200212-200308
main71077-48290-B3i200308-200408
GRAY,TRIM1#
main71077-48290-C2i200308-200408
BLACK,TRIM2#
main71077-48300-B1i200308-200408
main71077-48300-C1i200308-200408
main71077-48310-B3i200308-200408
GRAY,TRIM1#
main71077-48310-C3i200308-200408
BLACK,TRIM2#
main71077-48320-B1i200308-200408
main71077-48320-C1i200308-200408
main71077-48321-B2i200408-200705
main71077-48321-C2i200408-200705
main71077-48410-B1i200408-200705
GRAY,TRIM1#
main71077-48410-C0i200408-200705
BLACK,TRIM2#
main71077-48420-B1i200408-200705
main71077-48420-C0i200408-200705
main71077-48430-B0i200408-200705
GRAY,TRIM1#
main71077-48430-C1i200408-200705
BLACK,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-48120-B0i200011-200308
main71078-48130-B0i200011-200308
main71078-48140-B1i200011-200308
main71078-48180-C0i200212-200308
main71078-48250-B3i200308-200408
GRAY,TRIM1#
main71078-48250-C2i200308-200408
BLACK,TRIM2#
main71078-48260-B1i200308-200408
main71078-48260-C1i200308-200408
main71078-48270-B3i200308-200408
GRAY,TRIM1#
main71078-48270-C3i200308-200408
BLACK,TRIM2#
main71078-48280-B1i200308-200408
main71078-48280-C1i200308-200408
main71078-48281-B2i200408-200705
main71078-48281-C2i200408-200705
main71078-48360-B1i200408-200705
GRAY,TRIM1#
main71078-48360-C0i200408-200705
BLACK,TRIM2#
main71078-48370-B1i200408-200705
main71078-48370-C0i200408-200705
main71078-48380-B0i200408-200705
GRAY,TRIM1#
main71078-48380-C1i200408-200705
BLACK,TRIM2#
71281AHINGE, REAR SEAT CENTER ARMREST
main71282-48010i200011-200308
71611APAD, REAR SEAT CUSHION, RH
main71611-48040i200011-200308
main71611-48210i200308
main71611-48230i200308
71612APAD, REAR SEAT CUSHION, LH
main71612-48030i200011-200308
main71612-48160i200308
main71612-48180i200308
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-48030i200011-200202
main71651-48060i200202-200308
main71651-48150i200308
main71651-48160i200308
71652CPAD, REAR SEATBACK, B
main71652-48030i200011-200308
71667APAD, REAR SEATBACK, CENTER A
main71667-48020i200011-200308
main71668-48020i200011-200308
71834ACOVER, REAR SEAT RECLINING, NO.1 LH
main71834-48050-B0i200011-200308
main71834-48050-B1i200011-200308
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
main71880-48050-B2i200011-200308
main71880-48050-B3i200011-200308
main71880-48060-B2i200011-200308
main71880-48060-B3i200011-200308
main71880-48120-B0i200308-200705
LT.GRAY,TRIM1#
main71880-48120-C0i200308-200705
BLACK,TRIM2#
main71880-48140-B0i200308-200705
LT.GRAY,TRIM1#
main71880-48140-C0i200308-200705
BLACK,TRIM2#
71880BCLIP(FOR REAR SEATBACK CARPET)
main90467-06016-C0×7i200011-200303
BLACK,TRIM14,15
main90467-07049-C0×7i200303-200308
BLACK,TRIM14,15
main90467-07049-P6×8i200308-200705
GRAY,TRIM1#
71890ACARPET ASSY, REAR SEATBACK BOARD, LH
main71890-48050-B2i200011-200308
main71890-48050-B3i200011-200308
main71890-48060-B2i200011-200308
main71890-48060-B3i200011-200308
main71890-48110-B0i200308-200705
LT.GRAY,TRIM1#
main71890-48110-C0i200308-200705
BLACK,TRIM2#
main71890-48130-B0i200308-200705
LT.GRAY,TRIM1#
main71890-48130-C0i200308-200705
BLACK,TRIM2#
71931ASUPPORT, REAR SEAT HEADREST
main71930-42020-B7×2i200308-200705
main71930-42020-C0×2i200308-200705
main71931-42020-B7×2i200308-200705
main71931-42020-C0×2i200308-200705
main71956-47010-B2×2i200011-200308
main71956-47010-B3×2i200011-200308
main71970-47010-B2×2i200011-200308
main71970-47010-B3×2i200011-200308
71931CSUPPORT ASSY, REAR NO.2 SEAT HEADREST
main71930-42020-B7×2i200308-200705
main71930-42020-C0×2i200308-200705
main71931-42020-B7×2i200308-200705
main71931-42020-C0×2i200308-200705
main71956-47010-B2i200011-200308
main71956-47010-B3i200011-200308
main71970-47010-B2i200011-200308
main71970-47010-B3i200011-200308
71940BHEADREST ASSY, REAR SEAT, RH
main71940-48100-B1i200011-200308
main71940-48110-B1i200011-200308
main71940-48120-B1i200011-200308
main71940-48140-C0i200201-200212
71950DHEADREST ASSY, REAR SEAT, LH
main71940-48100-B1i200011-200308
main71940-48110-B1i200011-200308
main71940-48120-B1i200011-200308
main71940-48140-C0i200201-200212
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-48100-B1i200011-200308
main71960-48110-B1i200011-200308
main71960-48120-B1i200011-200308
main71960-48140-C0i200201-200212
main71960-48150-B2i200308-200705
main71960-48150-C2i200308-200705
main71960-48160-B2i200308-200705
GRAY,TRIM1#
main71960-48160-C2i200308-200705
BLACK,TRIM2#
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
main72057-48020-B0i200011-200308
main72057-48020-B1i200011-200308
main72057-48030-B1i200308-200705
GRAY,TRIM1#
main72057-48030-C0i200308-200705
BLACK,TRIM2#
72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
main72057-48020-B0i200011-200308
main72057-48020-B1i200011-200308
main72058-48010-B1i200308-200705
GRAY,TRIM1#
main72058-48010-C0i200308-200705
BLACK,TRIM2#
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-48010-B5i200011-200308
SHADOW GRAY,TRIM15
main72615-48010-B6i200011-200308
MD.CHARCOAL,TRIM14
main72615-48020-B1i200308-200705
GRAY,TRIM1#
main72615-48020-C0i200308-200705
BLACK,TRIM2#
72616ACOVER, REAR SEATBACK LOCK STRIKER, LH
main72615-48010-B5i200011-200308
SHADOW GRAY,TRIM15
main72615-48010-B6i200011-200308
MD.CHARCOAL,TRIM14
main72615-48020-B1i200308-200705
GRAY,TRIM1#
main72615-48020-C0i200308-200705
BLACK,TRIM2#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-48080-B0i200011-200308
main72830-48090-B0i200011-200308
main72830-48100-B0i200011-200308
main72830-48130-C0i200201-200212
78950BAND ASSY, FOLD SEAT STOPPER, NO.1
main78950-48020i200011-200308
main78950-48030i200308
78960BAND ASSY, FOLD SEAT STOPPER, NO.2
main78950-48020i200011-200308
main78950-48030i200308
5122948010BOLT, SUSPENSION MEMBER SET
main51229-48010
7818665010SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
main78186-65010
9010506194
main90105-06194
9010908163
main90109-08163
9010910164
main90109-10164
9011908134
main90119-08134
9016740044
main90167-40044
9020610016
main90206-10016
9038610033
main90386-10033
9038614013
main90386-14013
9151160610
main91511-60610
9321955016
main93219-55016
9356054014
main93560-54014

46 parts on this diagram · 8 diagrams in section
