INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

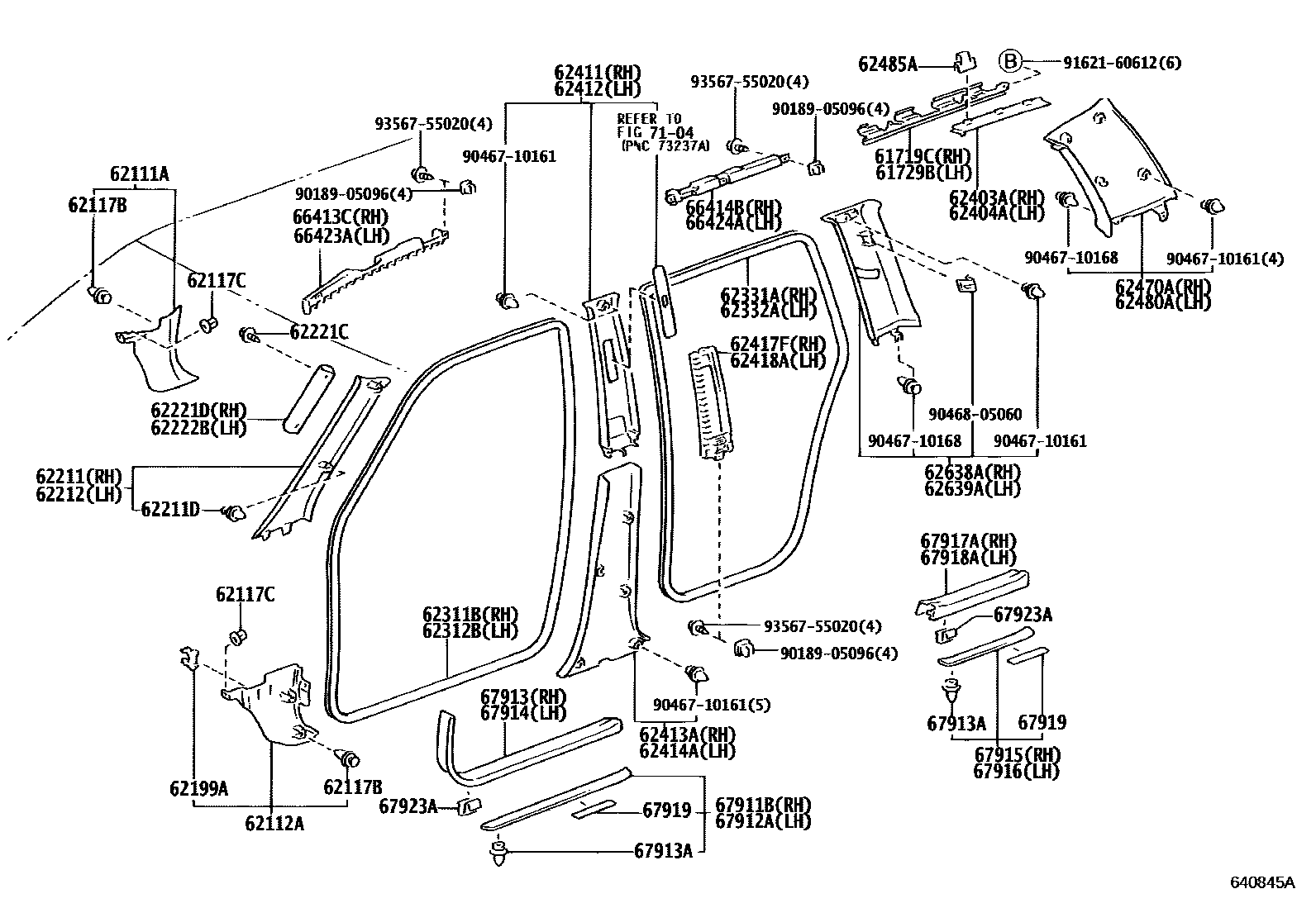

Parts diagram
61719CBRACKET, ROOF SIDE RAIL, RH
main61719-48010i200011-200308
main61719-48020i200308
61729BBRACKET, ROOF SIDE RAIL, LH
main61729-48010i200011-200308
main61729-48020i200308
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-48010-B1i200011-200308
SHADOW GRAY,TRIM15
sub62101-48010
main62101-48010-B2i200011-200308
MD.CHARCOAL,TRIM14
sub62101-48010
main62101-48030-B0i200308-200705
GRAY,TRIM1#
main62101-48030-C0i200308-200705
BLACK,TRIM2#
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-48020-B0i200011-200308
SHADOW GRAY,TRIM15
sub62102-48020
main62102-48020-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62102-48020
main62102-48050-B0i200308-200705
NEW GRAY,TRIM1#
main62102-48050-C0i200308-200705
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-10161i200011-200308
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-05145i200011-200308
62199AHOLDER, FUSEE
main90468-25003i200011-200705
62211GARNISH, FRONT PILLAR, RH
main62210-48020-B0i200011-200308
LT.GRAY,TRIM15
sub62210-48020
main62210-48020-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62210-48020
main62210-48090-B0i200308-200705
sub62210-48090
main62210-48100-B0i200308-200705
GRAY,TRIM1#,2#
sub62210-48100
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90467-10161i200011-200308
main90467-10188i200308
62212GARNISH, FRONT PILLAR, LH
main62220-48020-B0i200011-200308
LT.GRAY,TRIM15
sub62220-48020
main62220-48020-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62220-48020
main62220-48090-B0i200308-200705
sub62220-48090
main62220-48100-B0i200308-200705
GRAY,TRIM1#,2#
sub62220-48100
62221CSCREW, PILLAR JOINT SETTING
main90159-70003i200011-200308
62221DCOVER, FRONT PILLAR GARNISH, RH
main62221-48020i200011-200308
62222BCOVER, FRONT PILLAR GARNISH, LH
main62222-48020i200011-200308
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-48020-B0i200011-200308
SHADOW GRAY,TRIM15
sub62311-48050
main62311-48020-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62311-48050
main62311-48050-B0i200308-200705
GRAY,TRIM1#
sub62311-48050
main62311-48050-C0i200308-200705
BLACK,TRIM2#
sub62311-48050
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-48020-B0i200011-200308
SHADOW GRAY,TRIM15
sub62312-48050
main62312-48020-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62312-48050
main62312-48050-B0i200308-200705
GRAY,TRIM1#
sub62312-48050
main62312-48050-C0i200308-200705
BLACK,TRIM2#
sub62312-48050
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-48020-B0i200011-200308
SHADOW GRAY,TRIM15
sub62331-48020
main62331-48020-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62331-48020
main62331-48020-B2i200308-200705
GRAY,TRIM1#
sub62331-48020
main62331-48020-C0i200308-200705
BLACK,TRIM2#
sub62331-48020
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-48020-B0i200011-200308
SHADOW GRAY,TRIM15
sub62332-48020
main62332-48020-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62332-48020
main62332-48020-B2i200308-200705
GRAY,TRIM1#
sub62332-48020
main62332-48020-C0i200308-200705
BLACK,TRIM2#
sub62332-48020
62403AGARNISH SUB-ASSY, ROOF SIDE RAIL, RH
main62450-48010-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62450-48010
main62450-48010-B2i200011-200308
LT.GRAY,TRIM15
sub62450-48010
main62450-48010-B3i200308-200705
GRAY,TRIM1#,2#
sub62450-48010
62404AGARNISH SUB-ASSY, ROOF SIDE RAIL, LH
main62460-48010-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62460-48010
main62460-48010-B2i200011-200308
LT.GRAY,TRIM15
sub62460-48010
main62460-48010-B3i200308-200705
GRAY,TRIM1#,2#
sub62460-48010
62411GARNISH, CENTER PILLAR, RH
main62410-48020-B0i200011-200308
LT.GRAY,TRIM15
sub62410-48020
main62410-48020-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62410-48020
main62410-48060-B0i200308-200705
GRAY,TRIM1#,2#
62412GARNISH, CENTER PILLAR, LH
main62420-48020-B0i200011-200308
LT.GRAY,TRIM15
sub62420-48020
main62420-48020-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62420-48020
main62420-48060-B0i200308-200705
GRAY,TRIM1#,2#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-48010-B1i200011-200308
SHADOW GRAY,TRIM15
sub62413-48010
main62413-48010-B2i200011-200308
MD.CHARCOAL,TRIM14
sub62413-48010
main62413-48010-B3i200308-200705
GRAY,TRIM1#
sub62413-48010
main62413-48010-C0i200308-200705
BLACK,TRIM2#
sub62413-48010
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-48010-B1i200011-200308
SHADOW GRAY,TRIM15
sub62414-48010
main62414-48010-B2i200011-200308
MD.CHARCOAL,TRIM14
sub62414-48010
main62414-48010-B3i200308-200705
GRAY,TRIM1#
sub62414-48010
main62414-48010-C0i200308-200705
BLACK,TRIM2#
sub62414-48010
62417FPAD, CENTER PILLAR GARNISH, RH
main62417-48020i200011-200308
main62417-48060i200308
62418APAD, CENTER PILLAR GARNISH, LH
main62418-48020i200011-200308
main62418-48050i200308
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-48030-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62470-48030
main62470-48030-B2i200011-200308
LT.GRAY,TRIM15
sub62470-48030
main62470-48070-B0i200308-200705
GRAY,TRIM1#,2#
main62470-48080-B0i200308-200705
GRAY,TRIM1#,2#
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-48030-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62480-48030
main62480-48030-B2i200011-200308
LT.GRAY,TRIM15
sub62480-48030
main62480-48060-B0i200308-200705
GRAY,TRIM1#,2#
main62480-48070-B0i200308-200705
GRAY,TRIM1#,2#
62485ARETAINER, ROOF SIDE INNER GARNISH
main62485-48010i200011-200308
62638AGARNISH, QUARTER PILLAR, RH
main62638-48010-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62638-48010
main62638-48010-B2i200011-200308
LT.GRAY,TRIM15
sub62638-48010
main62638-48010-B3i200308-200705
GRAY,TRIM1#,2#
sub62638-48010
main62638-48020-B0i200308-200705
62639AGARNISH, QUARTER PILLAR, LH
main62639-48010-B1i200011-200308
MD.CHARCOAL,TRIM14
sub62639-48010
main62639-48010-B2i200011-200308
LT.GRAY,TRIM15
sub62639-48010
main62639-48010-B3i200308-200705
GRAY,TRIM1#,2#
sub62639-48010
main62639-48020-B0i200308-200705
66413CSPACER, SIDE RAIL, FRONT RH
main66413-48030i200011-200308
main66413-48070i200308
66414BSPACER, SIDE RAIL, REAR RH
main66414-48020i200011-200308
main66414-48050i200308
66423ASPACER, SIDE RAIL, FRONT LH
main66423-48030i200011-200308
main66423-48070i200308
66424ASPACER, SIDE RAIL, REAR LH
main66424-48020i200011-200308
main66424-48050i200308
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-48040i200011-200308
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-48040i200011-200308
67913PLATE, FRONT DOOR SCUFF, RH
main67913-48010-B1i200011-200308
SHADOW GRAY,TRIM15
sub67913-48010
main67913-48010-B2i200011-200308
MD.CHARCOAL,TRIM14
sub67913-48010
main67913-48010-B3i200308-200705
GRAY,TRIM1#
sub67913-48010
main67913-48010-C0i200308-200705
BLACK,TRIM2#
sub67913-48010
67913ACLIP(FOR SCUFF PLATE)
main90467-10162i200011-200308
67914PLATE, FRONT DOOR SCUFF, LH
main67914-48010-B1i200011-200308
SHADOW GRAY,TRIM15
sub67914-48010
main67914-48010-B2i200011-200308
MD.CHARCOAL,TRIM14
sub67914-48010
main67914-48010-B3i200308-200705
GRAY,TRIM1#
sub67914-48010
main67914-48010-C0i200308-200705
BLACK,TRIM2#
sub67914-48010
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-48040i200011-200308
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-48040i200011-200308
67917APLATE, REAR DOOR SCUFF, RH
main67917-48010-B1i200011-200308
SHADOW GRAY,TRIM15
sub67917-48010
main67917-48010-B2i200011-200308
MD.CHARCOAL,TRIM14
sub67917-48010
main67917-48040-B0i200308-200705
GRAY,TRIM1#
main67917-48040-C0i200308-200705
BLACK,TRIM2#
main67917-48050-B0i200308-200705
GRAY,TRIM1#
main67917-48050-C0i200308-200705
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
main67918-48010-B1i200011-200308
SHADOW GRAY,TRIM15
sub67918-48010
main67918-48010-B2i200011-200308
MD.CHARCOAL,TRIM14
sub67918-48010
main67918-48040-B0i200308-200705
GRAY,TRIM1#
main67918-48040-C0i200308-200705
BLACK,TRIM2#
main67918-48050-B0i200308-200705
GRAY,TRIM1#
main67918-48050-C0i200308-200705
BLACK,TRIM2#
67919ORNAMENT, DOOR SCUFF
main67919-48030i200011-200308
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-30030i200011-200308
7104
9018905096
main90189-05096
9046710161
main90467-10161
9046710168
main90467-10168
9046805060
main90468-05060
9162160612
main91621-60612
9356755020
main93567-55020

52 parts on this diagram · 2 diagrams in section
