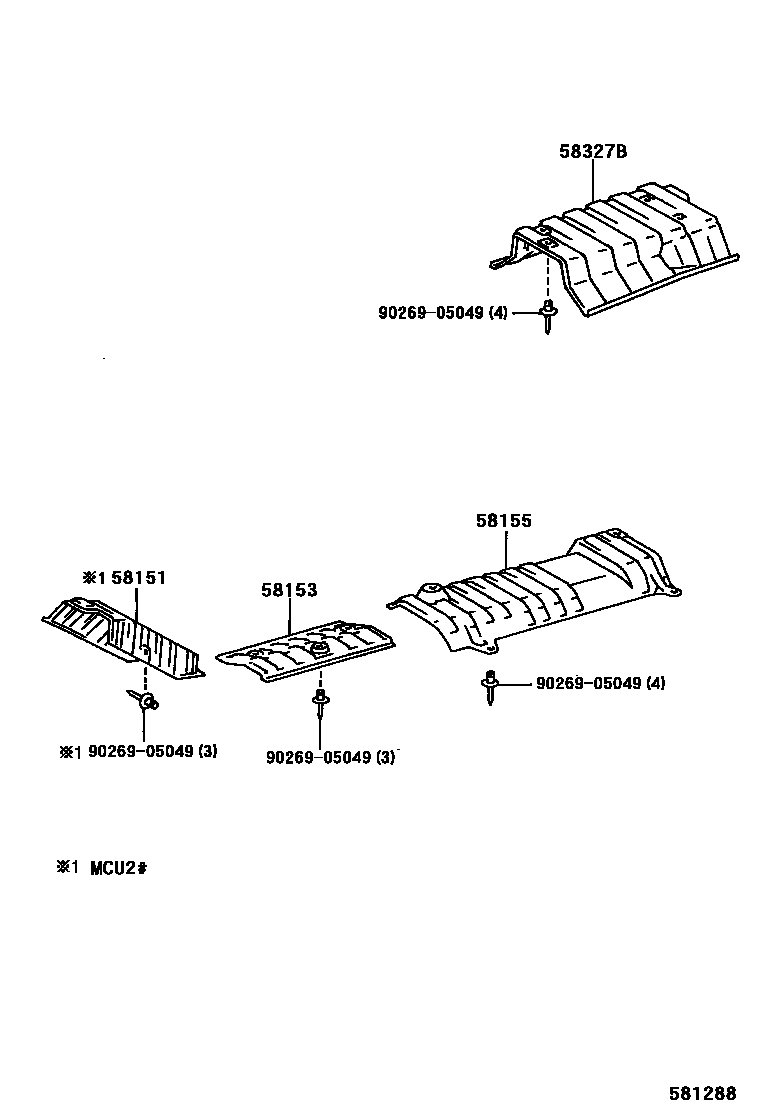

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-48020iMCU2#200011-200308

main58151-48030iMCU2#200308

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-48010iACU2#,MCU2#200011-200308

main58153-48020iACU2#,MCU2#200308

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-48010iACU2#,MCU2#200011-200308

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-48010iACU2#,MCU2#200011-200308

main58327-48030iACU2#,MCU2#200308-200703

main58327-48031iACU2#,MCU2#200703

9026905049

main90269-05049

5 parts on this diagram · 2 diagrams in section
