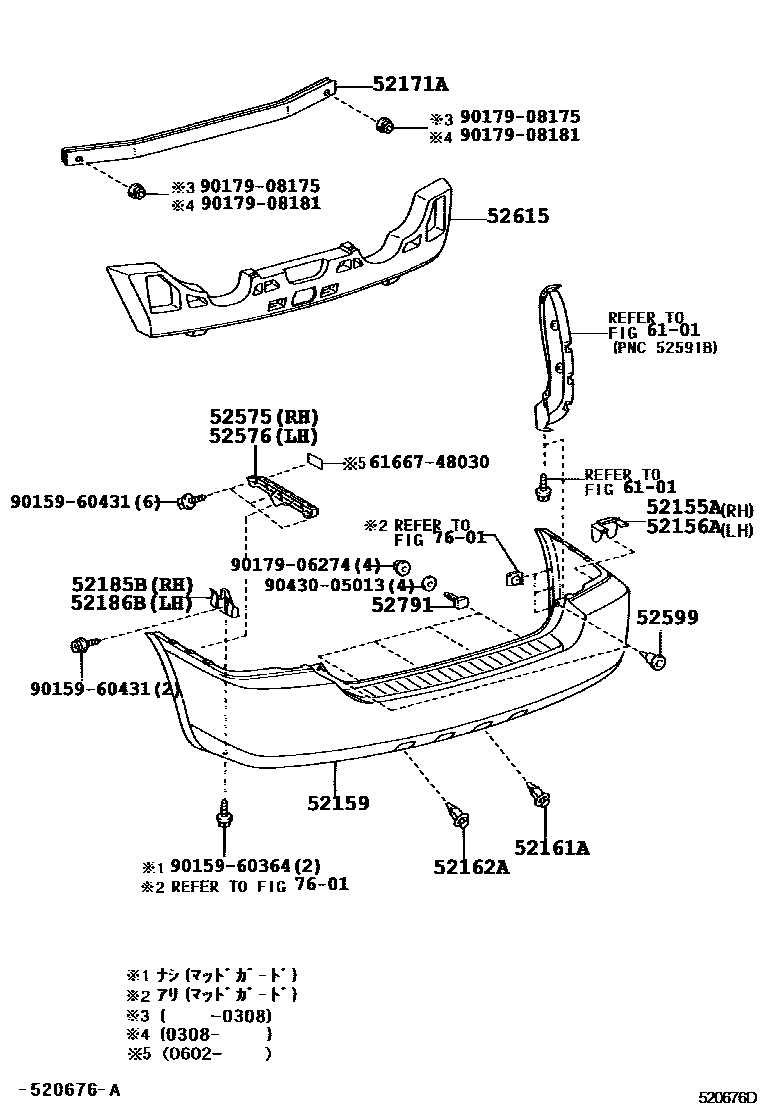

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
RED M.M.,3N8
BEIGE SF.,4P2
DARK GREEN MC.,6R4
GRAYISH BLUE ME.,8N6
DK.BLUE M.M.,8P4
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
DK. RED M.M.,3Q3
BEIGE ME.,4R4
GOLD ME.,596
GRAYISH BLUE ME.,8N6
DK.BLUE M.M.,8P4
52161APIECE, REAR BUMPER, RH
52162APIECE, REAR BUMPER, LH
52171AREINFORCEMENT, REAR BUMPER, NO.1
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
52615ABSORBER, REAR BUMPER ENERGY
52791BOLT, BUMPER MOULDING SET, NO.1
6101SIDE MEMBER
7601MUDGUARD & SPOILER
6166748030REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER RH
main61667-48030
9015960364
main90159-60364
9015960431
main90159-60431
9017906274
main90179-06274
9017908175
main90179-08175
9017908181
main90179-08181
9043005013
main90430-05013
22 parts on this diagram · 1 diagram in section
