STEERING WHEEL

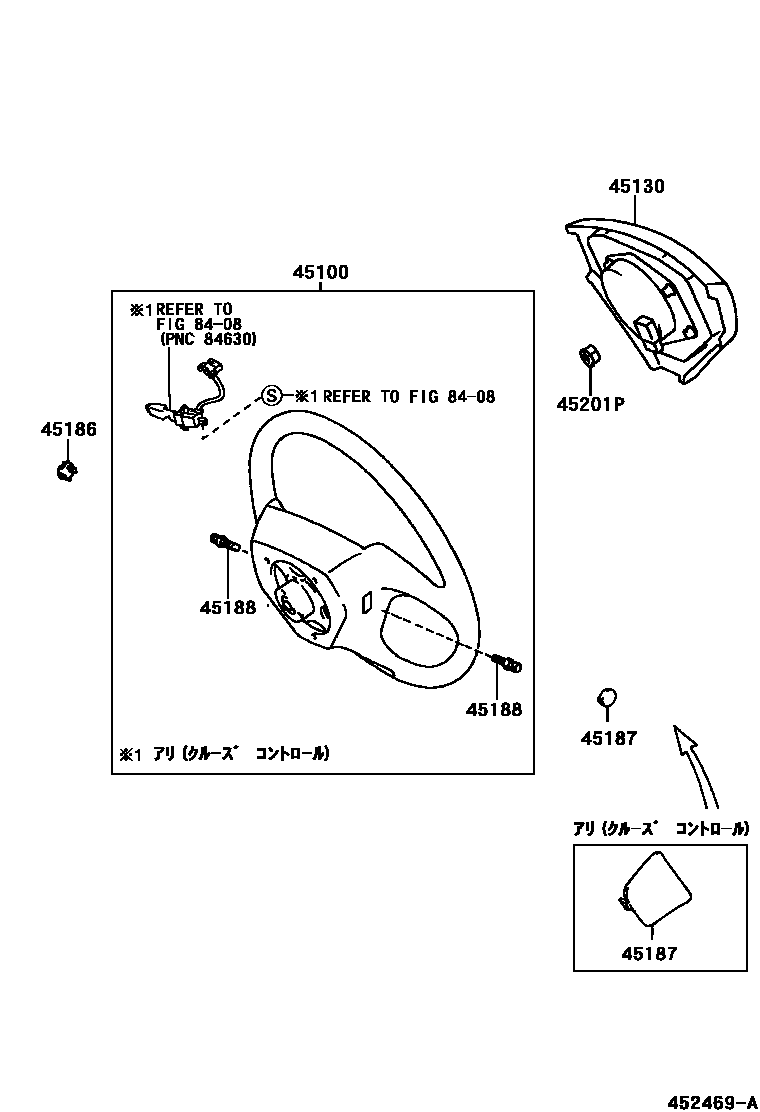

Parts diagram

45100WHEEL ASSY, STEERING

main45100-48150-B0i200011-200308

main45100-48150-C0i200011-200308

main45100-48160-B0i200011-200308

main45100-48170-C0i200011-200308

main45100-48180-B0i200011-200308

main45100-48180-C0i200011-200308

main45100-48190-C0i200011-200308

main45100-48240-C0i200201-200212

main45100-48250-C0i200201-200212

main45100-48320-B1i200308-200705

main45100-48320-C1i200308-200705

main45100-48330-B1i200308-200705

main45100-48330-C1i200308-200705

main45100-48340-B0i200308-200705

main45100-48340-C0i200308-200705

main45100-48350-B0i200308-200705

main45100-48350-C0i200308-200705

45130BUTTON ASSY, HORN

main45130-22510-B0i200011-200308

SADDLE GRAY,TRIM14

main45130-22510-C0i200011-200308

BLACK,TRIM15

main45130-48120-B0i200308-200705

SADDLE GRAY,TRIM1#

main45130-48120-C0i200308-200705

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33050-B6i200308-200705

SADDLE GRAY,TRIM1#

main45186-33050-C0i200308-200705

BLACK,TRIM2#

main45186-44010-B8i200011-200308

SADDLE GRAY,TRIM14

main45186-44010-C0i200011-200308

BLACK,TRIM15

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-33050-B6i200308-200705

SADDLE GRAY,TRIM1#

main45186-33050-C0i200308-200705

BLACK,TRIM2#

main45186-44010-B8i200011-200308

SADDLE GRAY,TRIM14

main45186-44010-C0i200011-200308

BLACK,TRIM15

main45187-48010-B1i200011-200308

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2i200011-200308

45201PNUT, STEERING WHEEL SET

main90179-12071i200011-200308

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

7 parts on this diagram · 2 diagrams in section
