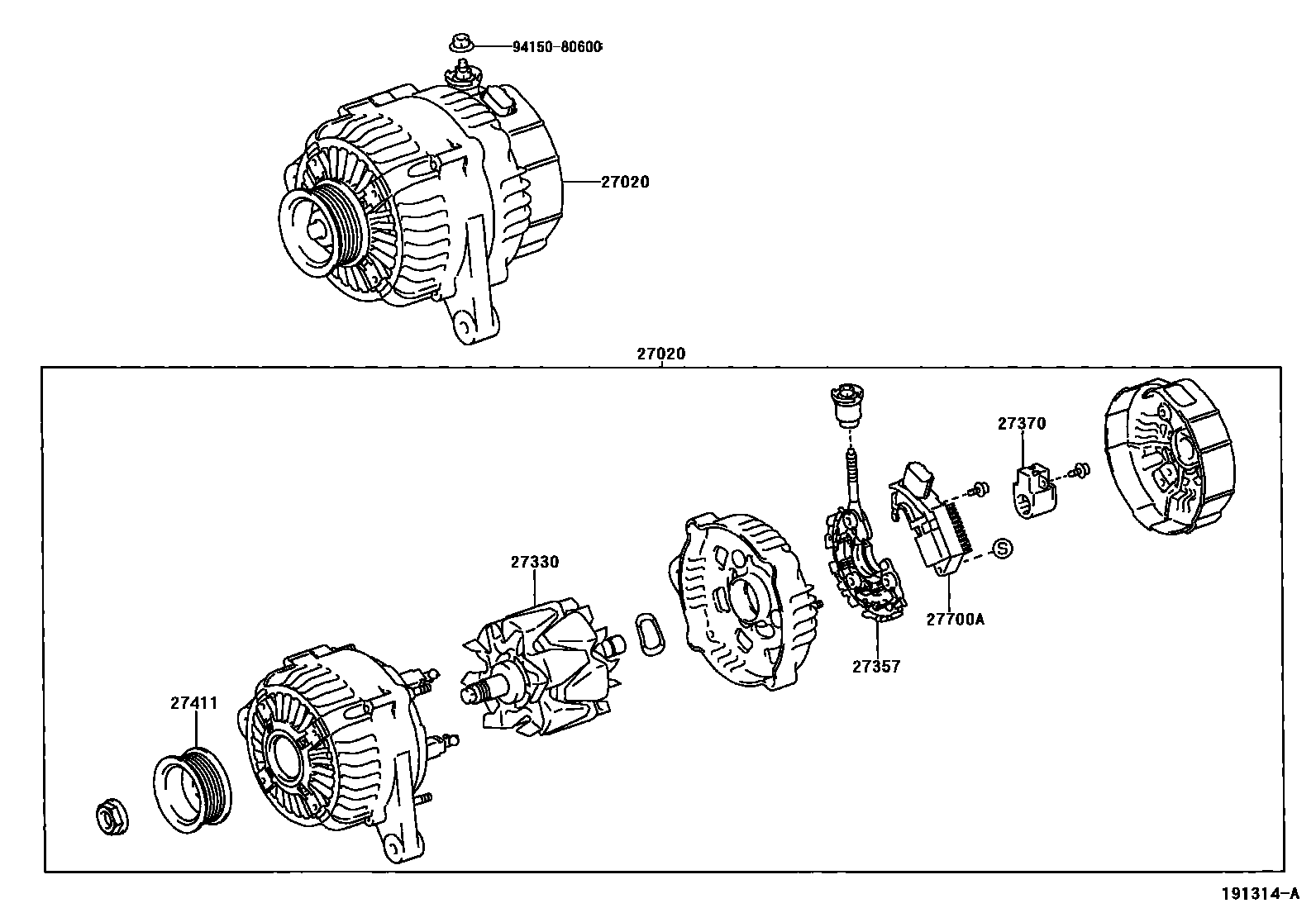

ALTERNATOR

0001 112V 100A 0002 112V 100A 0003 112V 100A 0004 112V 100A 0005 112V 130A

27020ALTERNATOR ASSY

main27060-20200i1MZFE..MCU2#200011-200308

main27060-20270i1MZFE..MCU2#200308

sub27060-20210

main27060-28100i2AZFE..ACU2#200011-200308

sub27060-28090

main27060-28190i2AZFE..ACU2#200308

main27060-28230i2AZFE..ACU2#200308

27330ROTOR ASSY, ALTERNATOR

main27330-20070i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

main27330-20130i2AZFE..ACU2#200308-200602

12V 130A

sub27330-33090

main27330-30070i1MZFE..MCU2#200308

12V 100A

main27330-33090i2AZFE..ACU2#200602

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-70450i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i2AZFE..ACU2#200308-200602

12V 130A

main27370-58460i1MZFE..MCU2#200308

12V 100A

main27370-75060i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

27411PULLEY, ALTERNATOR

main27411-28060i2AZFE..ACU2#200011-200308

main27411-46080i1MZFE..MCU2#200011-200308

27700AREGULATOR ASSY, GENERATOR

main27700-20050i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

9415080600

main94150-80600

7 parts on this diagram · 5 diagrams in section
