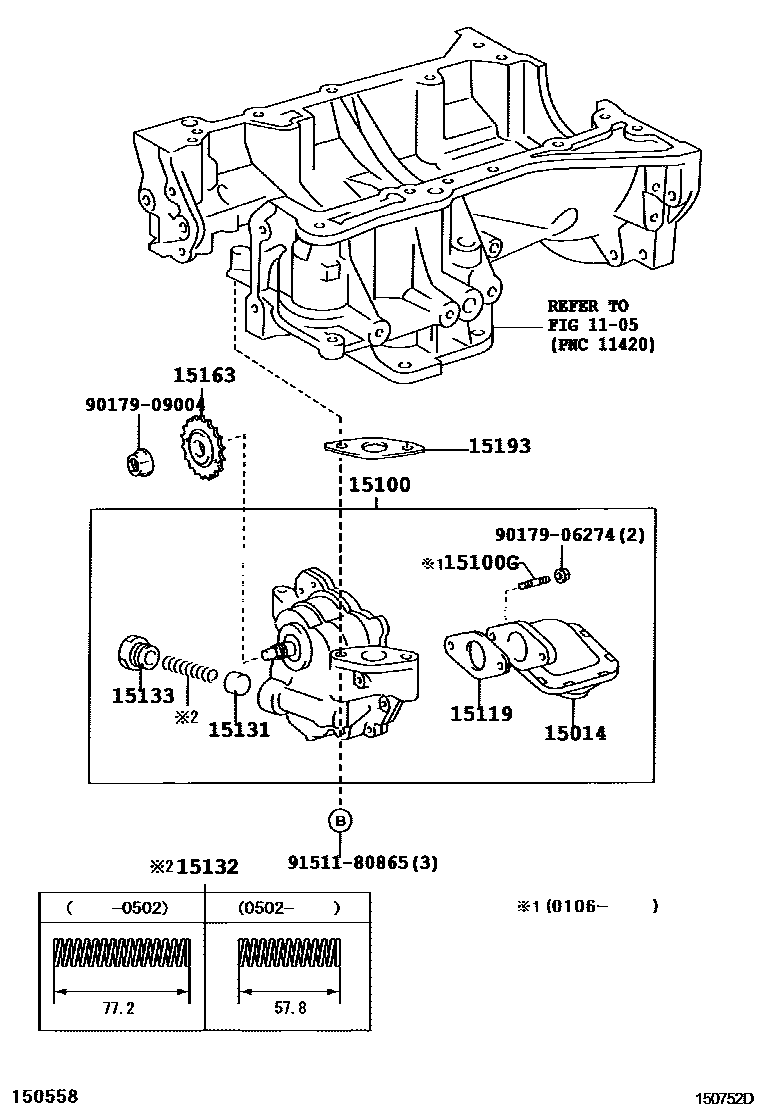

ENGINE OIL PUMP

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15014STRAINER SET, OIL PUMP

main15014-28020i2AZFE..ACU2#200308

15100PUMP ASSY, OIL

main15100-20050i1MZFE..MCU2#200308

main15100-28020i2AZFE..ACU2#200011-200308

15100GBOLT,STUD(FOR OIL PUMP)

main15183-28020×2iACU2#200106-200308

15119GASKET, OIL PUMP COVER

main15119-28020i2AZFE..ACU2#200011-200308

15131VALVE, OIL PUMP RELIEF

main15131-46040i1MZFE..MCU2#; 2AZFE..ACU2#200308

15132SPRING, OIL PUMP RELIEF VALVE

main15132-28020i2AZFE..ACU2#200011-200308

main15132-46020i2AZFE..ACU2#200502

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1MZFE..MCU2#200011-200308

main15133-28020i2AZFE..ACU2#200011-200308

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2AZFE..ACU2#200011-200308

15193GASKET, OIL PUMP

main15193-28010i2AZFE..ACU2#200011-200308

9017906274

main90179-06274

9017909004

main90179-09004

9151180865

main91511-80865

13 parts on this diagram · 2 diagrams in section
