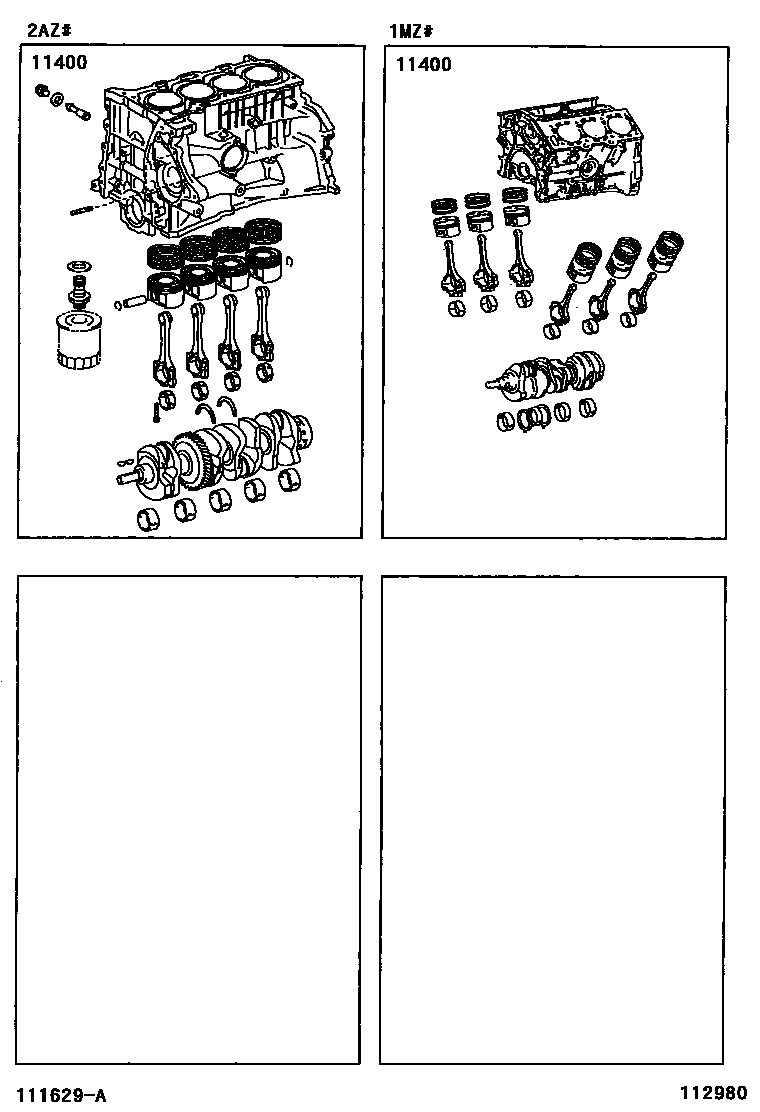

SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-20051i200308

main11400-20061i200308

main11400-28050i200308-200608

main11400-28311i200608

1 parts on this diagram · 1 diagram in section
