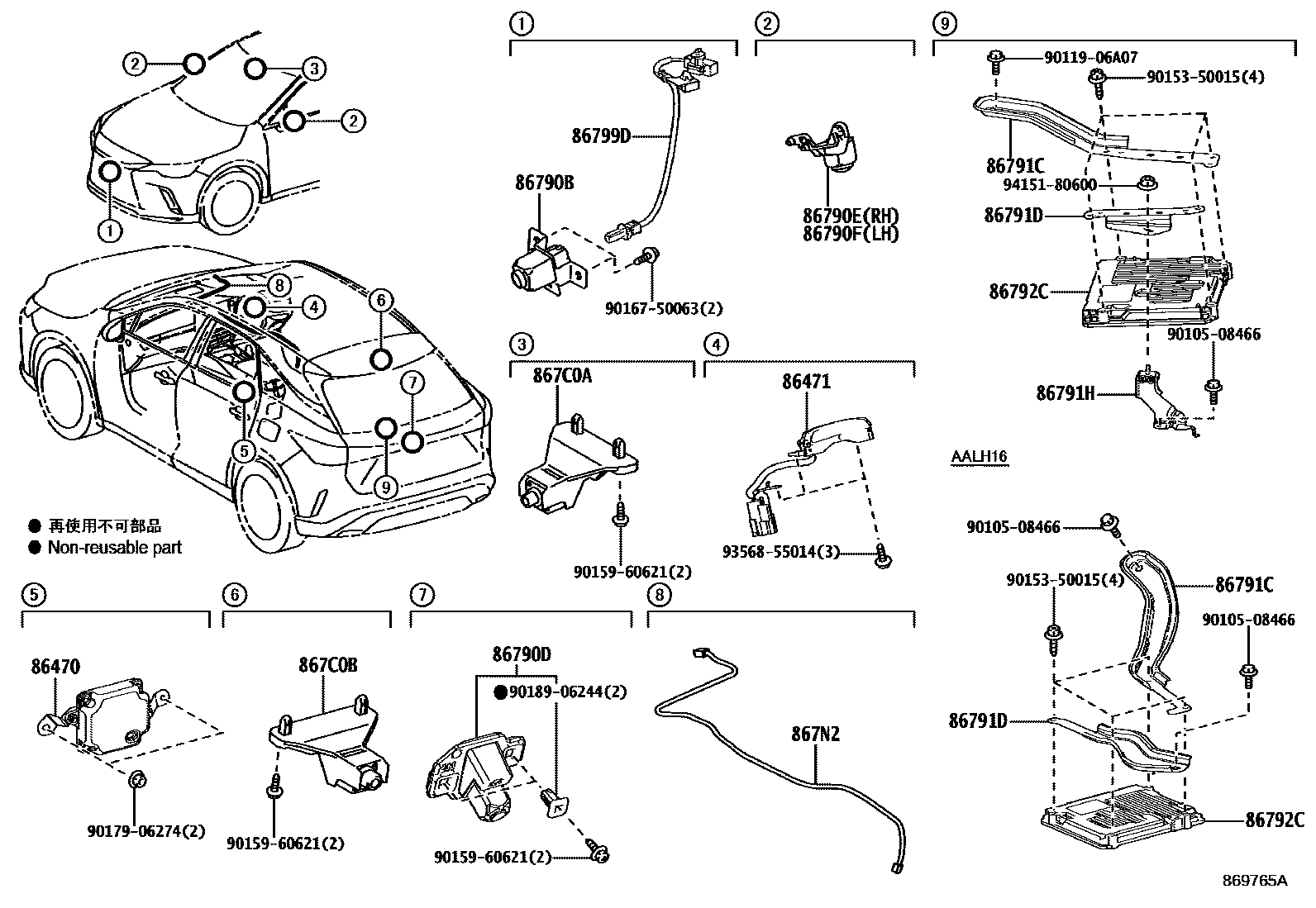

CAMERA & REAR MONITOR DISPLAY

86470COMPUTER ASSY, DRIVER MONITOR

main86470-48060iAALH1#,TALA1#,TALH17202410-202509

main86470-48010iAALH1#,TALA1#,TALH17202211-202309

main86470-48050iAALH1#,TALA1#,TALH17202309-202410

86471CAMERA, DRIVER MONITOR

main86471-48010iAALH1#,TALA1#,TALH17202410

86790BCAMERA ASSY, TELEVISION, FR

main86790-48300iAALH10,15,TALA1#,TALH17202410

86790DCAMERA ASSY, TELEVISION, RR

main86790-48260iAALH1#,TALA1#,TALH17202211

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-78080iAALH16202211

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-78070iAALH1#,TALA1#,TALH17202211

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-48040iAALH10,15,TALA1#,TALH17202211

main86791-48080iAALH16202211

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-48050iAALH10,15,TALA1#,TALH17202211

main86791-48090iAALH16202211

86791HBRACKET, COMPUTER PARKING ASSIST, NO.3

main86791-48060iAALH10,15,TALA1#,TALH17202211

86792CCOMPUTER, PARKING ASSIST

main86792-48790supersedes 86792-48710iAALH10,15,TALA1#,TALH17202211-202308

main86792-48B00supersedes 86792-48620iAALH10,15,TALA1#,TALH17202308-202410

main86792-48B01iAALH1#,TALA1#,TALH17202410

86799DWIRE, TELEVISION CAMERA, FRONT

main86799-48090iAALH16202211

867C0ACAMERA ASSY, INNER MIRROR, FR

main867C0-48050iAALH1#,TALA1#,TALH17202211

867C0BCAMERA ASSY, INNER MIRROR, RR

main867C0-48050iAALH1#,TALA1#,TALH17202211

867N2WIRE, DRIVE RECORDER, NO.1

main867N2-48070iAALH1#,TALA1#,TALH17202211

9010508466

main90105-08466

9011906A07

main90119-06A07

9015350015

main90153-50015

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018906244

main90189-06244

9356855014

main93568-55014

9415180600

main94151-80600

23 parts on this diagram · 1 diagram in section
