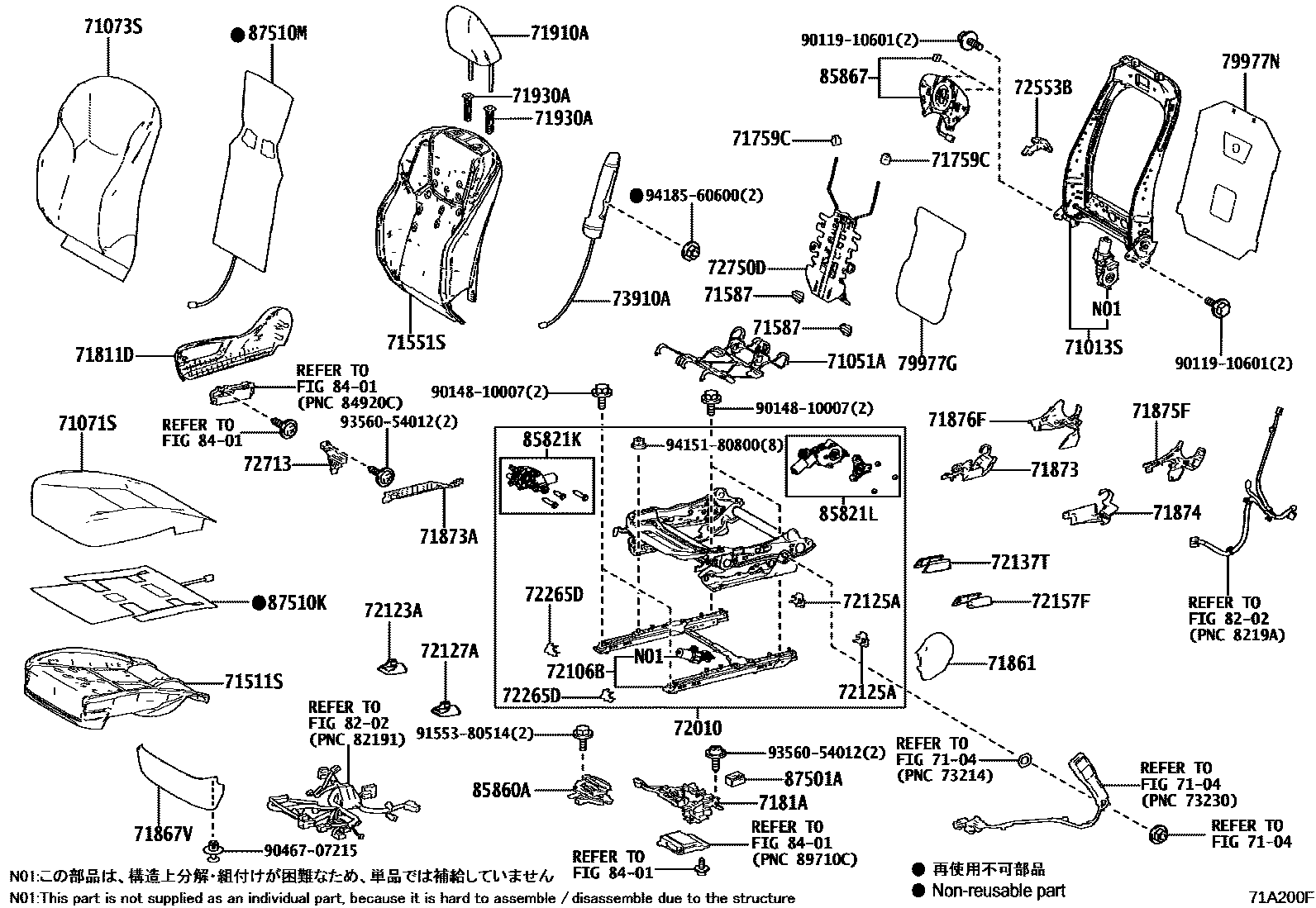

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE (8WAY) 0002 1PASSENGER SIDE (8WAY) 0003 1DRIVER SIDE (10WAY) 0004 1PASSENGER SIDE (10WAY) 0005 1DRIVER SIDE (8WAY F-SPORT) 0006 1PASSENGER SIDE (8WAY F-SPORT)

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-42270iTALH17202211

main71013-48200supersedes 71013-42270iAALH10,15,TALA1#202410

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iAALH1#,TALA1#,TALH17202211

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-48F00-A0iAALH16202211

FROMAGE,TRIM0#

main71071-48F00-C0iAALH10,15,TALA1#202410

BLACK,TRIM2#

main71071-48F00-E1supersedes 71071-48F70-E0iAALH10,15,TALA1#202410

DK.SEPIA,TRIM4#

main71071-48E80-A0iAALH10,15,TALA1#202211-202410

main71071-48E80-C0supersedes 71071-48F70-C0iAALH10,15,TALA1#202211-202410

main71071-48E80-E0iAALH10,15,TALA1#202211-202410

main71071-48E80-E1iAALH10,15,TALA1#202211-202410

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-48J50-A3iAALH16202211

FROMAGE,TRIM0#

main71073-48J50-C2iAALH10,15,TALA1#202410

BLACK,TRIM2#

main71073-48J50-E3iAALH10,15,TALA1#202410

DK.SEPIA,TRIM4#

main71073-48J20-C1supersedes 71073-48G90-C1iAALH10,15,TALA1#202211-202410

main71073-48J20-E2supersedes 71073-48G90-E1iAALH10,15,TALA1#202211-202410

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-48500supersedes 71511-78120iAALH10,15,TALA1#202410

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-48290supersedes 71551-78081iAALH10,15,TALA1#202410

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010×2iAALH1#,TALA1#,TALH17202211

71759CHOOK, FRONT SEATBACK, NO.1

main71759-50040×2iAALH1#,TALA1#,TALH17202211

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-78050-C0iAALH10,15,TALA10; TALA15202211-202410

BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-42010iAALH1#,TALA1#,TALH17202211

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iAALH10,15,TALA10; TALA15202211-202410

BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#

71867VSHIELD, FRONT SEAT CUSHION, FRONT RH

main71867-48090-C0iAALH10,15,TALA1#202410

BLACK,TRIM0#,2#,4#

main71867-78020-C0iAALH10,15,TALA10; TALA15202211-202410

BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-48190iAALH1#,TALA1#,TALH17202211

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-60160iAALH1#,TALA1#,TALH17202211

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-V1040iAALH1#,TALA1#,TALH17202211

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-48250-C0iAALH10,15,TALA10; TALA15202211-202410

BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-78050-C0iAALH1#,TALA10; TALH17202211

BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-48G00-A1×2iAALH10,15,TALA1#202410

FROMAGE,TRIM0#

main71910-48G00-C0×2iAALH16202211

BLACK,TRIM2#

main71910-48G00-E1×2iAALH10,15,TALA1#202410

DK.SEPIA,TRIM4#

main71910-48G20-A1×2iTALA15; TALH17202410

main71910-48G20-C1×2iTALA15; TALH17202211

main71910-48G20-D2×2iTALA15; TALH17202211

main71910-48F80-C1×2supersedes 71910-48F60-C1iAALH10,15,TALA1#202211-202410

main71910-48F80-E3×2supersedes 71910-48F60-E1iAALH10,15,TALA1#202211-202410

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-47050-C5×2iAALH16; TALH17202211

main71931-47030-C4×2iAALH16; TALH17202211

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-48330iTALH17202211

main72010-48340supersedes 72010-48330iAALH16202211

72106BRAIL SUB-ASSY, SEAT TRACK, UPPER RH

main72106-78020iAALH1#,TALA1#,TALH17202211

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-50020-C0iAALH1#,TALA1#,TALH17202211

BLACK

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-47020×4iAALH1#,TALA1#,TALH17202211

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-50020-C0iAALH1#,TALA1#,TALH17202211

BLACK

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iAALH1#,TALA1#,TALH17202211

72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH

main72157-47080iAALH1#,TALA1#,TALH17202211

72265DCOVER, SEAT TRACK UPPER RAIL

main72265-47020×4iAALH1#,TALA1#,TALH17202211

72553BPROTECTOR, RECLINING COVER, RH

main72553-52040-C0iAALH1#,TALA1#,TALH17202211

BLACK

72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

main72713-78010iAALH1#,TALA1#,TALH17202211

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-33130supersedes 72750-33150iAALH10,15,TALA1#202410

main72750-33150iTALH17202211

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-33090iAALH1#,TALA1#,TALH17202211

79977GFELT, FRONT SEATBACK, RH

main79977-76010iAALH10,15,TALA1#202211-202410

79977NFELT, SEATBACK

main79977-78020×2iAALH1#,TALA1#,TALH17202211

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85821KMOTOR ASSY, POWER SEAT TILT, RH

main85801-11020iAALH1#,TALA1#,TALH17202211

85821LMOTOR ASSY, POWER SEAT LIFTER, RH

main85801-11030iAALH1#,TALA1#,TALH17202211

85860ABLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

main85801-33020iTALH17202211

main85801-48110supersedes 85801-33020iAALH16202211

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-48050iAALH1#,TALA1#,TALH17202211

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-33010iAALH1#,TALA1#,TALH17202211

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-48300supersedes 87510-78210iAALH10,15,TALA1#202410

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-78190iAALH1#,TALA1#202211

9011910601

main90119-10601

9014810007

main90148-10007

9046707215

main90467-07215

9155380514

main91553-80514

9356054012

main93560-54012

9415180800

main94151-80800

9418560600

main94185-60600

50 parts on this diagram · 6 diagrams in section
