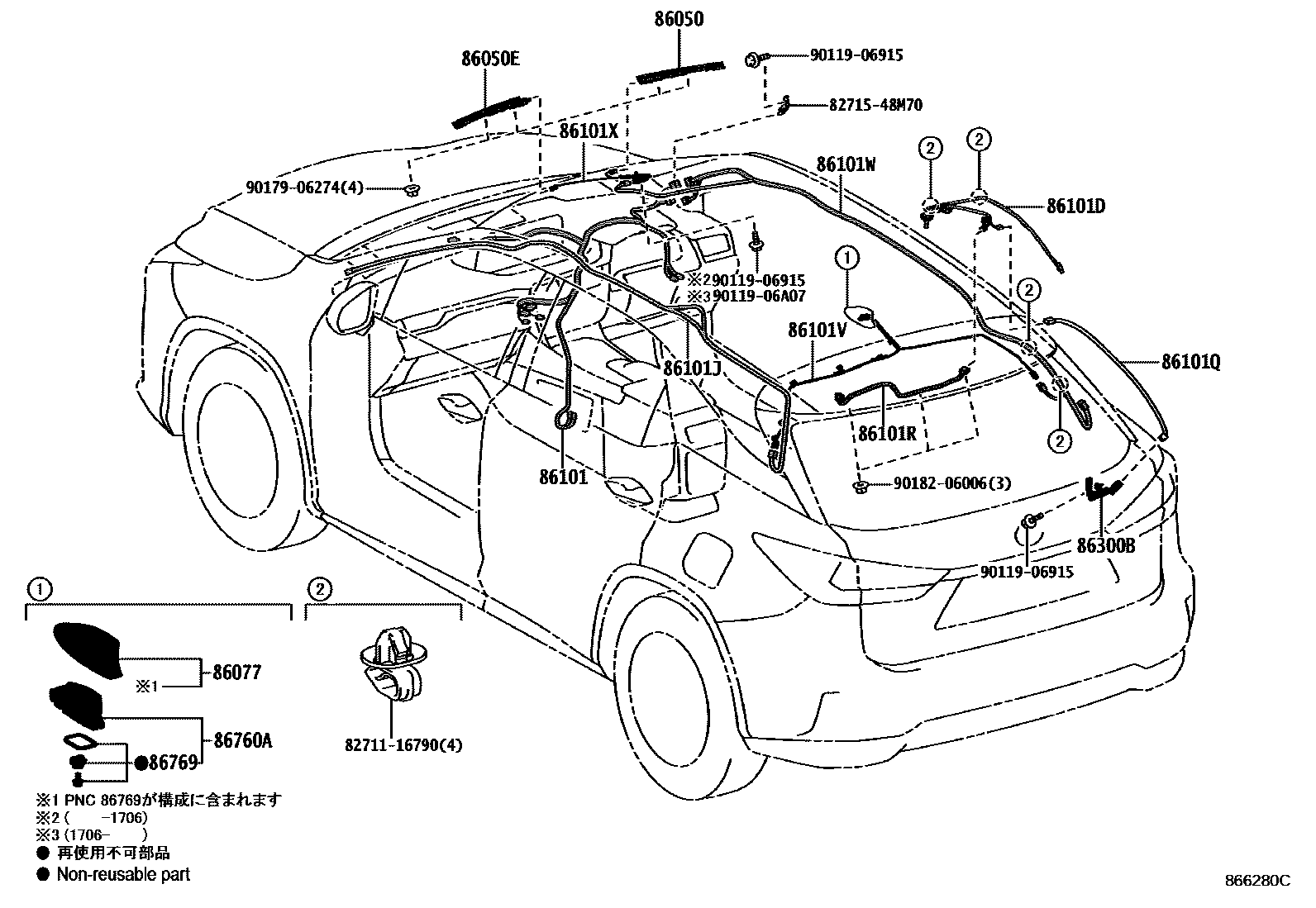

ANTENNA

0001 1 0002 1

86050ANTENNA ASSY, TELEVISION

main86050-48140iAGL2#,GYL2#201509-201908

86050EANTENNA ASSY, TELEVISION

main86050-48170iAGL2#,GYL2#201509-201908

86077COVER KIT, ANTENNA

main86077-48020-B1iAGL2#,GYL2#201509-201908

PLATINUM SILVER ME.,1J4

main86077-48020-E0iAGL2#,GYL2#201509-201908

SLEEK ECRU ME.,4U7

main86077-48020-E2iAGL2#,GYL2#201509-201908

AMBER CS.,4X2

main86077-48020-J1iAGL2#,GYL2#201608-201908

HEAT BLUE CONTRAST LAYERI,8X1

main86077-48040-E0iAGL2#,GYL2#201908-202109

AMBER CS.,4X2

main86077-48050-A0supersedes 86077-48040-A0iAGL2#,GYL2#201908

main86077-48050-A1supersedes 86077-48040-A1iAGL2#,GYL2#201908

main86077-48050-B1supersedes 86077-48040-B0iAGL2#,GYL2#201908

main86077-48050-B2supersedes 86077-48040-B2iAGL2#,GYL2#202107

main86077-48050-B3supersedes 86077-48040-B3iAGL2#,GYL2#202107

main86077-48050-C0supersedes 86077-48040-C0iAGL2#,GYL2#201908

main86077-48050-C1supersedes 86077-48040-C1iAGL2#,GYL2#201908

main86077-48050-D0supersedes 86077-48040-D0iAGL2#,GYL2#201908

main86077-48050-E0iAGL2#,GYL2#201908-202107

main86077-48050-E1supersedes 86077-48040-E1iAGL2#,GYL2#201908

main86077-48050-G0supersedes 86077-48040-G0iAGL2#,GYL2#201908

main86077-48050-J0supersedes 86077-48040-J0iAGL2#,GYL2#201908

main86077-48050-J1supersedes 86077-48040-J1iAGL2#,GYL2#201908

86101CORD SUB-ASSY, ANTENNA

main86101-48B50iAGL2#,GYL2#201712-201908

main86101-48M40iAGL2#,GYL2#201509-201712

main86101-48Y20iAGL2#,GYL2#201908

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-48B60iAGL2#,GYL2#201509-201908

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-48M30supersedes 86101-48M20iAGL2#,GYL2#201908

main86101-48M50supersedes 86101-48M20iAGL2#,GYL2#201509-201908

main86101-48M80supersedes 86101-48M20iAGL2#,GYL2#201509-201908

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-48Q90iAGL2#,GYL2#201509-201908

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-48F80iAGL2#,GYL2#201509-201908

86101VCORD SUB-ASSY, ANTENNA, NO.6

main86101-48E30supersedes 86101-48R10iAGL2#,GYL2#201509-201908

main86101-48W00supersedes 86101-48R10iAGL2#,GYL2#201908

86101WCORD SUB-ASSY, ANTENNA, NO.7

main86101-48M30iAGL2#,GYL2#201908

main86101-48M60iAGL2#,GYL2#201509-201908

main86101-48M80iAGL2#,GYL2#201908

86101XCORD SUB-ASSY, ANTENNA, NO.8

main86101-48E00iAGL2#,GYL2#201908

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-48380iAGL2#,GYL2#201509-201908

86760AANTENNA ASSY, TELEPHONE

main86760-48060supersedes 86760-62030iAGL2#,GYL2#201509-201601

main86760-48061supersedes 86760-62030iAGL2#,GYL2#201602-201908

main86760-62010supersedes 86760-62030iAGL2#,GYL2#201908

86769HOUSING, ROOF ANTENNA

main86769-48020supersedes 86769-62010iAGL2#,GYL2#201908

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8271548M70BRACKET,WIRING HARNESS CLAMP

main82715-48M70

9011906915

main90119-06915

9011906A07

main90119-06A07

9017906274

main90179-06274

9018206006

main90182-06006

20 parts on this diagram · 2 diagrams in section
