SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1������-�(1/2) 0004 1������-�(2/2) 0005 1��� 0006 1��� 0007 1������������(1/2) 0008 1������������(2/2) 0009 1������������(2/2) 0010 1������� 0011 1��� 0012 1���,�-� & ��� 0013 1�����-�� & ������� 0014 1����-�� & �������

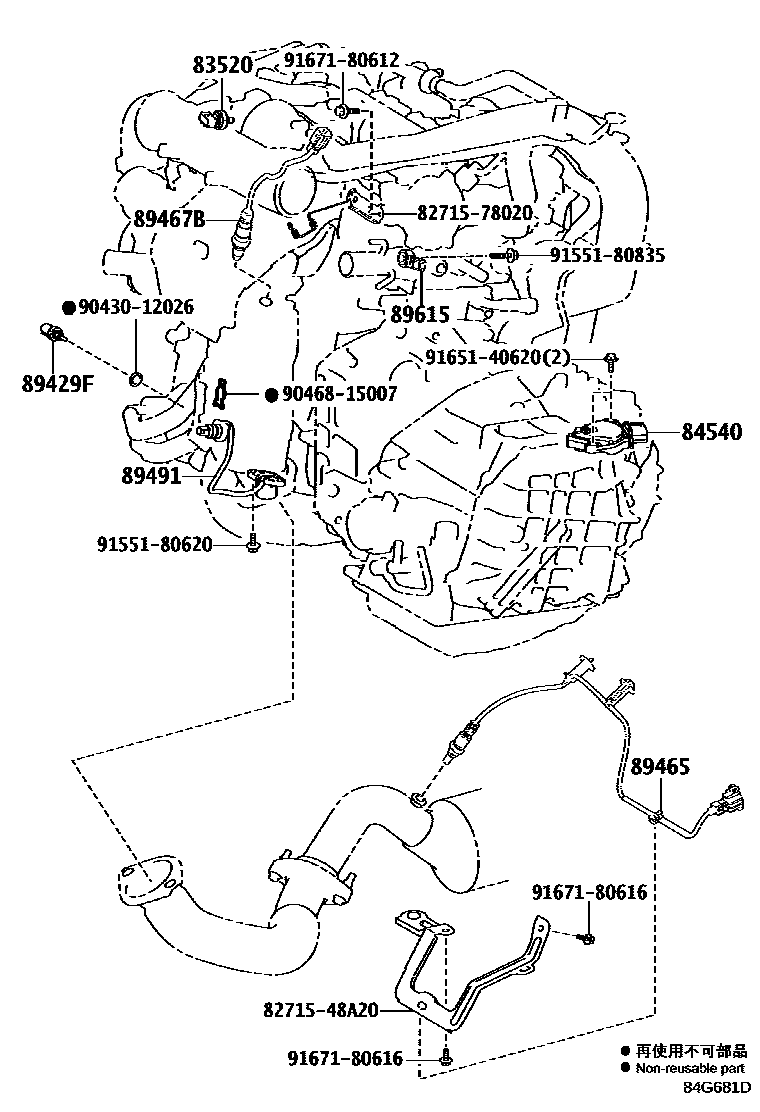

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iAGL2#201908

84540SWITCH ASSY, NEUTRAL START

main84540-33010iAGL2#201908

89429FSENSOR, TEMPERATURE

main89429-12010iAGL2#201908

89465SENSOR, OXYGEN

main89465-48410iGYL2#201510-201908

main89465-48420iAGL2#201509-201908

89467BSENSOR, AIR FUEL RATIO

main89467-48310iGYL2#201510-201908

main89467-78010iAGL2#201908

89491SENSOR, ENGINE OIL LEVEL

main89491-48020iGYL2#201510-201808

main89491-48021iGYL2#201809-201908

main89491-48040iGYL2#202005-202204

main89491-48041iGYL2#202205

main89491-78020iAGL2#201509-201808

main89491-78021iAGL2#201908

89615SENSOR, KNOCK CONTROL

main89615-20090iAGL2#201509-201908

8271548A20BRACKET,WIRING HARNESS CLAMP

main82715-48A20

8271578020BRACKET,WIRING HARNESS CLAMP

main82715-78020

9043012026

main90430-12026

9046815007

main90468-15007

9155180620

main91551-80620

9155180835

main91551-80835

9165140620

main91651-40620

9167180612

main91671-80612

9167180616

main91671-80616

16 parts on this diagram · 14 diagrams in section
