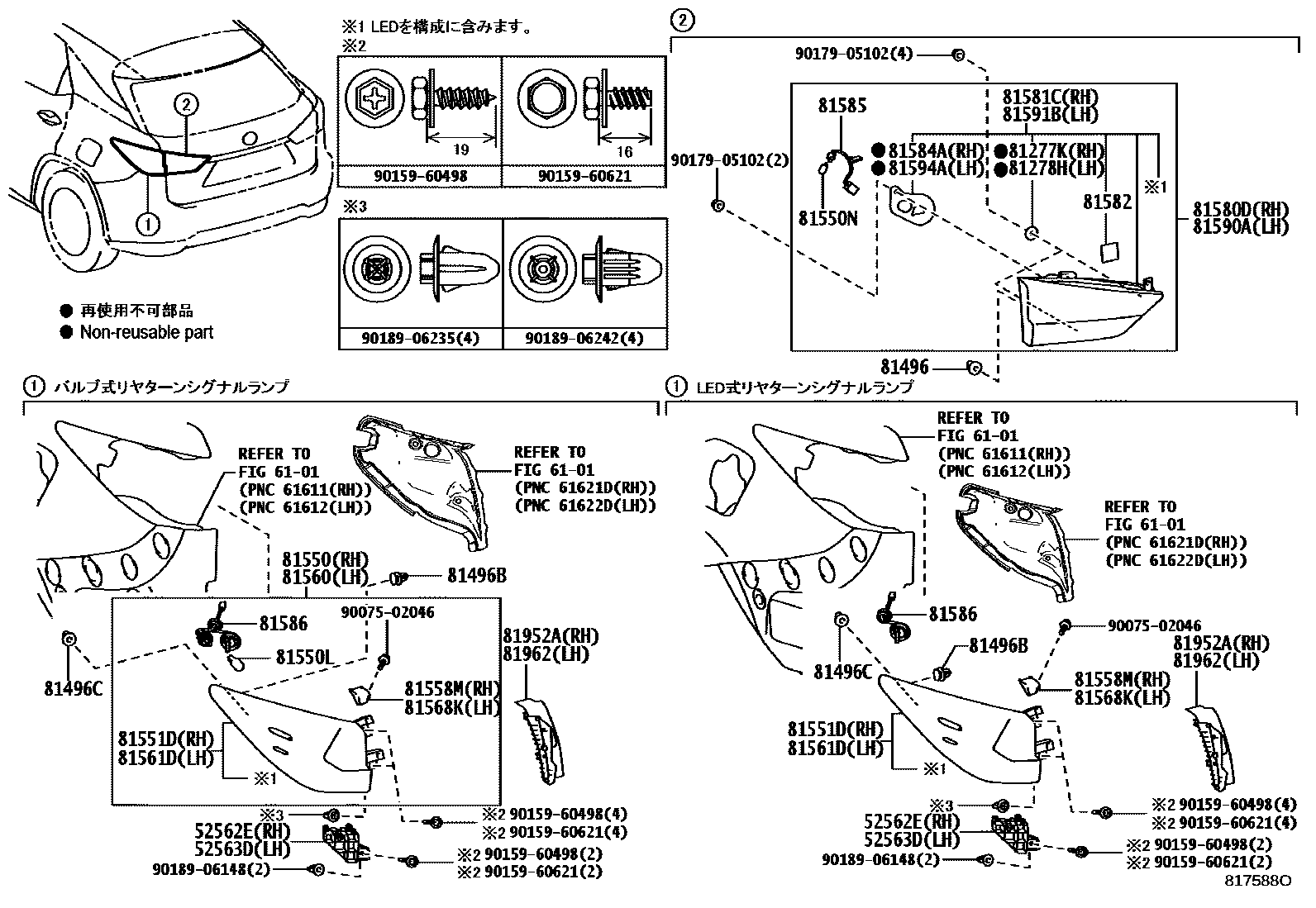

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-48020iAGL2#,GYL2#201509-202209

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-48020iAGL2#,GYL2#201509-201908

6101

81277KSHADE, LICENSE PLATE LAMP, RH

main81277-20240iAGL2#,GYL2#201509-201908

81278HSHADE, LICENSE PLATE LAMP, LH

main81277-20240iAGL2#,GYL2#201509-201908

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iAGL2#,GYL2#201509-201908

81496BGUIDE, REAR LAMP

main81496-60010iAGL2#,GYL2#201509-201908

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iAGL2#,GYL2#201509-201908

81550LAMP ASSY, REAR COMBINATION, RH

main81550-48350iAGL2#,GYL2#201509-201908

main81550-48470iAGL2#,GYL2#201908

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iAGL2#,GYL2#201509-201908

81550NBULB, BACK UP LAMP

main90981-11059iAGL2#,GYL2#201509-201908

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-48350iAGL2#,GYL2#201509-201908

81558MBRACKET, REAR COMBINATION LAMP, RH

main81558-48350iAGL2#,GYL2#201509-201908

81560LAMP ASSY, REAR COMBINATION, LH

main81560-48350iAGL2#,GYL2#201509-201908

main81560-48470iAGL2#,GYL2#201908

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-48350iAGL2#,GYL2#201509-201908

81568KBRACKET, REAR COMBINATION LAMP, LH

main81568-48350iAGL2#,GYL2#201509-201908

81580DLAMP ASSY, REAR, RH

main81580-48170iAGL2#,GYL2#201509-201904

sub81581-48171

sub81585-48170

sub90981-11059

main81580-48290iAGL2#,GYL2#201908

81581CLENS AND BODY, REAR LAMP, RH

main81581-48170iAGL2#,GYL2#201509-201905

sub81581-48171

main81581-48171iAGL2#,GYL2#201905-201908

81582GASKET, REAR LAMP

main81582-48170iAGL2#,GYL2#201806-201908

81584AGASKET, REAR LAMP RH

main81584-48170iAGL2#,GYL2#201509-201908

main81584-48310iAGL2#,GYL2#201908

81585SOCKET & WIRE, REAR LAMP

main81585-48170iAGL2#,GYL2#201509-201908

main81585-48310iAGL2#,GYL2#201908

81586CORD, REAR LAMP

main81555-48350iAGL2#,GYL2#201509-201908

81590ALAMP ASSY, REAR, LH

main81590-48170iAGL2#,GYL2#201509-201904

sub81591-48171

sub81585-48170

sub90981-11059

main81590-48290iAGL2#,GYL2#201908

81591BLENS AND BODY, REAR LAMP, LH

main81591-48170iAGL2#,GYL2#201509-201905

sub81591-48171

main81591-48171iAGL2#,GYL2#201905-201908

81594AGASKET, REAR LAMP LH

main81594-48170iAGL2#,GYL2#201509-201908

main81594-48310iAGL2#,GYL2#201908

81952ACOVER, REAR LAMP, RH

main81952-48020iAGL2#,GYL2#201509-201908

main81952-48030iAGL2#,GYL2#201908

81962COVER, REAR LAMP, LH

main81962-48020iAGL2#,GYL2#201509-201908

main81962-48030iAGL2#,GYL2#201908

9007502046

main90075-02046

9015960498

main90159-60498

9015960621

main90159-60621

9017905102

main90179-05102

9018906148

main90189-06148

9018906235

main90189-06235

9018906242

main90189-06242

34 parts on this diagram · 2 diagrams in section
