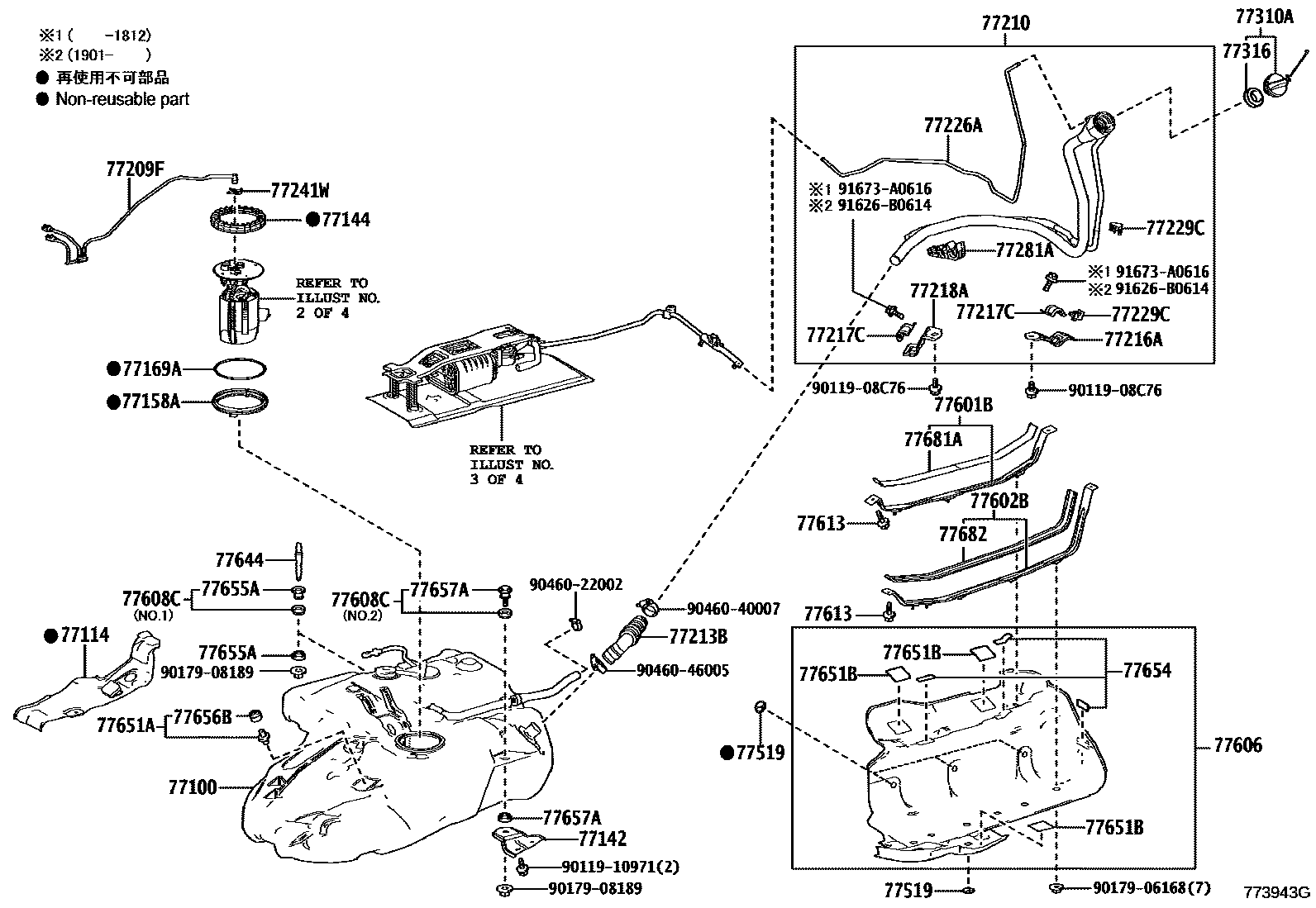

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1���������� 0004 1���������� 0005 1����� ����� 0006 1����� ����� 0007 1����� ����� 0008 1����� ����

77100TANK ASSY, FUEL

main77001-48200iAGL2#201509-201605

main77001-48201iAGL2#201908

main77001-48210iGYL2#201510-201603

main77001-48211iGYL2#201908-202209

77114PLATE, FUEL TANK SIDE, REAR

main77114-48040iAGL2#201509-201908

77142BRACKET, FUEL TANK MOUNTING, REAR

main77142-48010iAGL2#201509-201908

77144RETAINER, FUEL PUMP GAUGE

main77144-48020iAGL2#201509-201908

77158ASUPPORT, TANK SUCTION TUBE

main77158-48020iAGL2#201509-201908

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33030iGYL2#201908

main77169-48040iAGL2#201509-201908

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-48130iGYL2#201510-201703

main77209-48140iAGL2#201509-201908

main77209-48190iGYL2#201704-201805

77210PIPE ASSY, FUEL TANK FILLER

main77210-48340iAGL2#201509-201908

main77210-48370iGYL2#201908

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-48110iAGL2#201908

main77213-48120iGYL2#201908

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-48060iAGL2#201908

main77216-48090iGYL2#201510-201908

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-48060×2iAGL2#201509-201908

main77217-48090×2iGYL2#201510-201908

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-48090iAGL2#201908

main77218-48120iGYL2#201908

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-48160iAGL2#201908

main77226-48190iGYL2#201510-201908

77229CCLAMP, BREATHER TUBE

main77229-48050×2iAGL2#,GYL2#201509-201908

77241WCLIP, TUBE JOINT

main77241-33011iAGL2#,GYL2#201509-201908

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-48130iAGL2#201509-201908

77281ACLAMP, FUEL FILLER PIPE

main77281-48090iAGL2#201509-201908

main77281-48110iGYL2#201908

77310ACAP ASSY, FUEL TANK

main77300-12020iAGL2#,GYL2#201908

77316GASKET, FUEL TANK CAP

main77316-52040iAGL2#,GYL2#201509-201908

77519SPACER, FUEL TANK BRACKET

main77529-48010×4iAGL2#201509-201908

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-48190iAGL2#201509-201908

main77601-48200iGYL2#201510-201908

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-48180iAGL2#201908

main77602-48200iGYL2#201510-201908

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-48140iAGL2#201908

main77606-48150iGYL2#201908

77608CCUSHION SET, FUEL TANK

main77608-48011iAGL2#201908

main77608-48040iAGL2#201509-201908

77613BOLT, FUEL TANK BAND SET

main90119-10971×4iAGL2#,GYL2#201509-201908

77644BOLT, FUEL TANK

main77644-48010iAGL2#201509-201908

77651ACUSHION, FUEL TANK, NO.1

main77651-12070×3iGYL2#201510-201908

main77651-48020iAGL2#201908

77651BCUSHION, FUEL TANK

main77651-12070×3iAGL2#201509-201510

77654CUSHION, FUEL TANK, NO.2

main77652-48020iAGL2#201509-201908

77655ACUSHION, FUEL TANK, NO.5

main77655-48011×2iAGL2#201509-201908

77656BCUSHION, FUEL TANK, NO.6

main77656-48020iAGL2#201509-201908

77657ACUSHION, FUEL TANK, NO.5

main77655-48020×2iAGL2#201509-201908

77681ASEAT, FUEL TANK BAND

main77681-48050iAGL2#201509-201908

main77681-60200iGYL2#201908

77682SEAT, FUEL TANK BAND, LH

main77681-48090iGYL2#201908

main77682-48050iAGL2#201908

9011908C76

main90119-08C76

9011910971

main90119-10971

9017906168

main90179-06168

9017908189

main90179-08189

9046022002

main90460-22002

9046040007

main90460-40007

9046046005

main90460-46005

91626B0614

main91626-B0614

91673A0616

main91673-A0616

43 parts on this diagram · 8 diagrams in section
