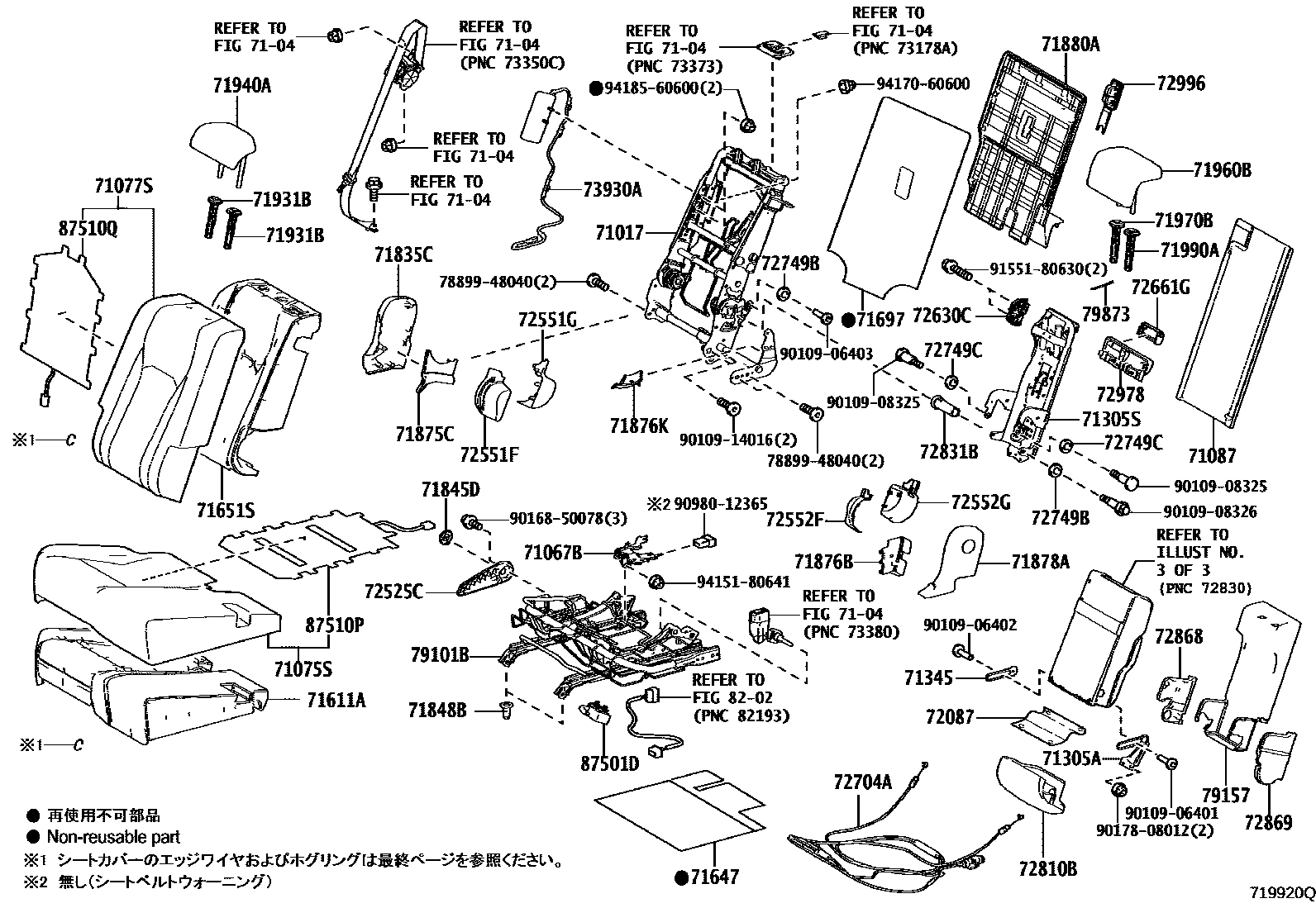

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
7104SEAT BELT & CHILD RESTRAINT SEAT
71067BPLATE SUB-ASSY, REAR SEAT LEG, RH
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
71087BOARD SUB-ASSY, REAR SEATBACK
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71305SFRAME SUB-ASSY, CENTER SEATBACK
71345HINGE, REAR SEATBACK
71611APAD, REAR SEAT CUSHION, RH
71647PROTECTOR, REAR SEAT CUSHION EDGE
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71697PROTECTOR, REAR SEATBACK EDGE
71835CMOULDING, REAR SEATBACK, RH
IVORY,TRIM04
BLACK,TRIM0#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM04,5#,6#
71845DCAP, REAR SEAT COVER, RH
IVORY,TRIM04
BLACK,TRIM0#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM04,5#,6#
71848BCAP, SEAT ADJUSTER COVER, RH
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
IVORY,TRIM04
BLACK,TRIM0#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM04,5#,6#
71876BCOVER, RECLINING ADJUSTER INSIDE, LH
IVORY,TRIM04
BLACK,TRIM04,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
71876KCOVER, RECLINING ADJUSTER INSIDE, LH
IVORY,TRIM04
BLACK,TRIM04,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM5#
71878ACOVER, REAR SEAT RECLINING, INNER RH
IVORY,TRIM04
BLACK,TRIM0#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM5#
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
71960BHEADREST ASSY, REAR SEAT, CENTER
71970BSUPPORT ASSY, REAR SEAT HEADREST, RH
IVORY,TRIM04
BLACK,TRIM2#
BLACK,TRIM2#
71990ASUPPORT ASSY, REAR SEAT HEADREST, LH
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
72087COVER, REAR SEAT CENTER ARMREST, NO.1
72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
IVORY,TRIM04
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM04,5#,6#
72551FCOVER, RECLINING LINK, RH NO.1
72551GCOVER, RECLINING LINK, RH NO.2
72552FCOVER, RECLINING LINK, LH NO.1
72552GCOVER, RECLINING LINK, LH NO.2
72630CLOCK ASSY, REAR SEATBACK, RH
72661GLEVER, REAR SEATBACK LOCK
IVORY,TRIM0#
WHITE,TRIM05,06
BLACK,TRIM1#,2#
DK.ROSE,TRIM3#; DK.ROSE,TRIM30,31
NOBLE BROWN,TRIM04,50,51,52,53,54,6#
TOPAZ BROWN,TRIM50,51,52,53
72704ACABLE, REAR SEAT RECLINING CONTROL
72749BSPACER, REAR SEAT RECLINING, NO.1
72749CSPACER, REAR SEAT RECLINING, NO.2
72810BARMREST ASSY, NO.1 SEAT
72831BPLATE, REAR SEAT CENTER ARMREST, NO.1
72868COVER, CENTER ARMREST HINGE, RH
IVORY,TRIM00,01,02,03,04
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
72869COVER, CENTER ARMREST HINGE, LH
IVORY,TRIM00,01,02,03,04
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
72978COVER, NO.2 CENTER SEATBACK
IVORY,TRIM0#
WHITE,TRIM05,06
BLACK,TRIM05,06,2#,30,31,4#; BLACK,TRIM2#,4#
DK.ROSE,TRIM3#; DK.ROSE,TRIM30,31
NOBLE BROWN,TRIM04,50,51,52,53,54,6#
TOPAZ BROWN,TRIM50,51,52,53
72996COVER, REAR SEATBACK, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
73930AAIRBAG ASSY, REAR SEAT, RH
79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
79157COVER, NO.1 SEATBACK
IVORY,TRIM00,01,02,03,04
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM5#,6#
79873WIRE, FOLD SEATBACK
8202WIRING & CLAMP
87501DCONTROL SUB-ASSY, SEAT HEATER
87510PHEATER ASSY, SEAT
87510QHEATER ASSY, SEAT
7889948040BOLT, FRONT SEAT
main78899-48040
9010906401
main90109-06401
9010906402
main90109-06402
9010906403
main90109-06403
9010908325
main90109-08325
9010908326
main90109-08326
9010914016
main90109-14016
9016850078
main90168-50078
9017808012
main90178-08012
9098012365
main90980-12365
9155180630
main91551-80630
9415180641
main94151-80641
9417060600
main94170-60600
9418560600
main94185-60600
65 parts on this diagram · 11 diagrams in section
