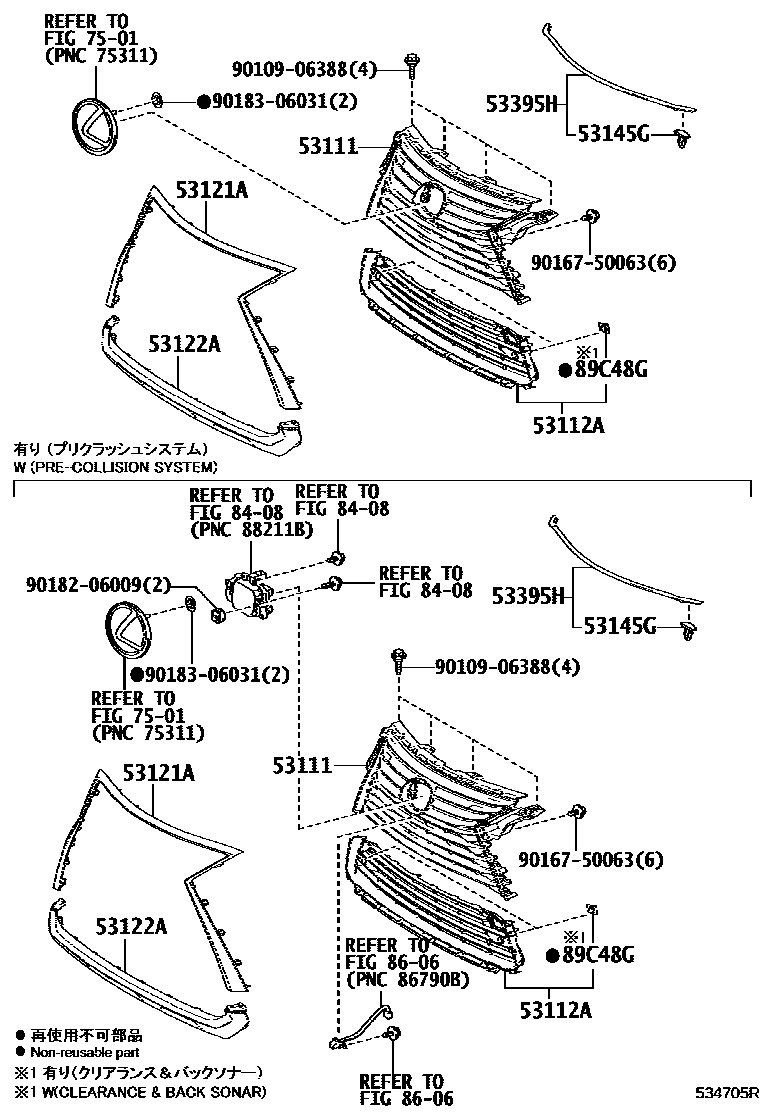

RADIATOR GRILLE

0001 1 0002 1F SPORT 0003 1 0004 1F SPORT

53111GRILLE, RADIATOR

main53111-48330iAGL2#,GYL2#201712-201908

main53111-48340iAGL20,GYL20201608-201712

main53111-48350iAGL20,GYL20201608-201712

main53111-48360iAGL2#,GYL2#201712-201908

main53111-48490supersedes 53111-48320iAGL2#,GYL2#201809-201908

main53111-48500supersedes 53111-48320iAGL2#,GYL2#201809-201908

53112AGRILLE, RADIATOR, LOWER

main53112-48230iAGL20,GYL20201608-201908

main53112-48380supersedes 53112-48901iAGL2#,GYL2#201809-201908

main53112-48390supersedes 53112-48901iAGL2#,GYL2#201809-201908

main53112-48902iAGL2#,GYL2#201712-201908

53121AMOULDING, RADIATOR GRILLE

main53121-48130iAGL2#,GYL2#201509-201908

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-48050iAGL2#,GYL2#201509-201908

main53122-48070iAGL25,GYL25201509-201908

53145GCLIP, RADIATOR GRILLE

main53145-60030×16iAGL2#,GYL2#201509-201908

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-48080iAGL2#,GYL2#201509-201908

main53395-48100iAGL2#,GYL2#201908

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

main00000-00000×2iAGL25,GYL25201509-201908

main89348-48040iAGL2#,GYL2#201509-201908

main89348-48050iAGL2#,GYL2#201509-201908

9010906388

main90109-06388

9016750063

main90167-50063

9018206009

main90182-06009

9018306031

main90183-06031

14 parts on this diagram · 4 diagrams in section
