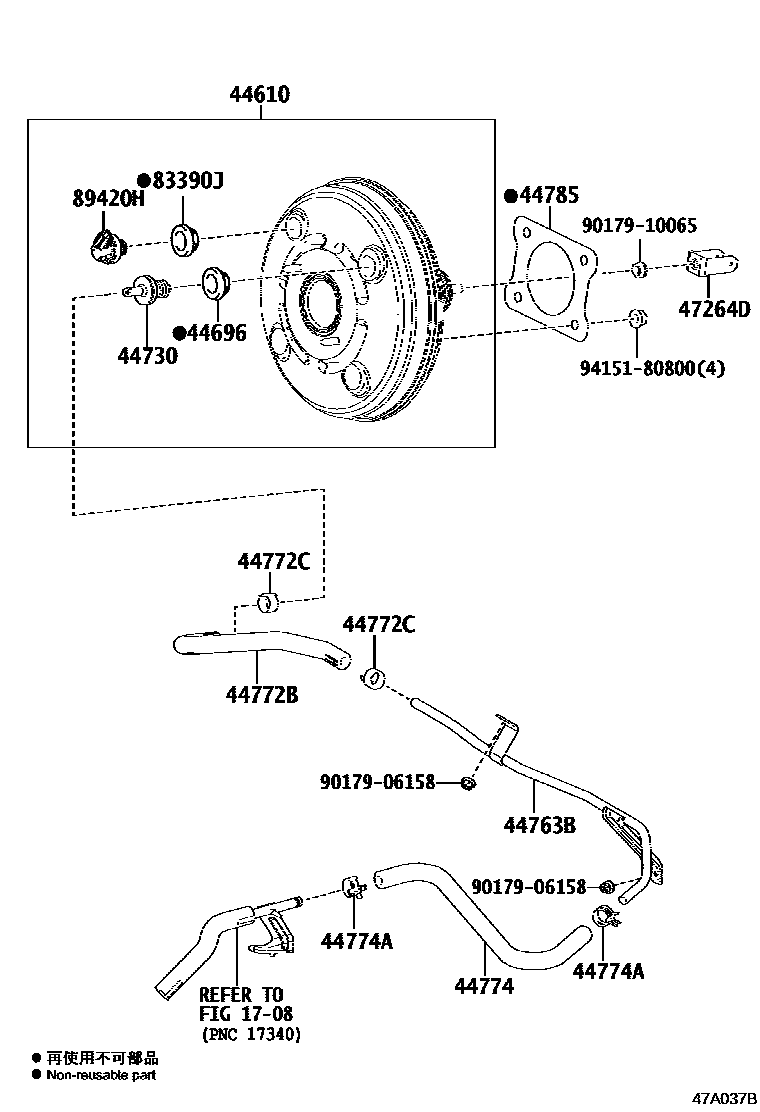

BRAKE BOOSTER & VACUUM TUBE

1708VACUUM PIPING

→ Go to FIG 17-08

44610BOOSTER ASSY, BRAKE

main44610-48461iAGL2#201509-201908

44696GROMMET, CHECK VALVE

main90480-24439iAGL2#201509-201908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iAGL2#201509-201908

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44763-48020iAGL2#201509-201908

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-48050iAGL2#201509-201908

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014×2iAGL2#201509-201908

44774HOSE, UNION TO CONNECTOR TUBE

main44774-48130iAGL2#201509-201908

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iAGL2#201509-201908

44785GASKET, BRAKE BOOSTER

main44785-12040iAGL2#201509-201908

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iAGL2#201509-201908

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iAGL2#201509-201908

89420HSENSOR ASSY, VACUUM

main89421-52020iAGL2#201509-201908

9017906158

main90179-06158

9017910065

main90179-10065

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
