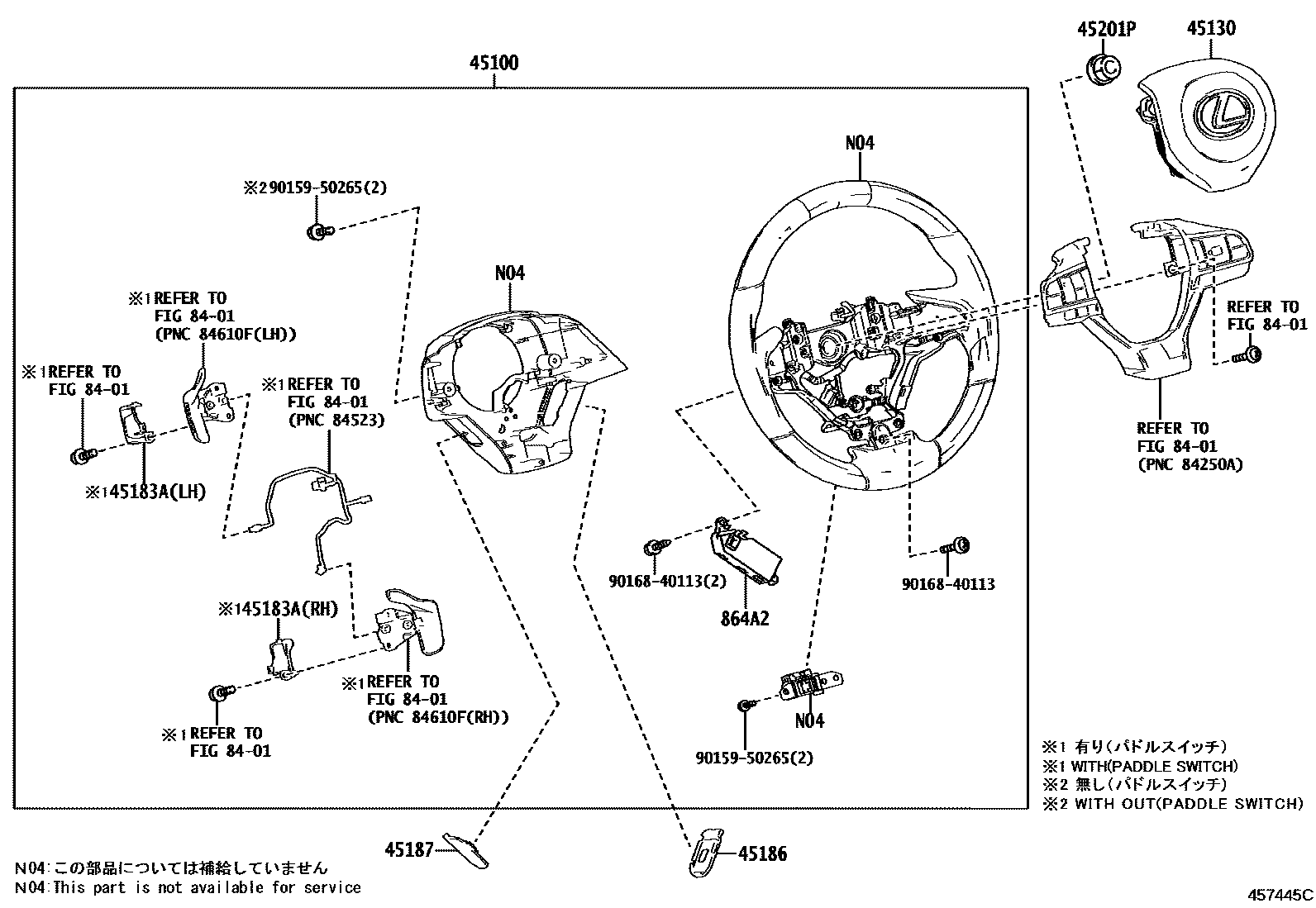

STEERING WHEEL
45100WHEEL ASSY, STEERING
45130BUTTON ASSY, HORN
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
45183ACOVER, STEERING WHEEL BOSS, LOWER NO.1
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
864A2COMPUTER, STEERING VIBRATION
9015950265
main90159-50265
9016840113
main90168-40113
10 parts on this diagram · 1 diagram in section
