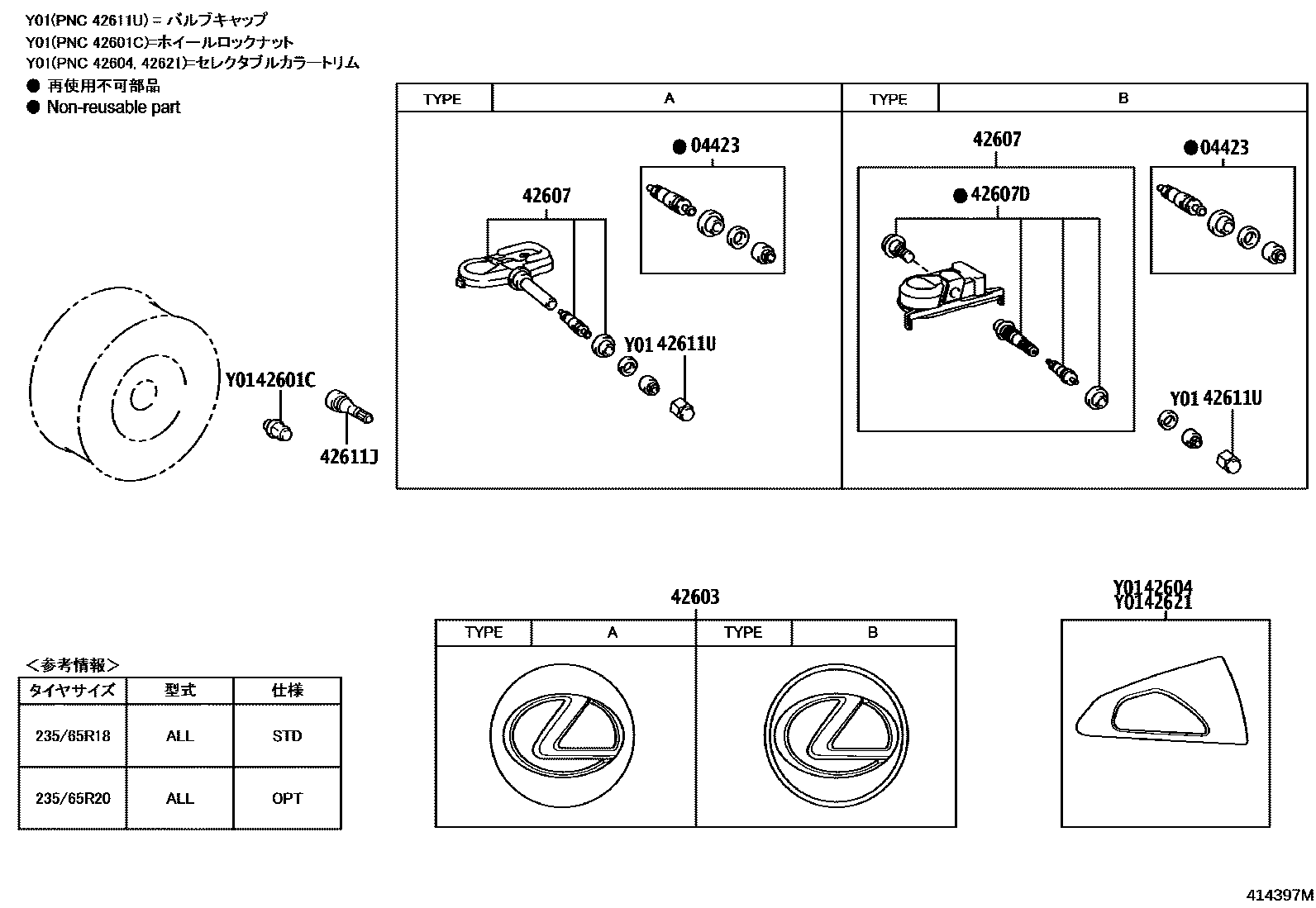

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4iAGL2#,GYL2#201908

42601WHEEL, DISC

main42611-48810×4iAGL2#,GYL2#201509-201712

main42611-48A30×4iAGL2#,GYL2#201605-201712

main4261A-48180×4iAGL2#,GYL2#201712-201908

main4261A-48200×4iAGL2#,GYL2#201712-201801

main42611-48830×4supersedes 42611-48A90iAGL2#,GYL2#201509-201908

main42611-48850×4supersedes 42611-48A90iAGL2#,GYL2#201509-201907

main42611-48851×4supersedes 42611-48A90iAGL2#,GYL2#201908

main42611-48890×4supersedes 42611-48A90iAGL2#,GYL2#201509-201908

main42611-48A60×4supersedes 42611-48A90iAGL2#,GYL2#201809-201908

main42611-48B10×4iAGL2#,GYL2#201908-202107

main42611-48B20×4iAGL2#,GYL2#202107

main4261A-48160×4iAGL20,GYL20201608-201907

main4261A-48161×4supersedes 42611-48A90iAGL2#,GYL2#201908

main4261A-48230×4supersedes 42611-48A90iAGL2#,GYL2#201908

main4261A-48370×4supersedes 42611-48A90iAGL2#,GYL2#202107

main4261A-48380×4supersedes 42611-48A90iAGL2#,GYL2#202107

42601CNUT, HUB (FOR AXLE)

main90942-01115×20supersedes 90942-01033iAGL2#,GYL2#201809-201908

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50380×4iAGL2#,GYL2#201712-201908

main42603-30550×4supersedes 42603-50370iAGL2#,GYL2#201509-201712

main42603-53110×4iAGL25,GYL25201509-201908

42604WHEEL CAP SET

main42604-48010iAGL2#,GYL2#; AGL25,GYL25201509-201908

main42604-48020iAGL2#,GYL2#; AGL25,GYL25201509-201908

main42604-48030iAGL2#,GYL2#; AGL25,GYL25201509-201908

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-48010×4iAGL2#,GYL2#201509-201908

main42607-53020×4iAGL2#,GYL2#201908

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044×4iAGL2#,GYL2#201908

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAGL2#,GYL2#201908

42611UCAP, TIRE VALVE

main90942-05042×4iAGL2#,GYL2#201509-201908

42621CAP, WHEEL

main42602-48030×20iAGL2#,GYL2#201509-201908

main42602-48040×20iAGL2#,GYL2#; AGL25,GYL25201509-201908

main42602-48050×20iAGL2#,GYL2#; AGL25,GYL25201509-201908

main42602-48060×20iAGL2#,GYL2#; AGL25,GYL25201509-201908

10 parts on this diagram · 3 diagrams in section
