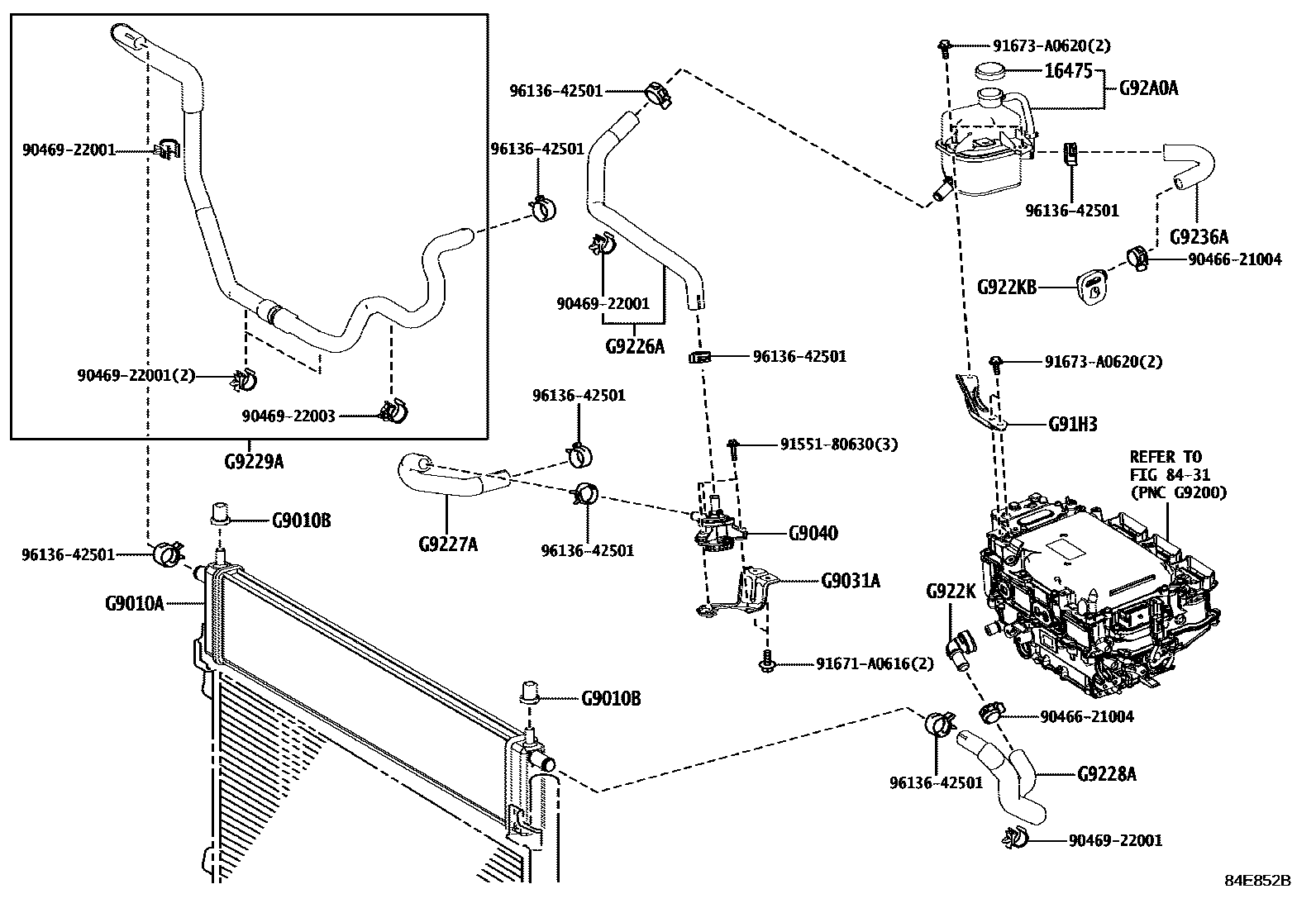

INVERTER COOLING

0001 1 0002 1

16475CAP, RESERVE TANK

main16475-28140i2ARFXE..AVU65201605-201705

main16475-37010i2ARFXE..AVU65201401-201410

main16475-37011i2ARFXE..AVU65201410-201605

8431HEV INVERTER

→ Go to FIG 84-31

G9010ARADIATOR ASSY

mainG901042020iAVU65201705

mainG901048080iAVU65201401-201705

G9010BCUSHION, INVERTER RADIATOR

main16716-37010×2iAVU65201705

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914148030iAVU65201401-201705

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048010iAVU65201401-201705

G91H3BRACKET, INVERTER RESERVE TANK, NO.2

mainG91H348010iAVU65201401-201705

G9226AHOSE, INVERTER COOLING, NO.2

mainG922648060iAVU65201705

G9227AHOSE, INVERTER COOLING, NO.3

mainG922748060iAVU65201401-201705

G9228AHOSE, INVERTER COOLING, NO.4

mainG922848010iAVU65201401-201705

G9229AHOSE, INVERTER COOLING, NO.5

mainG922948010iAVU65201401-201705

mainG922948020iAVU65201705

G922KCONNECTOR, HYBRID WATER HOSE

mainG922K47011iAVU65201401-201705

G922KBCONNECTOR, HYBRID WATER HOSE, NO.2

mainG922K33020iAVU65201401-201705

G9236AHOSE, INVERTER COOLING, NO.6

mainG923648010iAVU65201401-201705

mainG923678010iAVU65201812

G92A0ATANK ASSY, INVERTER RESERVE

mainG910F48010iAVU65201401-201409

mainG910F48011iAVU65201410-201604

mainG910F48012iAVU65201605-201705

mainG910F48013iAVU65201812

9046621004

main90466-21004

9046922001

main90469-22001

9046922003

main90469-22003

9155180630

main91551-80630

91671A0616

main91671-A0616

91673A0620

main91673-A0620

9613642501

main96136-42501

22 parts on this diagram · 2 diagrams in section
