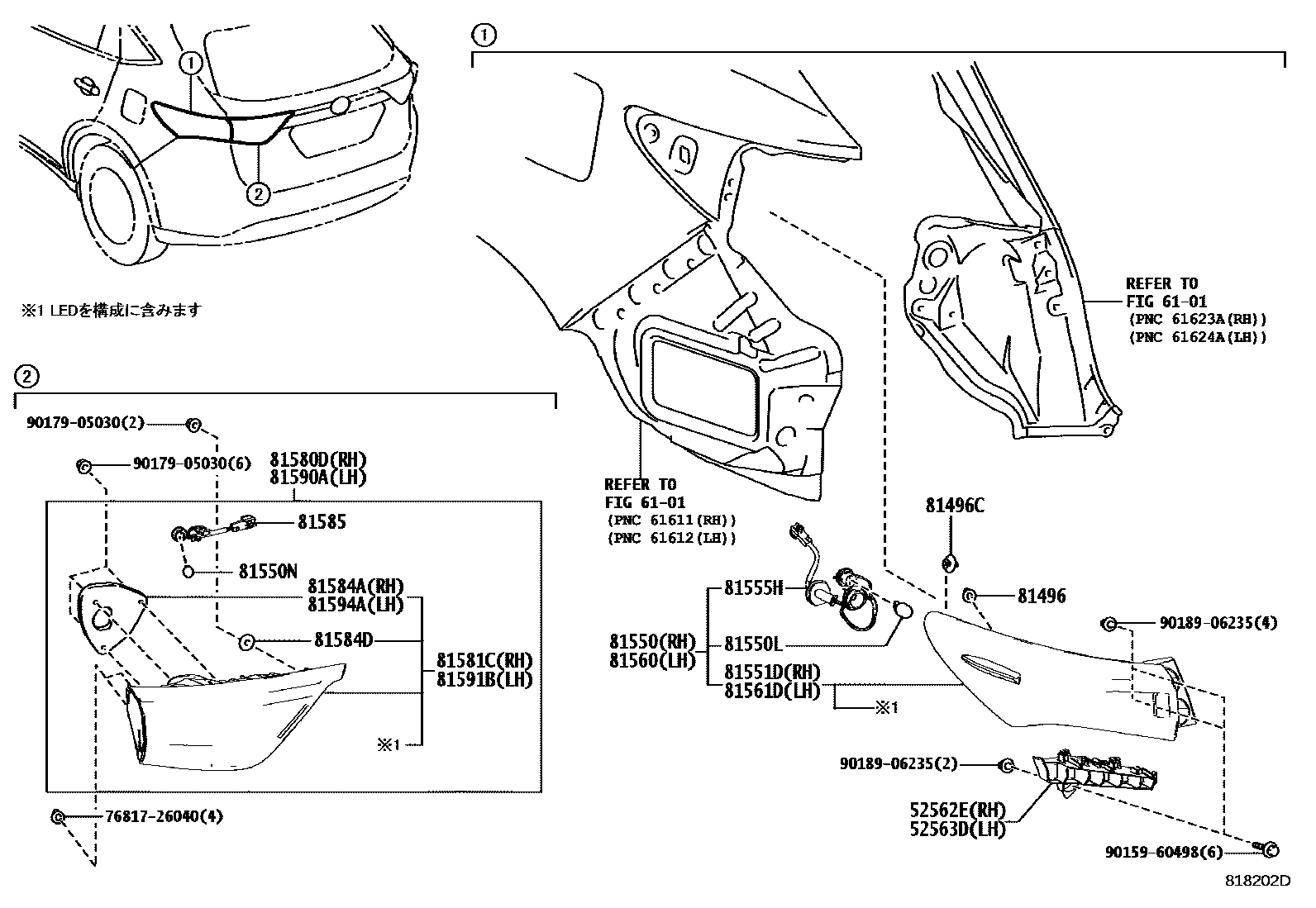

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-48010iASU6#,AVU65,ZSU6#201312-201705

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-48010iAVU65,ZSU6#201312-201705

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iAVU65,ZSU6#201312-201705

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iAVU65,ZSU6#201312-201705

81550LAMP ASSY, REAR COMBINATION, RH

main81550-48330iAVU65,ZSU6#201312-201406

sub81550-48331

main81550-48331iAVU65,ZSU6#201407-201504

sub81550-48332

main81550-48332iAVU65,ZSU6#201505-201705

main81550-48420iAVU65,ZSU6#201705-201907

sub81550-48421

main81550-48421iAVU65,ZSU6#201908

main81550-48430iASU6#201705-201907

sub81550-48431

main81550-48431iASU6#201908

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iAVU65,ZSU6#201312-201705

81550NBULB, BACK UP LAMP

main90981-11059iASU6#,AVU65,ZSU6#201312-201705

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-48330iAVU65,ZSU6#201312-201407

sub81551-48331

main81551-48331iAVU65,ZSU6#201407-201505

sub81551-48332

main81551-48332iAVU65,ZSU6#201505-201705

main81551-48420iAVU65,ZSU6#201705-201908

sub81551-48421

main81551-48421iAVU65,ZSU6#201908

main81551-48430iASU6#201705-201908

sub81551-48431

main81551-48431iASU6#201908

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main81555-48330iAVU65,ZSU6#201312-201705

81560LAMP ASSY, REAR COMBINATION, LH

main81560-48330iAVU65,ZSU6#201312-201406

sub81560-48331

main81560-48331iAVU65,ZSU6#201407-201504

sub81560-48332

main81560-48332iAVU65,ZSU6#201505-201705

main81560-48410iAVU65,ZSU6#201705-201907

sub81560-48411

main81560-48411iAVU65,ZSU6#201908

main81560-48420iASU6#201705-201907

sub81560-48421

main81560-48421iASU6#201908

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-48330iAVU65,ZSU6#201312-201407

sub81561-48331

main81561-48331iAVU65,ZSU6#201407-201505

sub81561-48332

main81561-48332iAVU65,ZSU6#201505-201705

main81561-48410iAVU65,ZSU6#201705-201908

sub81561-48411

main81561-48411iAVU65,ZSU6#201908

main81561-48420iASU6#201705-201908

sub81561-48421

main81561-48421iASU6#201908

81580DLAMP ASSY, REAR, RH

main81580-48140iAVU65,ZSU6#201312-201405

sub81580-48141

main81580-48141iAVU65,ZSU6#201406-201705

main81580-48240iAVU65,ZSU6#201705-201907

sub81580-48241

main81580-48241iAVU65,ZSU6#201908

main81580-48250iASU6#201705-201910

sub81580-48251

main81580-48251iASU6#201911

81581CLENS AND BODY, REAR LAMP, RH

main81581-48140iAVU65,ZSU6#201312-201406

sub81581-48141

main81581-48141iAVU65,ZSU6#201406-201705

main81581-48240iAVU65,ZSU6#201705-201908

sub81581-48241

main81581-48241iAVU65,ZSU6#201908

main81581-48250iASU6#201705-201911

sub81581-48251

main81581-48251iASU6#201911

81584AGASKET, REAR LAMP RH

main81584-48140iAVU65,ZSU6#201312-201705

main81584-48240iASU6#,AVU65,ZSU6#201705

81584DGASKET, REAR LAMP

main81584-22040iAVU65,ZSU6#201312-201705

81585SOCKET & WIRE, REAR LAMP

main81585-48140iAVU65,ZSU6#201312-201705

81590ALAMP ASSY, REAR, LH

main81590-48150iAVU65,ZSU6#201312-201405

sub81590-48151

main81590-48151iAVU65,ZSU6#201406-201705

main81590-48250iAVU65,ZSU6#201705-201907

sub81590-48251

main81590-48251iAVU65,ZSU6#201908

main81590-48260iASU6#201705-201910

sub81590-48261

main81590-48261iASU6#201911

81591BLENS AND BODY, REAR LAMP, LH

main81591-48150iAVU65,ZSU6#201312-201406

sub81591-48151

main81591-48151iAVU65,ZSU6#201406-201705

main81591-48250iAVU65,ZSU6#201705-201908

sub81591-48251

main81591-48251iAVU65,ZSU6#201908

main81591-48260iASU6#201705-201911

sub81591-48261

main81591-48261iASU6#201911

81594AGASKET, REAR LAMP LH

main81594-48150iAVU65,ZSU6#201312-201705

main81594-48250iASU6#,AVU65,ZSU6#201705

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9015960498

main90159-60498

9017905030

main90179-05030

9018906235

main90189-06235

24 parts on this diagram · 1 diagram in section
