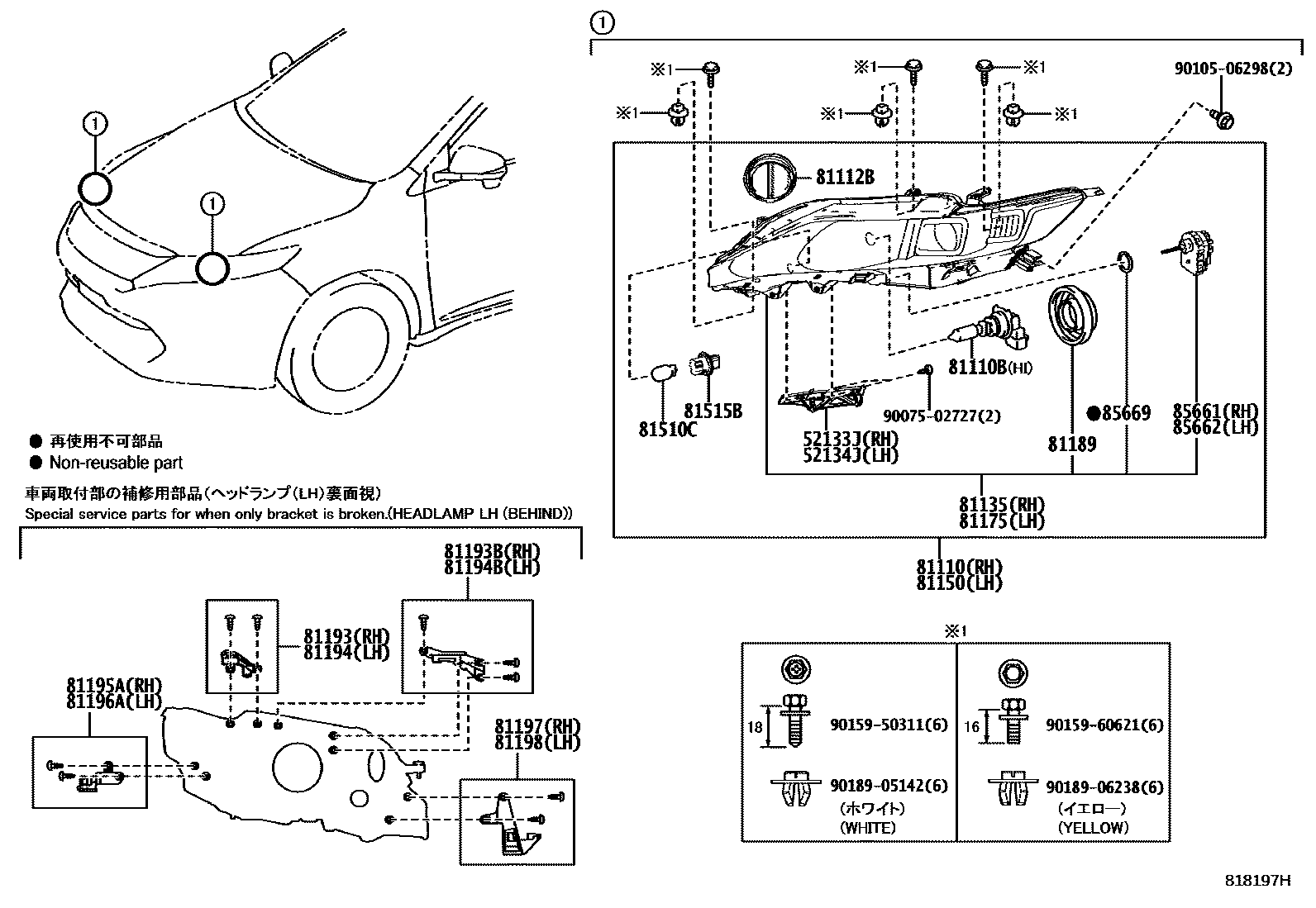

HEADLAMP

0001 1LED HEADLAMP 0002 1 0003 1

52133JREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-48050iAVU65,ZSU6#201312-201705

main52133-48060iASU6#,AVU65,ZSU6#201705

52134JREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-48050iAVU65,ZSU6#201312-201705

main52134-48070iASU6#,AVU65,ZSU6#201705

81110HEADLAMP ASSY, RH

main81110-48440iAVU65,ZSU6#201312-201705

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iAVU65,ZSU6#201312-201705

81112BRING, COVER

main81112-47380×2iAVU65,ZSU6#201312-201705

81135UNIT ASSY, HEADLAMP, RH

main81140-48440iAVU65,ZSU6#201312-201705

main81140-48E20iAVU65,ZSU6#..ELEGC201705-201802

main81140-48E21iAVU65,ZSU6#..ELEGC201802

main81145-48E30iAVU65,ZSU6#..PREM,PROGR201705

main81145-48E40iASU6#201705

main81145-48G40iAVU65,ZSU6#..PROGR201809-201907

main81145-48G50iASU6#..PROGR201809-201907

81150HEADLAMP ASSY, LH

main81150-48890iAVU65,ZSU6#201312-201705

81175UNIT ASSY, HEADLAMP, LH

main81070-48890iAVU65,ZSU6#201312-201705

main81070-48E20iAVU65,ZSU6#..ELEGC201705-201802

main81070-48E21iAVU65,ZSU6#..ELEGC201802

main81185-48E30iAVU65,ZSU6#..PREM,PROGR201705

main81185-48E40iASU6#201705

main81185-48G40iZSU6#..PREM201907

main81185-48G50iASU6#..PROGR201809-201907

81189COVER, HEADLAMP

main90075-65006×2iAVU65,ZSU6#201312-201705

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48060iAVU65,ZSU6#201312-201705

main81193-48130iASU6#;AVU65,ZSU6#..PREM,PROGR201705

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81194-48070iAVU65,ZSU6#201312-201705

main81194-48130iASU6#;AVU65,ZSU6#..PREM,PROGR201705

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81193-48090iAVU65,ZSU6#201312-201705

main81193-48140iASU6#;AVU65,ZSU6#..PREM,PROGR201705

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-48090iAVU65,ZSU6#201312-201705

main81194-48140iASU6#;AVU65,ZSU6#..PREM,PROGR201705

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-48020iAVU65,ZSU6#201312-201705

main81195-48060iASU6#;AVU65,ZSU6#..PREM,PROGR201705

main81195-48070iAVU65,ZSU6#..ELEGC201803

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-48060iAVU65,ZSU6#201312-201705

main81196-48070iASU6#;AVU65,ZSU6#..PREM,PROGR201705

main81196-48080iAVU65,ZSU6#..ELEGC201803

81197BRACKET, HEADLAMP, LOWER RH

main81197-48030iAVU65,ZSU6#201312-201705

main81197-48040iASU6#;AVU65,ZSU6#..PREM,PROGR201705

main81197-48050iAVU65,ZSU6#..ELEGC201803

81198BRACKET, HEADLAMP, LWR LH

main81198-48030iAVU65,ZSU6#201312-201705

main81198-48040iASU6#;AVU65,ZSU6#..PREM,PROGR201705

main81198-48050iAVU65,ZSU6#..ELEGC201803

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iAVU65,ZSU6#201312-201705

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iAVU65,ZSU6#201312-201705

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020iAVU65,ZSU6#201312-201705

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020iAVU65,ZSU6#201312-201705

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iAVU65,ZSU6#201312-201705

9007502727

main90075-02727

9010506298

main90105-06298

9015950311

main90159-50311

9015960621

main90159-60621

9018905142

main90189-05142

9018906238

main90189-06238

28 parts on this diagram · 3 diagrams in section
