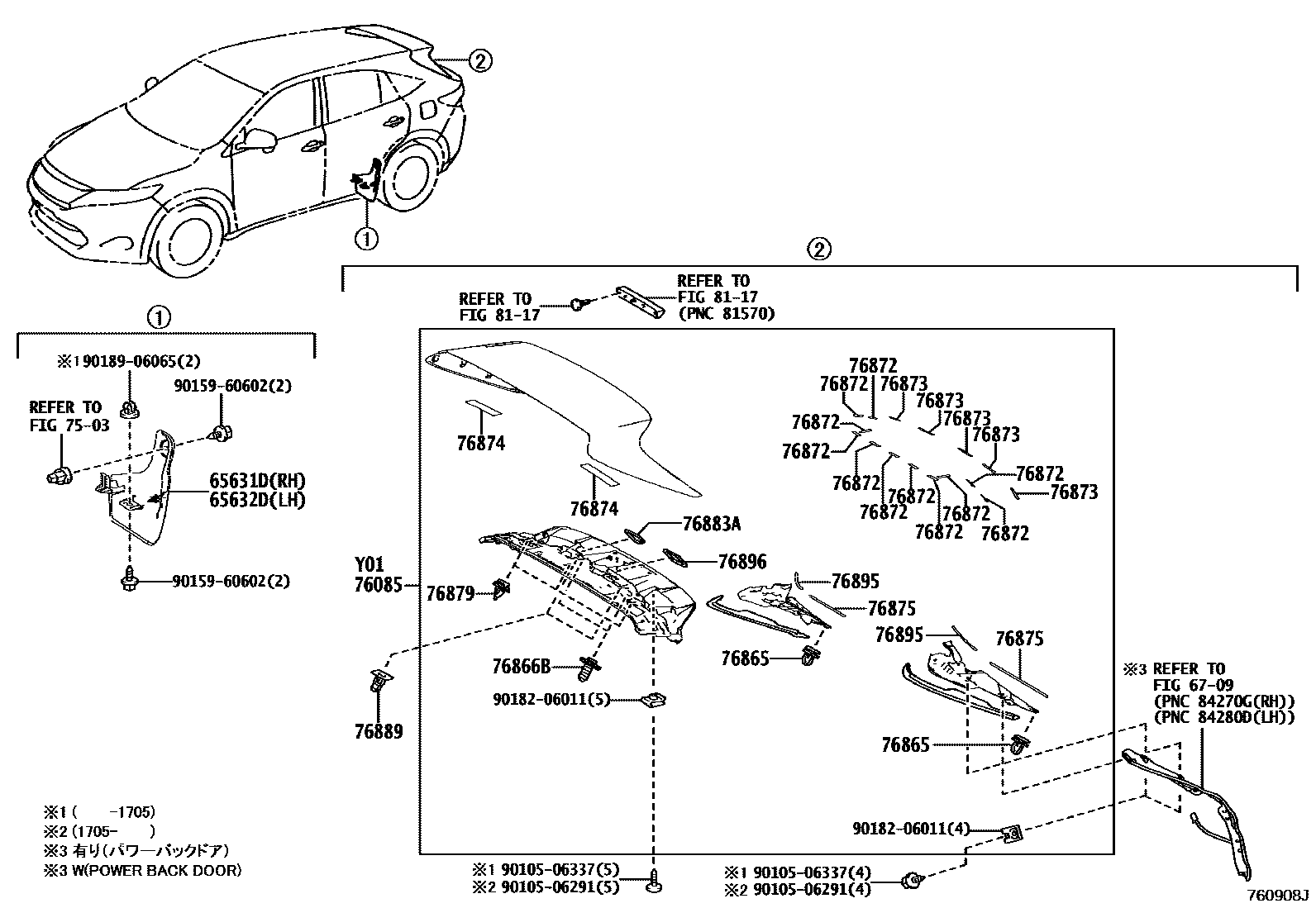

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-48010iAVU65,ZSU6#201312-201705

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-48010iAVU65,ZSU6#201312-201705

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

7503SIDE MOULDING

→ Go to FIG 75-03

76085SPOILER SUB-ASSY, REAR

main76085-48901-C0supersedes 76085-48900-C0iASU6#,AVU65,ZSU6#..PROGR; ASU6#,AVU65..PREM; ZSU6#..ELEGC;ASU6#,AVU65..ELEGC,PREM; ZSU6#..PREM201705

76865RETAINER, REAR SPOILER, NO.1

main76865-35030×2iAVU65,ZSU6#201312-201705

76866BRETAINER, REAR SPOILER, NO.2

main76866-48010×2iAVU65,ZSU6#201312-201705

76872PROTECTOR, REAR SPOILER, NO.1

main76872-48020×11iAVU65,ZSU6#201312-201705

76873PROTECTOR, REAR SPOILER, NO.2

main76873-48030×5iAVU65,ZSU6#201312-201705

76874PROTECTOR, REAR SPOILER, NO.3

main76874-48020×2iAVU65,ZSU6#201312-201705

76875PROTECTOR, REAR SPOILER, NO.4

main76875-48040×2iAVU65,ZSU6#201312-201705

76879CLIP, REAR SPOILER, NO.1

main75819-68010×3iAVU65,ZSU6#201312-201705

76883APROTECTOR, REAR SOPILER, NO.7

main76883-48010iAVU65,ZSU6#201312-201705

76889CLIP, REAR SPOILER, NO.2

main76889-44020×2iAVU65,ZSU6#201312-201705

76895PROTECTOR, REAR SPOILER, NO.5

main76895-48010×2iAVU65,ZSU6#201312-201705

76896PROTECTOR, REAR SPOILER, NO.6

main76896-48010iAVU65,ZSU6#201312-201705

8117CENTER STOP LAMP

→ Go to FIG 81-17

9010506291

main90105-06291

9010506337

main90105-06337

9015960602

main90159-60602

9018206011

main90182-06011

9018906065

main90189-06065

22 parts on this diagram · 1 diagram in section
