REAR MOULDING

68294DAM, BACK DOOR GLASS ADHESIVE

main68294-44030×4iASU6#,AVU65,ZSU6#201705

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-21040iASU6#,AVU65,ZSU6#201705

75193AHOLDER, REAR LICENSE PLATE

main75193-44010×2iAVU65,ZSU6#201312-201705

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-48380-A0iZSU6#201312-201401

WHITE PEARL CS.,070

main76801-48380-B0iZSU6#201312-201401

SILVER ME.,1F7

main76801-48380-B1iZSU6#201312-201401

DK. STEEL MC.,1H2

main76801-48380-C0iZSU6#201312-201401

BLACK,202

main76801-48380-C1iZSU6#201312-201401

SPARKLING BLACK PEARL CS.,220

main76801-48380-D0iZSU6#201312-201401

BLACKISH RED MC.,3R0

main76801-48380-E0iZSU6#201312-201401

DK.BROWN ME.,4U5

main76801-48381-A0iAVU65,ZSU6#201401-201705

WHITE PEARL CS.,070

main76801-48381-B0iAVU65,ZSU6#201401-201705

SILVER ME.,1F7

main76801-48381-B1iAVU65,ZSU6#201401-201506

DK. STEEL MC.,1H2

main76801-48381-C0iAVU65,ZSU6#201401-201705

BLACK,202

main76801-48381-C1iAVU65,ZSU6#201401-201705

SPARKLING BLACK PEARL CS.,220

main76801-48381-C2iAVU65,ZSU6#201506-201705

BLACKISH AGEHA GF.,221

main76801-48381-D0iAVU65,ZSU6#201401-201705

BLACKISH RED MC.,3R0

main76801-48381-D1iAVU65,ZSU6#..PREM201506-201606

RED M.M.,3R3

main76801-48381-E0iAVU65,ZSU6#201401-201705

DK.BROWN ME.,4U5

main76801-48381-J0iAVU65,ZSU6#..PREM201606-201705

BLUE ME.,8T7

main76801-48510-A0iASU6#,AVU65,ZSU6#201705

WHITE PEARL CS.,070

main76801-48510-B0iASU6#,AVU65,ZSU6#201705

SILVER ME.,1F7

main76801-48510-C0iASU6#,AVU65,ZSU6#201705

BLACK,202

main76801-48510-C1iASU6#,AVU65,ZSU6#201705

SPARKLING BLACK PEARL CS.,220

main76801-48510-C2iASU6#,AVU65,ZSU6#..PROGR201809

BLACK MC.,209

main76801-48510-D0iASU6#,AVU65,ZSU6#201705

DK. RED M.M.,3Q3

main76801-48510-J0iASU6#,AVU65,ZSU6#201705

DK.BLUE M.M.,8W7

main76801-48381-D2iASU65,ZSU6#..ELEGC201708

main76801-48381-J1iASU65,ZSU6#..ELEGC201708

76817CLIP, BACK DOOR OUTSIDE GARNISH

main75868-60020×5iAVU65,ZSU6#201312-201705

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-48030iAVU65,ZSU6#201312-201705

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-48030×2iAVU65,ZSU6#201312-201705

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-48080×2iAVU65,ZSU6#201312-201411

76839BCOVER, BACK DOOR GARNISH

main76839-48010-A0iAVU65,ZSU6#201312-201705

WHITE PEARL CS.,070

main76839-48010-B0iAVU65,ZSU6#201312-201705

SILVER ME.,1F7

main76839-48010-B1iAVU65,ZSU6#201312-201506

DK. STEEL MC.,1H2

main76839-48010-C0iAVU65,ZSU6#201312-201705

BLACK,202

main76839-48010-C1iAVU65,ZSU6#201312-201705

SPARKLING BLACK PEARL CS.,220

main76839-48010-C2iAVU65,ZSU6#201506-201705

BLACKISH AGEHA GF.,221

main76839-48010-D0iAVU65,ZSU6#201312-201705

BLACKISH RED MC.,3R0

main76839-48010-E0iAVU65,ZSU6#201312-201705

DK.BROWN ME.,4U5

main76839-48020-A0supersedes 76839-48010-A0iASU6#,AVU65,ZSU6#..ELEGC,PREM; ASU6#,AVU65,ZSU6#..PREM; ASU6#,AVU65,ZSU6#..PROGR201705

main76839-48020-B0supersedes 76839-48010-B0iASU6#,AVU65,ZSU6#..ELEGC,PREM; ASU6#,AVU65,ZSU6#..PREM; ASU6#,AVU65,ZSU6#..PROGR201705

main76839-48020-C0supersedes 76839-48010-C0iASU6#,AVU65,ZSU6#..ELEGC,PREM; ASU6#,AVU65,ZSU6#..PREM; ASU6#,AVU65,ZSU6#..PROGR201705

main76839-48020-C1supersedes 76839-48010-C1iASU6#,AVU65,ZSU6#..ELEGC,PREM; ASU6#,AVU65,ZSU6#..PREM; ASU6#,AVU65,ZSU6#..PROGR201705

main76839-48020-C3supersedes 76839-48010-C3iASU6#,AVU65,ZSU6#..PROGR; ZSU6#..PREM201809

main76839-48020-D2supersedes 76839-48010-D2iASU6#,AVU65,ZSU6#..ELEGC,PREM; ASU6#,AVU65,ZSU6#..PREM; ASU6#,AVU65,ZSU6#..PROGR201705

main76839-48020-J1supersedes 76839-48010-J1iASU6#,AVU65,ZSU6#..ELEGC,PREM; ASU6#,AVU65,ZSU6#..PREM; ASU6#,AVU65,ZSU6#..PROGR201705

main76839-48020-B1iAVU65,ZSU6#..ELEGC,GRAND; AVU65,ZSU6#..ELEGC,PREM201312-201506

main76839-48020-C2iAVU65,ZSU6#..ELEGC,GRAND; AVU65,ZSU6#..ELEGC,PREM201506-201705

main76839-48020-D0iAVU65,ZSU6#..ELEGC,GRAND; AVU65,ZSU6#..ELEGC,PREM201312-201705

main76839-48020-D1supersedes 76839-48010-D1iAVU65,ZSU6#..PREM201506-201606

main76839-48020-E0iAVU65,ZSU6#..ELEGC,GRAND; AVU65,ZSU6#..ELEGC,PREM201312-201705

main76839-48020-J0supersedes 76839-48010-J0iAVU65,ZSU6#..PREM201606-201705

7689960010PROTECTOR, REAR SPOILER, SIDE NO.6

main76899-60010

9011906830

main90119-06830

9015960431

main90159-60431

9018906084

main90189-06084

9018906235

main90189-06235

9095006077

main90950-06077

91621B0618

main91621-B0618

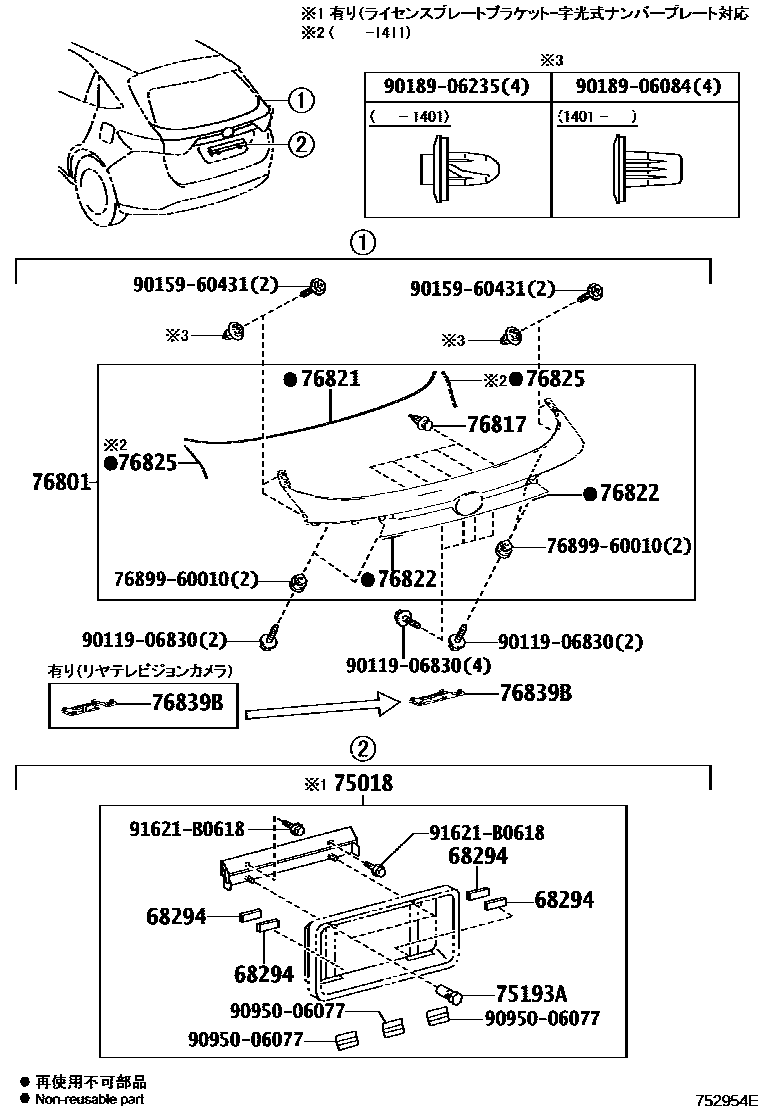

16 parts on this diagram · 1 diagram in section
