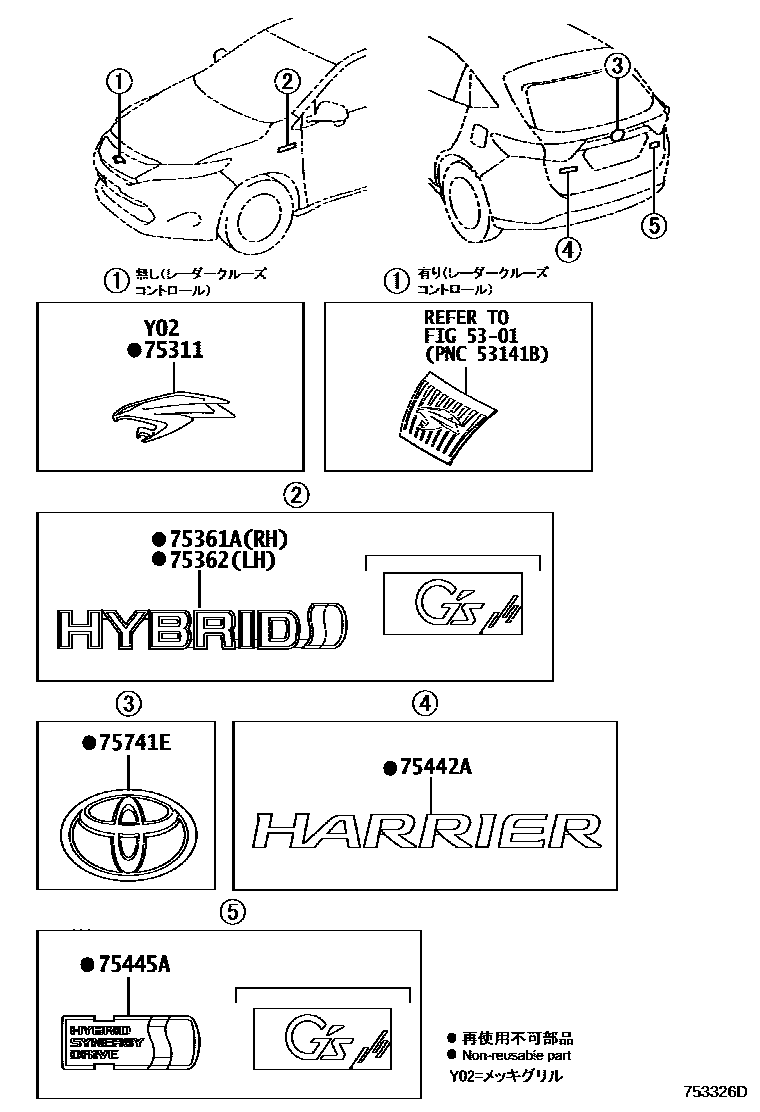

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

5301RADIATOR GRILLE

→ Go to FIG 53-01

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-48180iAVU65,ZSU6#201312-201705

main00000-00000iAVU65,ZSU6#..GRAND201505-201705

75361APLATE, FRONT FENDER NAME, NO.1

main75361-48080iAVU65201401-201705

main75350-48010iASU65,ZSU6#..ELEGC201708

main75361-48090iZSU6#..ELEGC201501-201705

75362PLATE, FRONT FENDER NAME, NO.2

main75362-48040iAVU65201401-201705

main75350-48020iASU65,ZSU6#..ELEGC201708

main75362-48050iZSU6#..ELEGC201501-201705

75442APLATE, BACK DOOR NAME, NO.2

main75442-48140iAVU65,ZSU6#201312-201705

75445APLATE, BACK DOOR NAME, NO.5

main75445-48100iAVU65201705

main75430-48010iASU65,ZSU6#..ELEGC201708

main75441-48060iZSU6#..ELEGC201501-201705

75741EEMBLEM, SYMBOL

main75403-75010iAVU65201401-201705

main90975-02071iASU6#,ZSU6#201705

main90975-02140iASU65,ZSU6#..ELEGC201708

7 parts on this diagram · 2 diagrams in section
