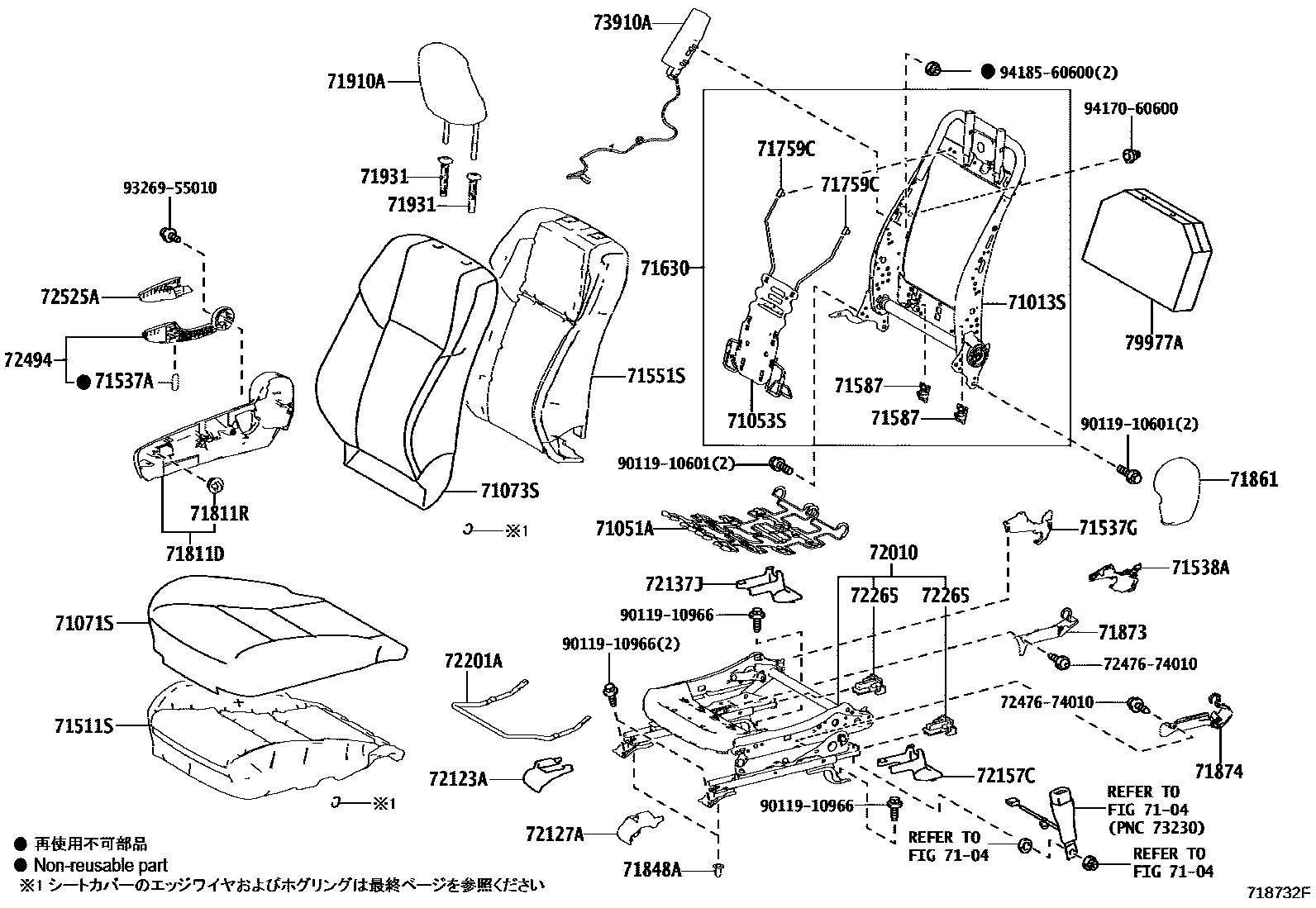

FRONT SEAT & SEAT TRACK

0001 1������ 0002 1������ 0003 1������ 0004 1������,��(������) 0005 1������� 0006 1�������,��(�������) 0007 1�������,��(�������) 0008 1�������������� & �������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-42090iAVU65..GRAND201401-201705

main71013-48080iZSU6#..GRAND201312-201705

main71013-48090iAVU65201705-202005

main71013-48100iASU6#,ZSU6#201705-202005

main71013-48110iAVU65..PREM201506-201606

main71013-48120iZSU6#..PREM201506-201606

main71013-48160iZSU6#..ELEGC201501-201705

main71013-48170iAVU65..PREM,PROGR201705-202005

main71013-48180iASU6#,ZSU6#..PROGR201809-201907

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47060iAVU65,ZSU6#201312-201705

main71051-21050iASU65,ZSU6#..ELEGC201708-202005

main71051-78010iASU6#,AVU65,ZSU6#..PREM,PROGR201705-202005

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-52050iAVU65,ZSU6#..GRAND201312-201705

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-48880-C1iAVU65,ZSU6#..GRAND201312-201412

BLACK,TRIM2#,4#

main71071-48880-C2iAVU65,ZSU6#..GRAND201412-201705

BLACK,TRIM2#,4#

main71071-48890-A1iAVU65,ZSU6#..ELEGC,PREM201312-201412

IVORY,TRIM0#

main71071-48890-A2iAVU65,ZSU6#..ELEGC,PREM201412-201506

IVORY,TRIM0#

main71071-48890-A3iAVU65,ZSU6#..ELEGC,PREM201506-201705

IVORY,TRIM0#

main71071-48890-C4iAVU65,ZSU6#..ELEGC,PREM201412-201506

BLACK/BEIGE,TRIM20

main71071-48890-C5iAVU65,ZSU6#..ELEGC,PREM201506-201705

BLACK/BLACK,TRIM2#,4#

main71071-48B50-C2iASU6#201705-201803

BLACK REDPERFORATION,TRIM2#

main71071-48B51-C1iASU6#201803-202005

BLACK REDPERFORATION,TRIM2#

main71071-48B51-J0iASU6#..PROGR201809-201907

BLUE BLACK PERFORATION,TRIM8#

main71071-48C00-C1iAVU65,ZSU6#201705-201803

BLACK,TRIM2#,43

main71071-48C00-E1iAVU65,ZSU6#201705-201803

DK.SADDLE TAN,TRIM45

main71071-48C01-C0iZSU6#..PREM201907-202005

BLACK,TRIM20,43

main71071-48C01-C2iZSU6#..PREM201907-202005

BLACK/GRAY,TRIM23

main71071-48C01-E0iAVU65,ZSU6#201803-202005

DK.SADDLE TAN,TRIM45

main71071-48C01-J0iAVU65,ZSU6#..PROGR201809-201907

BLUE/BLACK/BLUE,TRIM8#

main71071-48870-B0iAVU65,ZSU6#..PREM201606-201705

main71071-48A00-C2supersedes 71071-48890-C1iAVU65,ZSU6#..ELEGC,PREM201312-201412

main71071-48A00-C3supersedes 71071-48890-C1iAVU65,ZSU6#..ELEGC,PREM201412-201705

main71071-48A90-C1iZSU6#..ELEGC201501-201705

main71071-48B30-C0iAVU65,ZSU6#..PREM201506-201606

main71071-48B40-C4iAVU65,ZSU6#..PREM,PROGR201705-201803

main71071-48B40-C5iASU6#..PREM,PROGR201705-201803

main71071-48B40-E3iAVU65,ZSU6#..PREM,PROGR201705-201803

main71071-48B41-C2iAVU65,ZSU6#..PREM,PROGR201803-202005

main71071-48B41-C3iASU6#..PROGR201809-201907

main71071-48B41-E2iAVU65,ZSU6#..PREM,PROGR201803-202005

main71071-48B41-J0iASU6#,AVU65,ZSU6#..PROGR201809-201907

main71071-48B60-C0iASU65,ZSU6#..ELEGC201708-202005

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-48C20-C1iAVU65,ZSU6#..GRAND201312-201412

BLACK,TRIM2#,4#

main71073-48C20-C2iAVU65,ZSU6#..GRAND201412-201606

BLACK,TRIM2#,4#

main71073-48C20-C3iAVU65,ZSU6#..GRAND201606-201705

BLACK,TRIM2#,4#

main71073-48C30-A1iAVU65,ZSU6#..ELEGC,PREM201312-201412

IVORY,TRIM0#

main71073-48C30-A2iAVU65,ZSU6#..ELEGC,PREM201412-201606

IVORY,TRIM0#

main71073-48C30-A3iAVU65,ZSU6#..ELEGC,PREM201606-201705

IVORY,TRIM0#

main71073-48C70-C1iASU6#201705-202005

BLACK REDPERFORATION,TRIM2#

main71073-48C70-C2iASU6#..PROGR201809-202005

BLUE BLACK PERFORATION,TRIM8#

main71073-48E30-C0iAVU65,ZSU6#201705-202005

BLACK/CREAM,TRIM2#,43

main71073-48E30-C1iAVU65,ZSU6#..PROGR201809-202005

BLACK/BLUE,TRIM8#

main71073-48E30-E0iAVU65,ZSU6#201705-202005

DK.SADDLE TAN/CREAM,TRIM45

main71073-48C40-C2supersedes 71073-48C30-C5iAVU65,ZSU6#..ELEGC,PREM201312-201412

main71073-48C40-C3supersedes 71073-48C30-C5iAVU65,ZSU6#..ELEGC,PREM201412-201511

main71073-48C41-C3supersedes 71073-48C30-C5iAVU65,ZSU6#..ELEGC,PREM201511-201606

main71073-48C41-C4supersedes 71073-48C30-C5iAVU65,ZSU6#..ELEGC,PREM201606-201705

main71073-48C50-B1iAVU65,ZSU6#..PREM201606-201705

main71073-48C60-C2iAVU65,ZSU6#..PROGR201809-201907

main71073-48C60-C3iASU6#..PROGR201809-201907

main71073-48C60-C4iASU6#,AVU65,ZSU6#..PROGR201809-201907

main71073-48C60-E1iAVU65,ZSU6#..PREM,PROGR201705-202005

main71073-48C90-C0iASU65,ZSU6#..ELEGC201708-202005

main71073-48E10-C1iZSU6#..ELEGC201501-201606

main71073-48E10-C2iZSU6#..ELEGC201606-201705

main71073-48E20-C0iAVU65,ZSU6#..PREM201506-201606

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-S0230iAVU65,ZSU6#..GRAND201312-201705

main71511-S0260iASU6#,AVU65,ZSU6#201705-202005

main71511-48370iZSU6#..ELEGC201501-201705

main71511-48400iASU6#,AVU65,ZSU6#..PREM,PROGR201705-202005

71537APROTECTOR, FRONT SEAT CUSHION

main71537-47040iAVU65,ZSU6#..GRAND201312-201705

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-42010-C0iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND; AVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-42010-C0iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND; AVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-S0370iASU6#,AVU65,ZSU6#201705-202005

main71551-48240iZSU6#..ELEGC201501-201705

main71551-48250iASU6#,AVU65,ZSU6#..PROGR201809-201907

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-52030×2iAVU65,ZSU6#201312-201705

71630SPRING ASSY, FRONT SEATBACK, RH

main71630-42130iAVU65..GRAND201401-201705

main71630-48080iZSU6#..GRAND201312-201705

main71630-48090iAVU65201705-202005

main71630-48100iASU6#,ZSU6#201705-202005

main71630-48110iAVU65..PREM201506-201606

main71630-48120supersedes 71630-48100iZSU6#..ELEGC,PREM201312-201705

main71630-48190iASU65,ZSU6#..ELEGC201708-202005

main71630-48200iAVU65..PROGR201809-201907

main71630-48210iASU6#,ZSU6#..PROGR201809-201907

71759CHOOK, FRONT SEATBACK, NO.1

main71759-47011×2iAVU65,ZSU6#201312-201705

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-42110-C0iAVU65,ZSU6#..GRAND201312-201611

BLACK,TRIM2#,4#

main71811-42160-C0iASU6#..ELEGC,PREM; ASU6#..PROGR; AVU65,ZSU6#..ELEGC,PREM; AVU65,ZSU6#..PROGR201705-202005

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

main71811-48210-C0iAVU65,ZSU6#..GRAND201611-201705

BLACK,TRIM2#,4#

71811RCLIP, FRONT SEAT CUSHION SHIELD, RH

main71769-47020iAVU65,ZSU6#201312-201705

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-48050×2iAVU65,ZSU6#201312-201705

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-42060-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM2#,4#

main71861-42110-C0iASU6#..ELEGC,PREM; ASU6#..PROGR; AVU65,ZSU6#..ELEGC,PREM; AVU65,ZSU6#..PROGR201705-202005

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040iAVU65,ZSU6#..GRAND201312-201705

main71873-60030iAVU65,ZSU6#..ELEGC,PREM201312-201705

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040iAVU65,ZSU6#..GRAND201312-201705

main71874-60110iASU6#,AVU65,ZSU6#201705-202005

71910AHEADREST ASSY, FRONT SEAT

main71910-48680-C2×2iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM2#,4#

main71910-48690-A2×2iAVU65,ZSU6#..ELEGC,PREM201312-201705

IVORY,TRIM0#

main71910-48690-C2×2iAVU65,ZSU6#..PREM201506-201606

BLACK,TRIM2#,43

main71910-48690-C3×2iZSU6#..ELEGC201705-201708

BLACK/GRAY,TRIM20

main71910-48690-C4×2iAVU65,ZSU6#..PREM201506-201606

BLACK/DARK VIOLET,TRIM44

main71910-48690-C5×2iASU6#201705-201904

BLACK/RED,TRIM2#

main71910-48690-E1×2iAVU65,ZSU6#201705-201904

DK.SADDLE TAN/CREAM,TRIM45

main71910-48691-C2×2iZSU6#..PREM201904-201907

BLACK,TRIM2#,43

main71910-48691-C5×2iASU6#201904-202005

BLACK/RED,TRIM2#

main71910-48691-C8×2iZSU6#..PREM201907-202005

BLACK/GRAY,TRIM23

main71910-48691-E1×2iAVU65,ZSU6#201904-202005

DK.SADDLE TAN/CREAM,TRIM45

main71910-48690-B0×2iAVU65,ZSU6#..PREM201606-201705

main71910-48700-C3×2iAVU65,ZSU6#..ELEGC,PREM201312-201705

main71910-48810-C0×2iZSU6#..ELEGC201501-201705

main71910-48B20-C0×2iAVU65,ZSU6#..PREM,PROGR201705-201904

main71910-48B20-C1×2iASU6#..PREM,PROGR201705-201904

main71910-48B20-E1×2iAVU65,ZSU6#..PREM,PROGR201705-201904

main71910-48B21-C0×2iAVU65,ZSU6#..PREM,PROGR201904-202005

main71910-48B21-C1×2iASU6#..PROGR201904-201907

main71910-48B21-C2×2supersedes 71910-48691-C6iASU6#,AVU65,ZSU6#..PROGR201904-201907

main71910-48B21-E1×2iAVU65,ZSU6#..PROGR201904-201907

main71910-48B70-C0×2iASU65,ZSU6#..ELEGC201708-202005

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020×2iASU6#,AVU65,ZSU6#201709-201710

main71930-47020-C0×2iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND; AVU65,ZSU6#..PREM201312-201705

main71930-47020-C4×2iASU6#..ELEGC,PREM; ASU6#..PROGR; AVU65,ZSU6#..ELEGC,PREM; AVU65,ZSU6#..PROGR201710-202005

main71931-47020×2iASU6#,AVU65,ZSU6#201709-201710

main71931-47020-C0×2iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND; AVU65,ZSU6#..PREM201312-201705

main71931-47020-C4×2iASU6#..ELEGC,PREM; ASU6#..PROGR; AVU65,ZSU6#..ELEGC,PREM; AVU65,ZSU6#..PROGR201710-202005

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-42191iAVU65,ZSU6#..GRAND201312-201705

main72010-48250iASU6#,AVU65,ZSU6#201705-202005

main72010-48071supersedes 72010-42201iAVU65,ZSU6#..ELEGC,PREM201312-201705

main72010-48260iASU6#,AVU65,ZSU6#..PROGR201809-201907

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-42030-C0iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND; AVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-42030-C0iASU6#..ELEGC,PREM; ASU6#..PROGR; AVU65,ZSU6#..ELEGC,PREM; AVU65,ZSU6#..PROGR201705

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-42050-C0iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND; AVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

72157CCOVER, SEAT TRACK BRACKET, INNER RH

main72158-42020-C0iASU6#..ELEGC,PREM; ASU6#..PROGR; AVU65,ZSU6#..ELEGC,PREM; AVU65,ZSU6#..PROGR201705

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

72201AHANDLE SUB-ASSY, SEAT TRACK RH

main72211-47020iAVU65,ZSU6#..GRAND201312-201705

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-42010×2iAVU65,ZSU6#..GRAND201312-201705

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-42020-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM2#,4#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM2#,4#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-42040iASU6#,AVU65,ZSU6#201705-202005

79977AFELT, SEATBACK

main79977-48090×2iASU6#,AVU65,ZSU6#201705-202005

main79977-52120×2iAVU65,ZSU6#201312-201705

7247674010SCREW, HORIZONTAL JACK, INNER

main72476-74010

9011910601

main90119-10601

9011910966

main90119-10966

9326955010

main93269-55010

9417060600

main94170-60600

9418560600

main94185-60600

39 parts on this diagram · 8 diagrams in section
