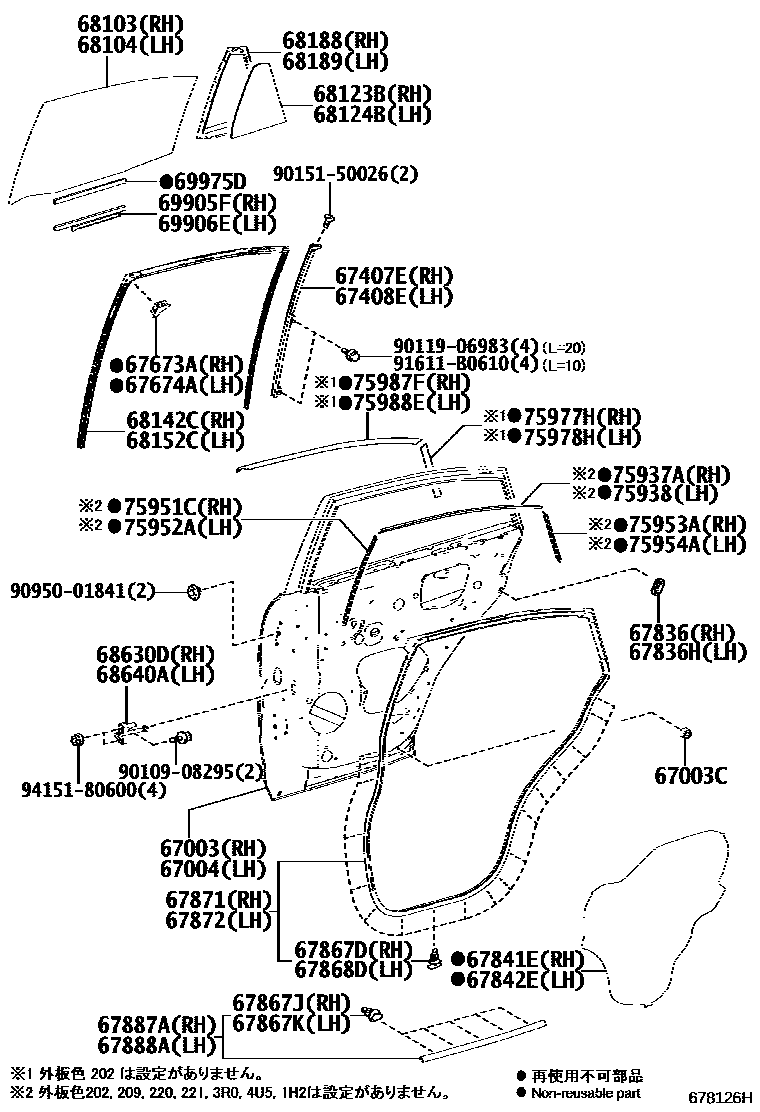

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)
67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975DFILLER, REAR DOOR GLASS CHANNAL
75937ATAPE, BLACK OUT, INNER UPPER RH
75938TAPE, BLACK OUT, INNER UPPER LH
75951CTAPE, BLACK OUT, INNER FRONT RH
75952ATAPE, BLACK OUT, INNER FRONT LH
75953ATAPE, BLACK OUT, INNER REAR RH
75954ATAPE, BLACK OUT, INNER REAR LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988ESTRIPE, REAR DOOR, OUTSIDE LH
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9095001841
main90950-01841
91611B0610
main91611-B0610
9415180600
main94151-80600
48 parts on this diagram · 3 diagrams in section
