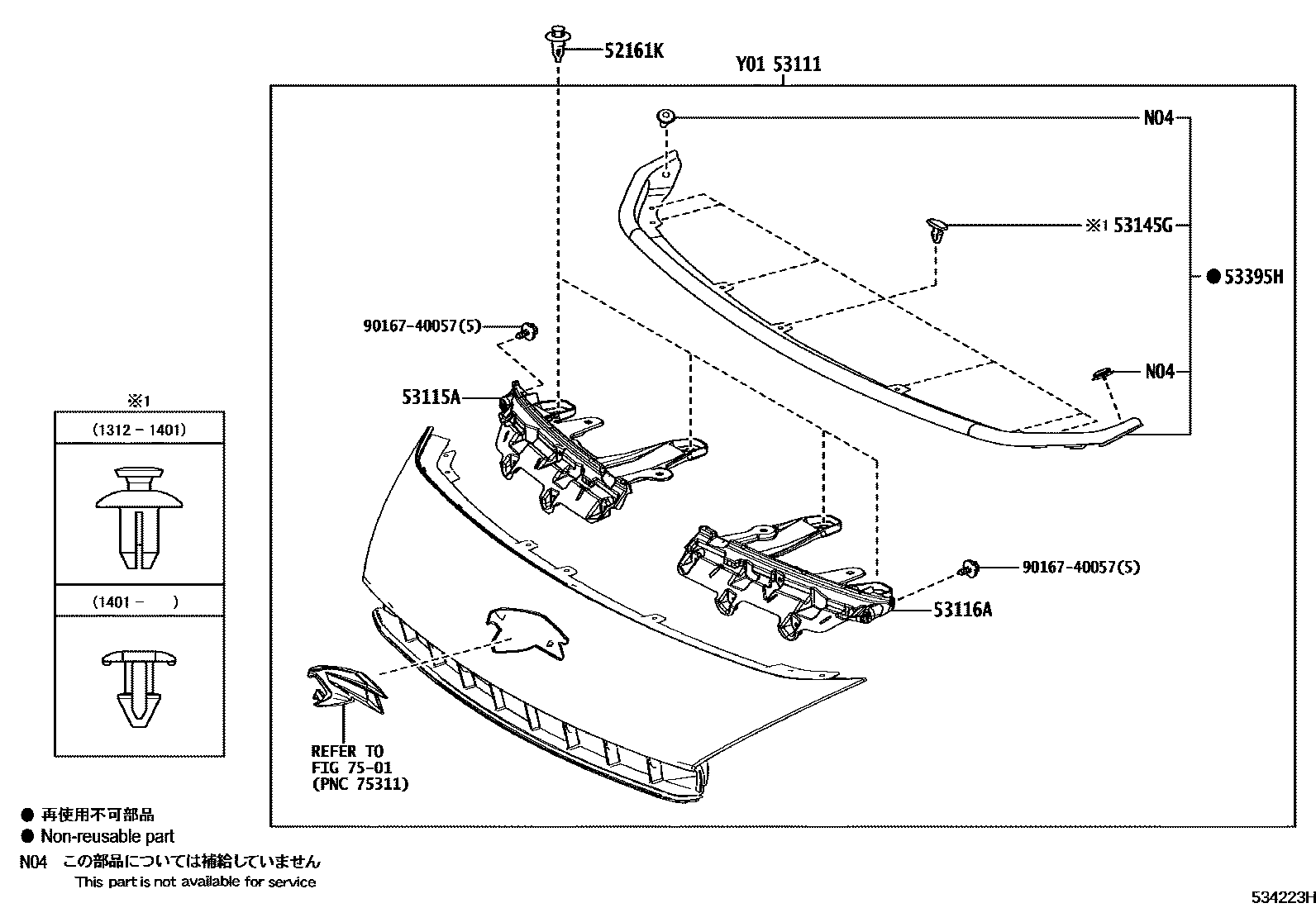

RADIATOR GRILLE

0001 1��(����������������) 0002 1��(����������������) 0003 1G'S 0004 1 0005 1GR SPORT

52161KPIECE, FRONT BUMPER

main52161-16010×4iASU6#,AVU65,ZSU6#201705

53111GRILLE, RADIATOR

main53101-48720iAVU65,ZSU6#201312-201402

main53101-48721iAVU65,ZSU6#201403-201410

main53101-48722iAVU65,ZSU6#201411-201705

main53101-48919iAVU65,ZSU6#..PROGR201705

main53101-48920iASU6#..ELEGC,PREM201705

main53101-48921iASU6#..PROGR201705

main53101-48830iZSU6#..ELEGC201501-201705

main53101-48912iAVU65,ZSU6#..PREM201312-201410

main53101-48913supersedes 53101-48918iAVU65,ZSU6#..ELEGC,PREM201312-201410

main53101-48916iAVU65,ZSU6#..PREM201411-201705

main53101-48917supersedes 53101-48918iAVU65,ZSU6#..ELEGC,PREM201411-201705

main53101-48918iAVU65,ZSU6#..ELEGC,PREM; ZSU6#..ELEGC201705

main53101-48922iASU65,ZSU6#..ELEGC201708

53115ABRACKET, RADIATOR GRILLE, RH

main53115-48020iASU6#,AVU65,ZSU6#201705

53116ABRACKET, RADIATOR GRILLE, LH

main53116-48010iASU6#,AVU65,ZSU6#201705

53145GCLIP, RADIATOR GRILLE

main53145-60030×7iAVU65,ZSU6#201401-201705

main90467-05063-C0×7iZSU6#201312-201401

BLACK

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-48070iAVU65,ZSU6#201312-201705

main53395-48090iASU6#,AVU65,ZSU6#201705

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9016740057

main90167-40057

8 parts on this diagram · 5 diagrams in section
