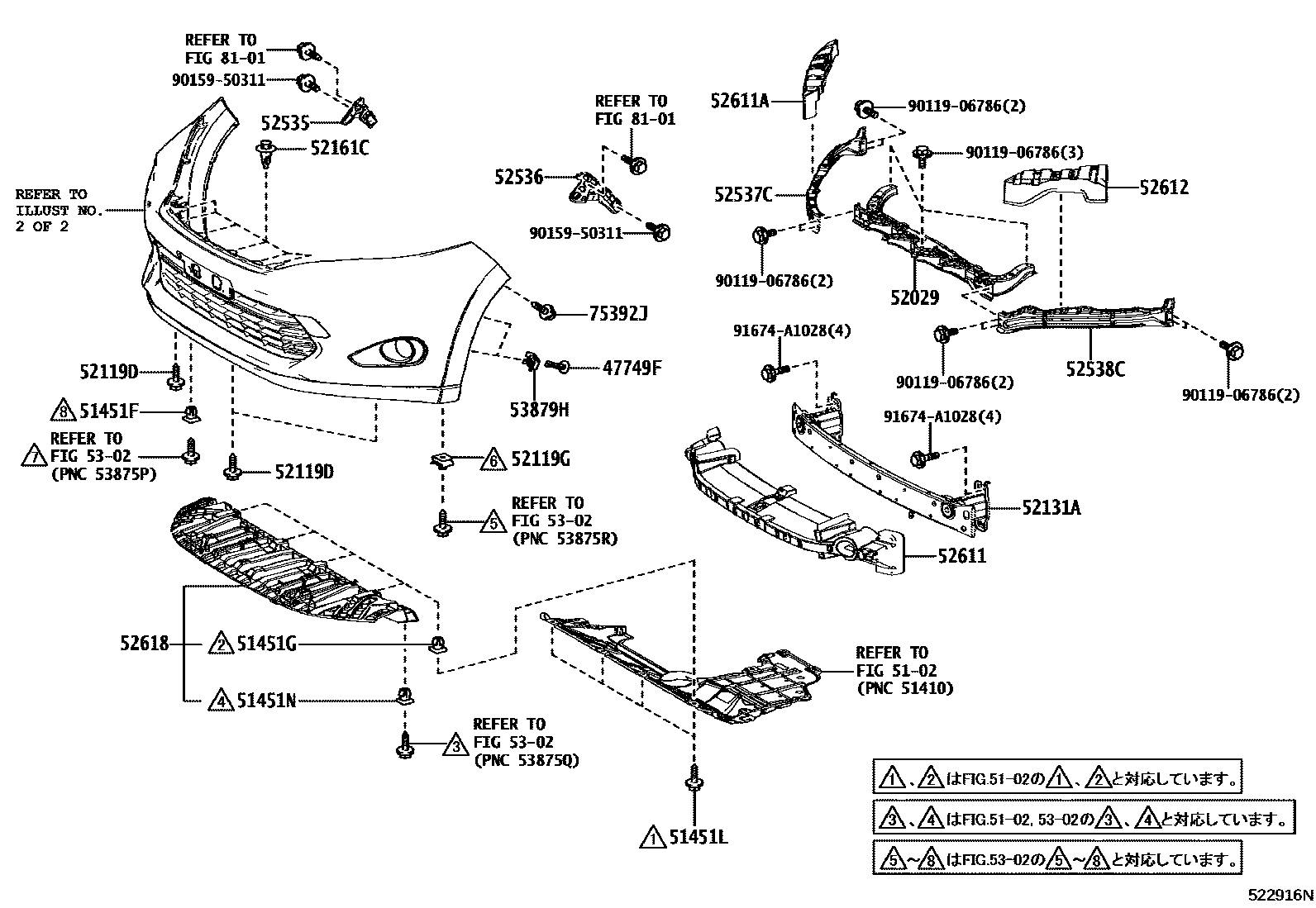

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1G'S 0004 1G'S 0005 1 0006 1 0007 1 0008 1 0009 1GR SPORT 0010 1GR SPORT

47749FCLIP, PIN HOLD

main47749-50090×4iAVU65,ZSU6#201312-201705

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451FGROMMET, NO.1

main90189-06237×2iAVU65,ZSU6#201312-201705

51451GGROMMET, NO.2

main90189-06193×4iAVU65,ZSU6#201312-201503

main90189-06237×4iAVU65,ZSU6#201504-201705

51451LBOLT, NO.1

main90119-06767×4iAVU65,ZSU6#201312-201705

51451NGROMMET, NO.3

main90189-06193×2iAVU65,ZSU6#201312-201503

main90189-06237×2iAVU65,ZSU6#201504-201705

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-48010iAVU65,ZSU6#201312-201705

52119DSCREW, NO.1

main90159-60602×4iASU6#,AVU65,ZSU6#201705-201907

main90159-60623×4iASU6#,AVU65,ZSU6#201908-202005

52119GCLIP, NO.1

main90467-05114×2iASU6#,AVU65,ZSU6#201705-202005

52131AREINFORCEMENT, FRONT BUMPER

main52021-48040iAVU65,ZSU6#201312-201705

main52021-48090iASU6#,AVU65,ZSU6#; ASU6#,ZSU6#201705-202005

52161CPIECE, FRONT BUMPER

main52161-16010×6iASU6#,AVU65,ZSU6#201705

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-48040iAVU65,ZSU6#201312-201705

main52535-48070iASU65,ZSU6#..ELEGC201803

main52535-48080iASU65,ZSU6#..ELEGC201711-201803

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-48030iASU6#,AVU65,ZSU6#201705

main52536-48060iASU65,ZSU6#..ELEGC201803

main52536-48070iASU65,ZSU6#..ELEGC201711-201803

52537CRETAINER, FRONT BUMPER SIDE, NO.2 RH

main52537-48010iAVU65,ZSU6#201605-201705

main52537-48020iAVU65,ZSU6#201312-201604

main52537-48040iASU6#,AVU65,ZSU6#201705

52538CRETAINER, FRONT BUMPER SIDE, NO.2 LH

main52538-48010iAVU65,ZSU6#201605-201705

main52538-48020iAVU65,ZSU6#201312-201604

main52538-48040iASU6#,AVU65,ZSU6#201705

52611ABSORBER, FRONT BUMPER ENERGY

main52614-48040iAVU65,ZSU6#201312-201705

main52614-48050iASU6#,AVU65,ZSU6#; ZSU6#..ELEGC201705

main52614-48041iASU65,ZSU6#..ELEGC201708

52611AABSORBER, FRONT BUMPER ENERGY, RH

main52611-48170iAVU65,ZSU6#201312-201705

main52611-48210iASU6#,AVU65,ZSU6#; ZSU6#..ELEGC201705

main52611-48200iZSU6#..ELEGC201605-201705

main52611-48220iASU65,ZSU6#..ELEGC201708

52612ABSORBER, FRONT BUMPER ENERGY, LH

main52612-48030iAVU65,ZSU6#201312-201705

main52612-48050iASU6#,AVU65,ZSU6#; ZSU6#..ELEGC201705

main52612-48040iZSU6#..ELEGC201605-201705

main52612-48060iASU65,ZSU6#..ELEGC201708

52618ABSORBER, FRONT BUMPER, LOWER

main52618-48010iAVU65,ZSU6#201312-201705

main52618-48030iASU6#,AVU65,ZSU6#201705

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53879HRETAINER, FRONT FENDER LINER

main53879-30050×4iAVU65,ZSU6#201312-201705

75392JRETAINER, OUTSIDE MOULDING

main75392-42030×2iAVU65,ZSU6#201312-201705

8101HEADLAMP

→ Go to FIG 81-01

9011906786

main90119-06786

9015950311

main90159-50311

91674A1028

main91674-A1028

26 parts on this diagram · 10 diagrams in section
