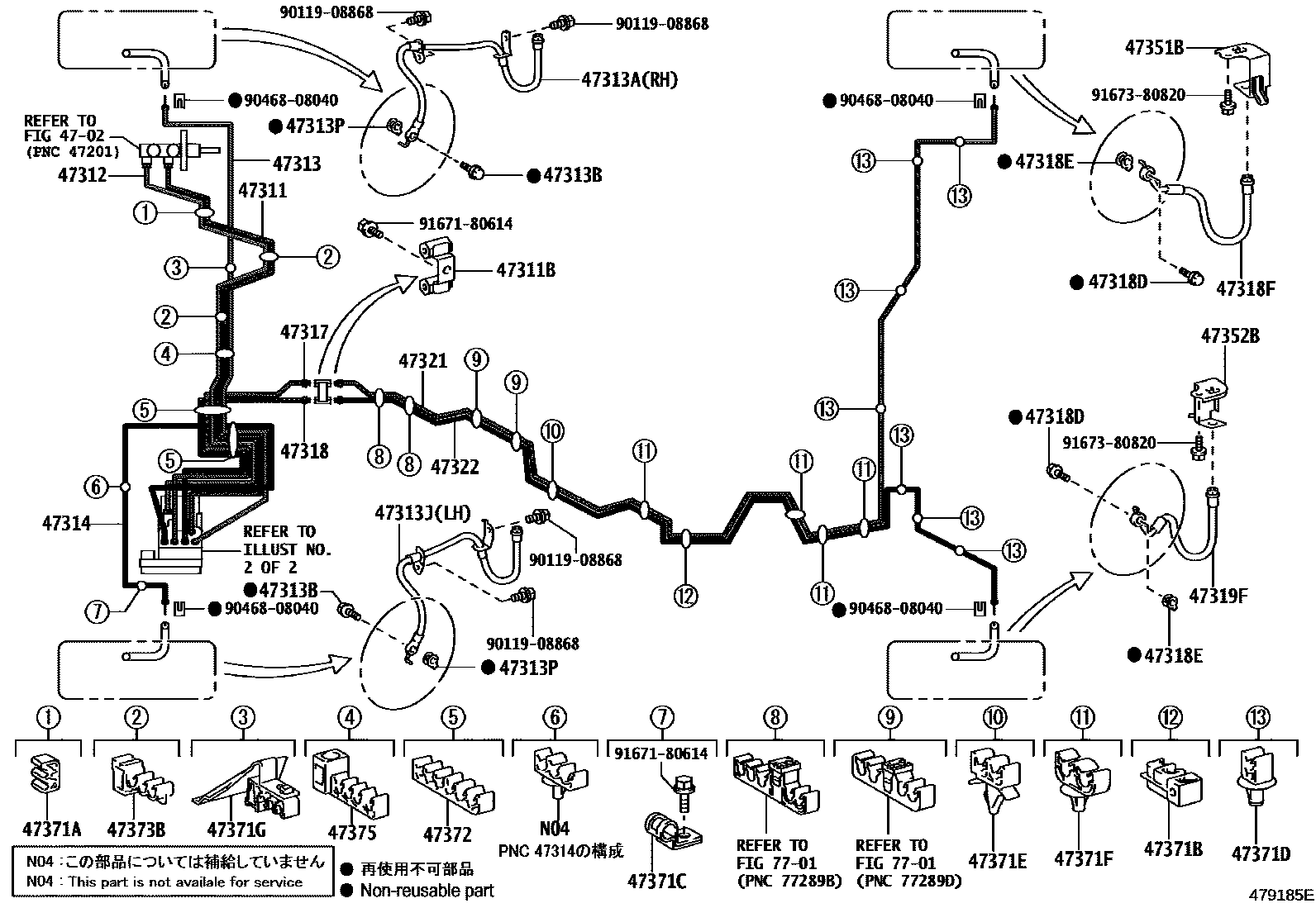

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-48060iASU6#,ZSU6#201705

main47311-48070iAVU65201401-201705

main47311-48080iZSU6#201312-201705

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iAVU65,ZSU6#201312-201705

47312TUBE, FRONT BRAKE, NO.2

main47312-48020iZSU6#201312-201705

main47312-48030iASU6#,ZSU6#201705

47313TUBE, FRONT BRAKE, NO.3

main47313-48030iAVU65201401-201705

main47313-48040iZSU6#201312-201705

main47313-48050iASU6#,ZSU6#201705

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F47iAVU65,ZSU6#201312-201705

main90947-02G85iASU6#,AVU65,ZSU6#201705

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAVU65,ZSU6#201312-201705

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F48iAVU65,ZSU6#201312-201705

main90947-02G86iASU6#,AVU65,ZSU6#201705

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iAVU65,ZSU6#201312-201705

47314TUBE, FRONT BRAKE, NO.4

main47314-48030iZSU6#201312-201705

main47314-48040iAVU65201705

main47314-78010iASU6#,ZSU6#201705

47317TUBE, FRONT BRAKE, NO.7

main47317-48320iAVU65201705

main47317-48330iZSU6#201312-201705

main47317-78010iASU6#,ZSU6#201705

47318TUBE, FRONT BRAKE, NO.8

main47318-48190iAVU65201401-201705

main47318-48200iZSU6#201312-201705

main47318-78010iASU6#,ZSU6#201705

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAVU65,ZSU6#201312-201705

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iAVU65,ZSU6#201312-201705

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G79iAVU65,ZSU6#201312-201705

main90947-02H23iASU6#,AVU65,ZSU6#201705

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G80iAVU65,ZSU6#201312-201705

main90947-02H23iASU6#,AVU65,ZSU6#201705

47321TUBE, REAR BRAKE, NO.1

main47321-48130iAVU65201705

main47321-48140iZSU6#201312-201705

47322TUBE, REAR BRAKE, NO.2

main47322-48140iAVU65201401-201705

main47322-48150iZSU6#201312-201705

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-42071iAVU65,ZSU6#201312-201705

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-42071iAVU65,ZSU6#201312-201705

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00880iASU6#,ZSU6#201705

main90464-00903iZSU6#201312-201705

47371BCLAMP, BRAKE TUBE, NO.6

main77299-32030iZSU6#201312-201705

main90464-00880iAVU65201401-201601

main90464-00903iASU6#,ZSU6#201705

main90949-01C51iAVU65201705

47371CCLAMP, BRAKE TUBE, NO.7

main90461-10781iASU6#,ZSU6#201705

main90469-07026×2iAVU65201401-201705

47371DCLAMP, BRAKE TUBE, NO.8

main90469-07020×4iASU6#,ZSU6#201705

main90949-01540iAVU65201401-201705

main90949-01D29×7iZSU6#201312-201705

47371ECLAMP, BRAKE TUBE, NO.9

main77299-32030iAVU65201401-201705

main90469-07019iZSU6#201312-201705

47371FCLAMP, BRAKE TUBE, NO.10

main90469-07019iAVU65201401-201705

main90469-07020×4iZSU6#201312-201705

main90949-01D29×7iASU6#,ZSU6#201705

47371GCLAMP, BRAKE TUBE, NO.11

main47371-42110iZSU6#201312-201705

main90469-07019iASU6#,ZSU6#201705

main90469-07020×4iAVU65201401-201705

47372CLAMP, BRAKE TUBE, NO.2

main90461-10781iAVU65201401-201705

main90949-01C85iASU6#,ZSU6#201705

main90949-01E06×2iZSU6#201312-201705

47373BCLAMP, BRAKE TUBE, NO.3

main90469-07026iASU6#,ZSU6#201705

main90949-01D05×2iZSU6#201312-201705

47375CLAMP, BRAKE TUBE, NO.5

main90461-10840iAVU65201705

main90464-00953iZSU6#201312-201705

main90949-01D21iASU6#,ZSU6#201705

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9046808040

main90468-08040

9167180614

main91671-80614

9167380820

main91673-80820

35 parts on this diagram · 6 diagrams in section
