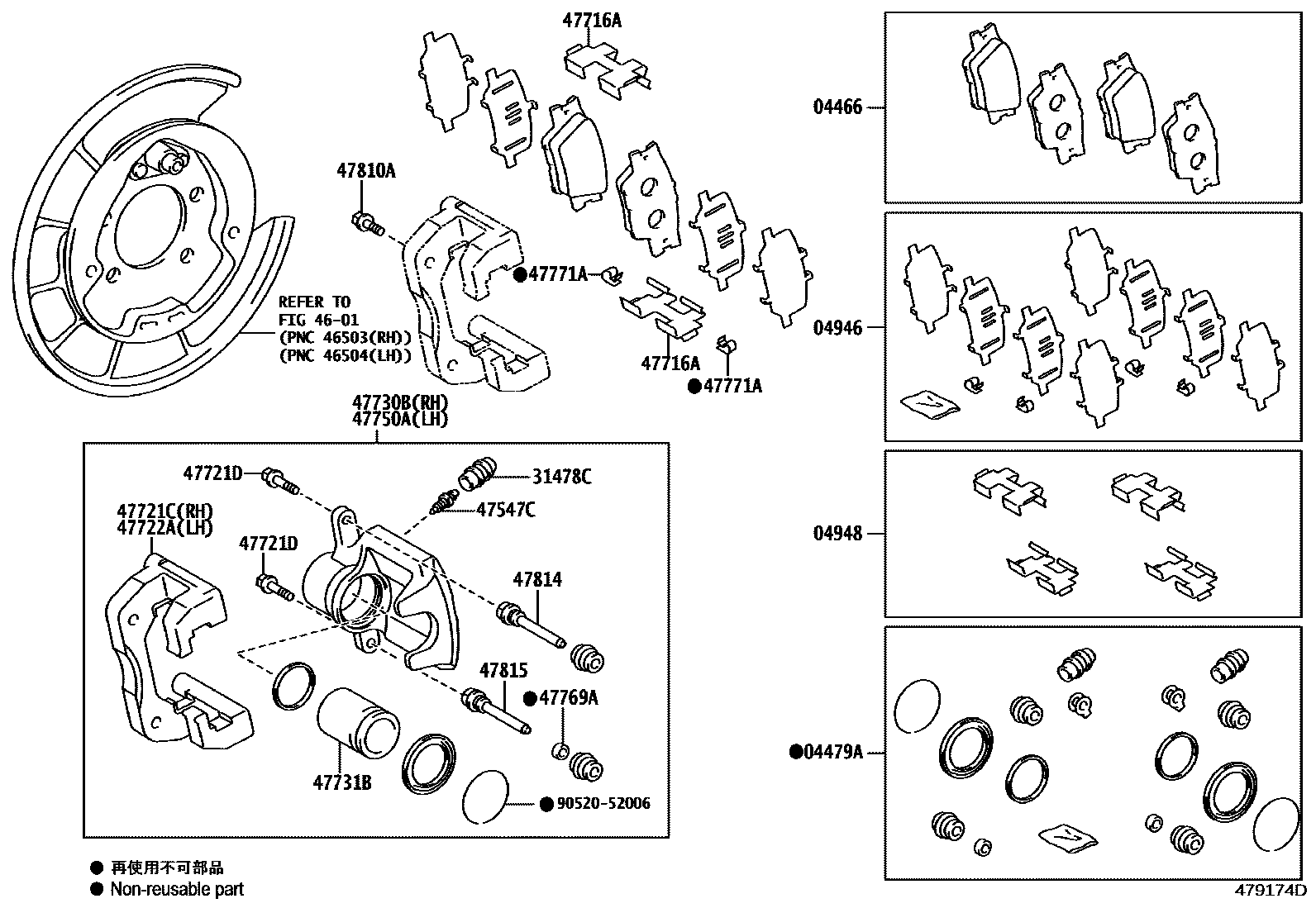

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-42060i201312-201705

main04466-78020i201705-202005

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33350i201312-201705

main04479-78011i201705

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33070i201505-201705

main04946-42050i201312-201504

main04946-78030i201705

04948FITTING KIT, DISC BRAKE, REAR

main04948-42030i201312-201705

main04948-58010i201705

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010i201705

main31478-50020i201312-201705

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010i201312-201705

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-42080i201312-201705

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-42080i201312-201705

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603i201705

main90105-08164i201312-201705

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-42070i201312-201705

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-42080i201312-201705

47731BPISTON, REAR DISC BRAKE

main47831-33210i201312-201705

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-42070i201312-201705

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010i201705

main47879-33240i201312-201705

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-72010i201505-201705

main47871-47060i201312-201505

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12208i201705

main90105-12314i201312-201705

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240i201312-201705

main47814-78010i201705

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240i201312-201705

main47815-78010i201705

9052052006

main90520-52006

20 parts on this diagram · 2 diagrams in section
