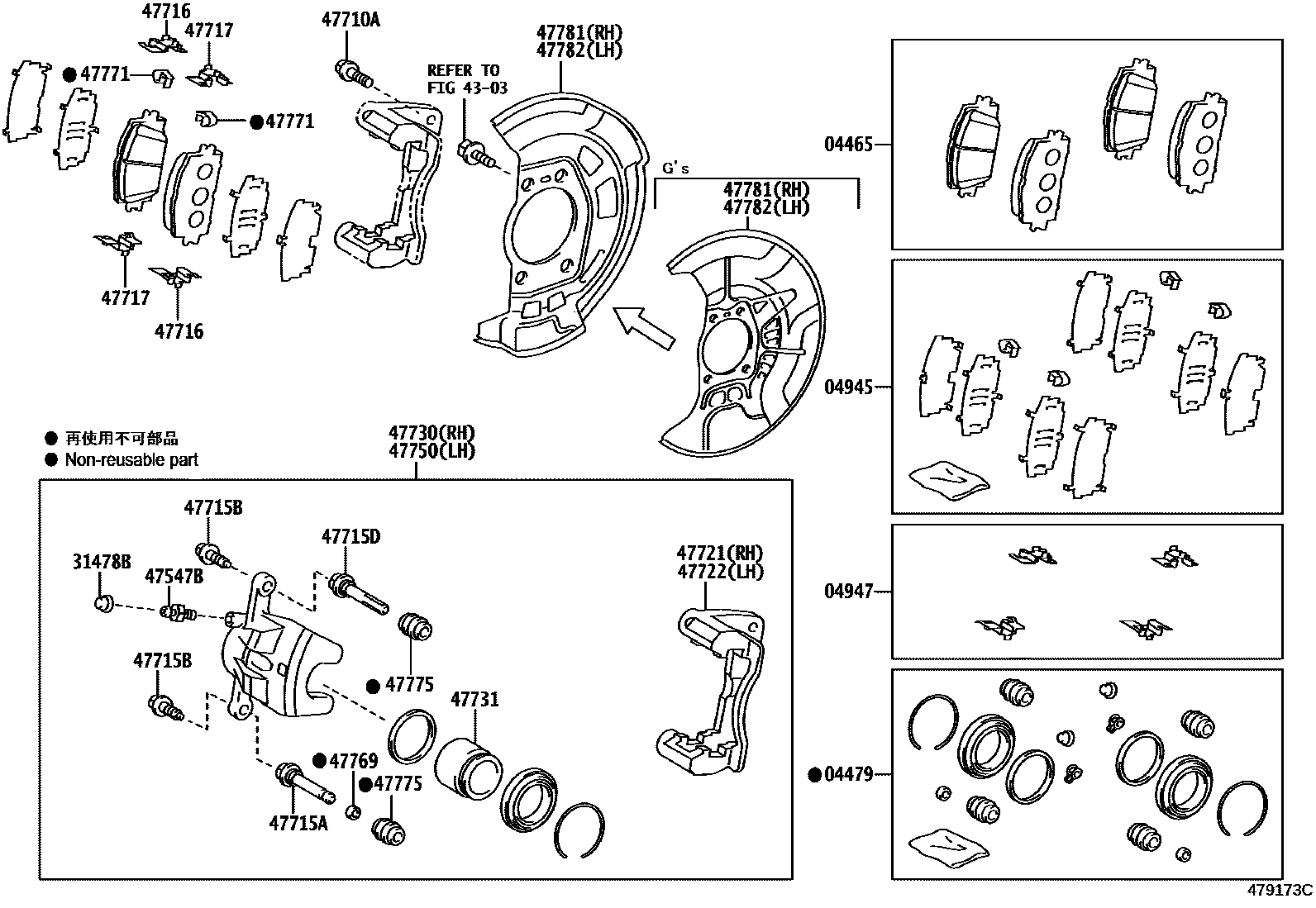

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1G'S 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-42180iAVU65,ZSU6#201312-201705

main04465-48150iASU6#,AVU65,ZSU6#201705-202005

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iAVU65,ZSU6#201312-201705

main04478-48150iASU6#,AVU65,ZSU6#201705-202005

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-42060iAVU65,ZSU6#201312-201705

main04945-48150iASU6#,AVU65,ZSU6#201705-202005

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iAVU65,ZSU6#201312-201705

main04947-48080iASU6#,AVU65,ZSU6#201705-202005

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAVU65,ZSU6#201312-202005

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iASU6#,AVU65,ZSU6#201705-202005

main47547-20010iAVU65,ZSU6#201312-201705

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAVU65,ZSU6#201312-202005

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iASU6#,AVU65,ZSU6#201705-202005

main47715-12A10iAVU65,ZSU6#201312-201705

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iAVU65,ZSU6#201312-201705

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iASU6#,AVU65,ZSU6#201705-202005

main47715-52190iAVU65,ZSU6#201312-201705

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48150iASU6#,AVU65,ZSU6#201705-202005

main47716-52191iAVU65,ZSU6#201312-201705

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-48150iASU6#,AVU65,ZSU6#201705-202005

main47717-52191iAVU65,ZSU6#201312-201705

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42091iAVU65,ZSU6#201312-201705

main47721-48150iASU6#,AVU65,ZSU6#201705-202005

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42091iAVU65,ZSU6#201312-201705

main47722-48140iASU6#,AVU65,ZSU6#201705-202005

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42091iAVU65,ZSU6#201312-201705

main47730-48150iASU6#,AVU65,ZSU6#201705-202005

47731PISTON, FRONT DISC BRAKE

main47731-12A70iAVU65,ZSU6#201312-201705

main47731-48150iASU6#,AVU65,ZSU6#201705-202005

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42091iAVU65,ZSU6#201312-201705

main47750-48110iASU6#,AVU65,ZSU6#201705-202005

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iASU6#,AVU65,ZSU6#201705-202005

main47769-50010iAVU65,ZSU6#201312-201705

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48150iASU6#,AVU65,ZSU6#201705-202005

main47771-52191iAVU65,ZSU6#201312-201705

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48150iASU6#,AVU65,ZSU6#201705-202005

main47775-52190iAVU65,ZSU6#201312-201705

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040iAVU65,ZSU6#201312-201705

main47781-42050iASU6#,AVU65,ZSU6#201705-202005

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040iAVU65,ZSU6#201312-201705

main47782-42050iASU6#,AVU65,ZSU6#201705-202005

23 parts on this diagram · 3 diagrams in section
