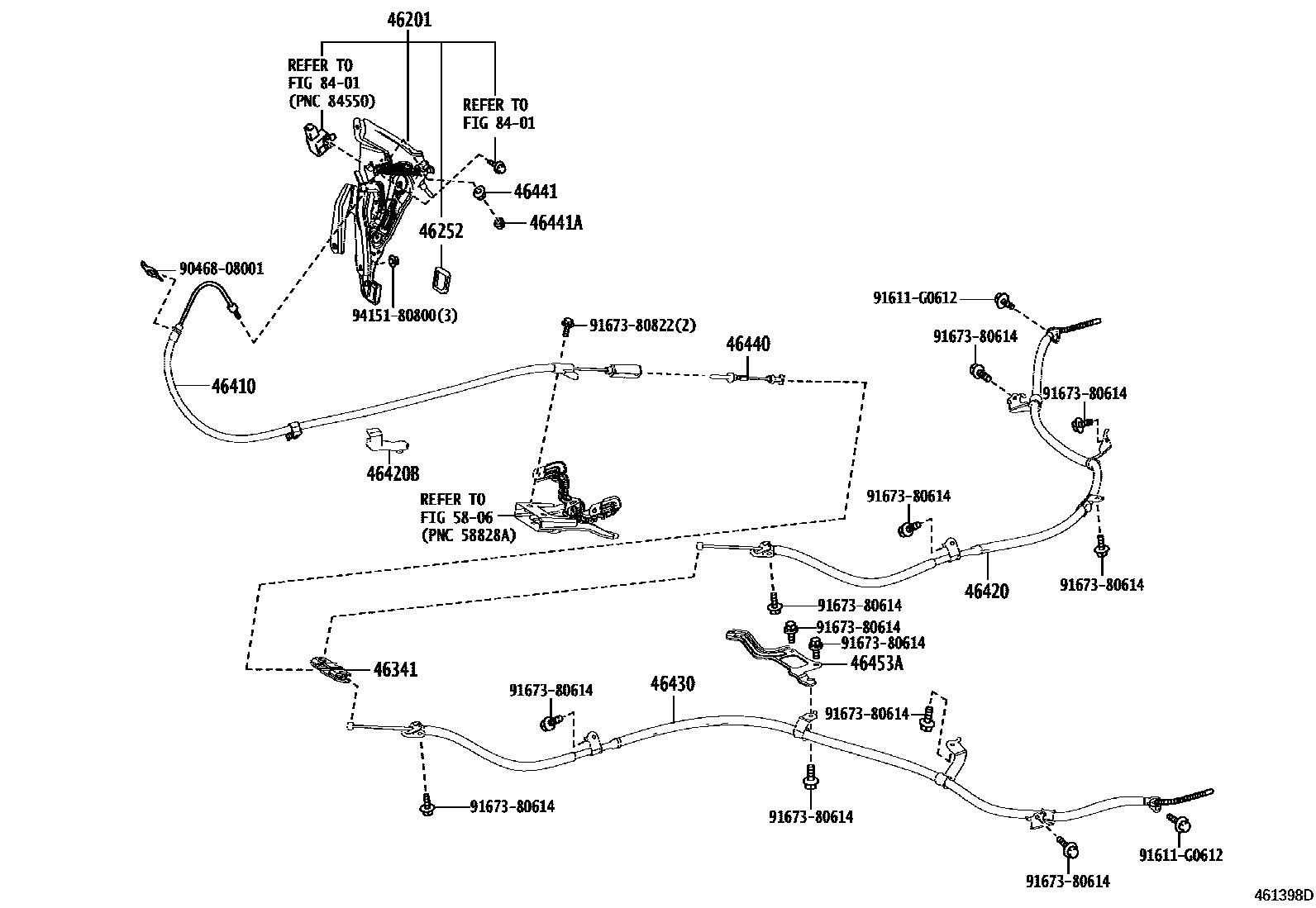

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46250-48010iAVU65,ZSU6#201312-201705

46252PAD, PARKING PEDAL

main46252-22010iAVU65,ZSU6#201312-201705

46341EQUALIZER, PARKING BRAKE

main46341-42020iAVU65,ZSU6#201312-201705

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-48190iAVU65,ZSU6#201312-201705

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-42132iZSU6#201312-201705

main46420-48200iAVU65201401-201705

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-48040iAVU65,ZSU6#201312-201705

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-42132iZSU6#201312-201705

main46430-48200iAVU65201401-201705

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-68020iAVU65,ZSU6#201312-201705

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iAVU65,ZSU6#201312-201705

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iAVU65,ZSU6#201312-201705

46453ABRACKET, CABLE SUPPORT, NO.3

main46451-48290iAVU65201401-201705

5806

8401

9046808001

main90468-08001

91611G0612

main91611-G0612

9167380614

main91673-80614

9167380822

main91673-80822

9415180800

main94151-80800

18 parts on this diagram · 4 diagrams in section
