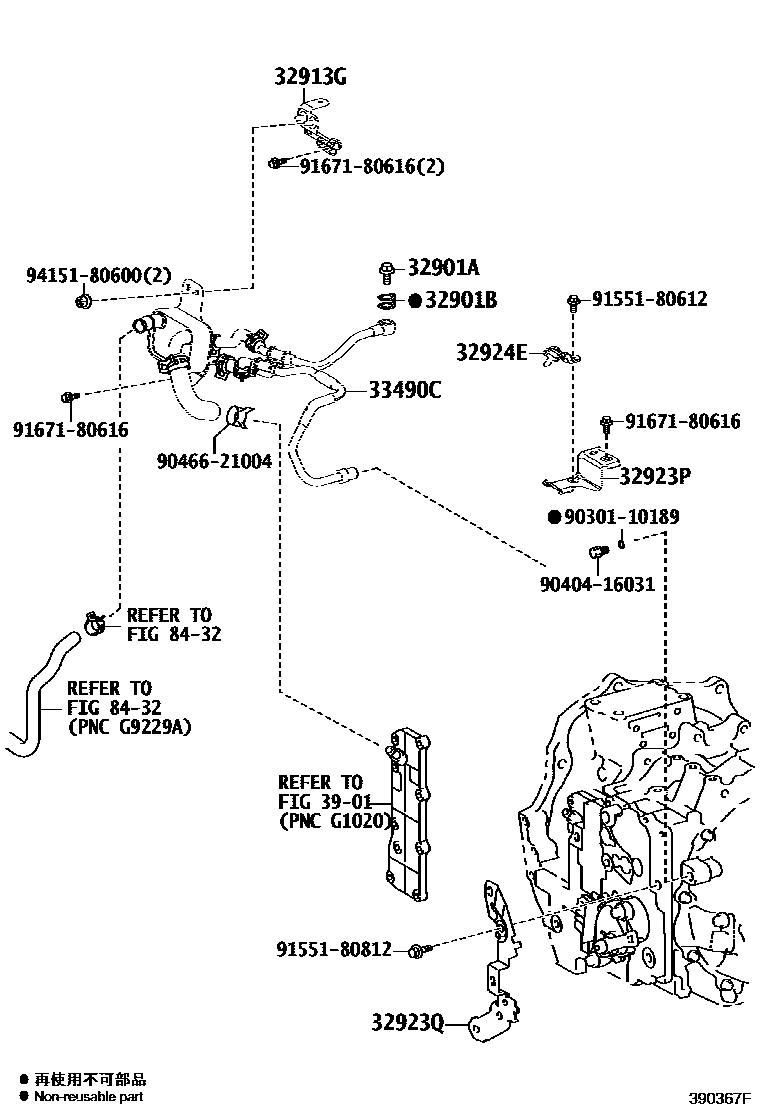

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAVU65201401-201705

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAVU65201401-201705

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-48040iAVU65201401-201705

32923PCLAMP, OIL COOLER TUBE, NO.1

main32925-48010iAVU65201401-201705

32923QCLAMP, OIL COOLER TUBE

main32923-48040iAVU65201401-201705

32924ECLAMP, OIL COOLER TUBE, NO.2

main32927-48010iAVU65201401-201705

33490CCOOLER ASSY, TRANSMISSION OIL

main33490-48010iAVU65201401-201705

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8432INVERTER COOLING

→ Go to FIG 84-32

9030110189

main90301-10189

9040416031

main90404-16031

9046621004

main90466-21004

9155180612

main91551-80612

9155180812

main91551-80812

9167180616

main91671-80616

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
