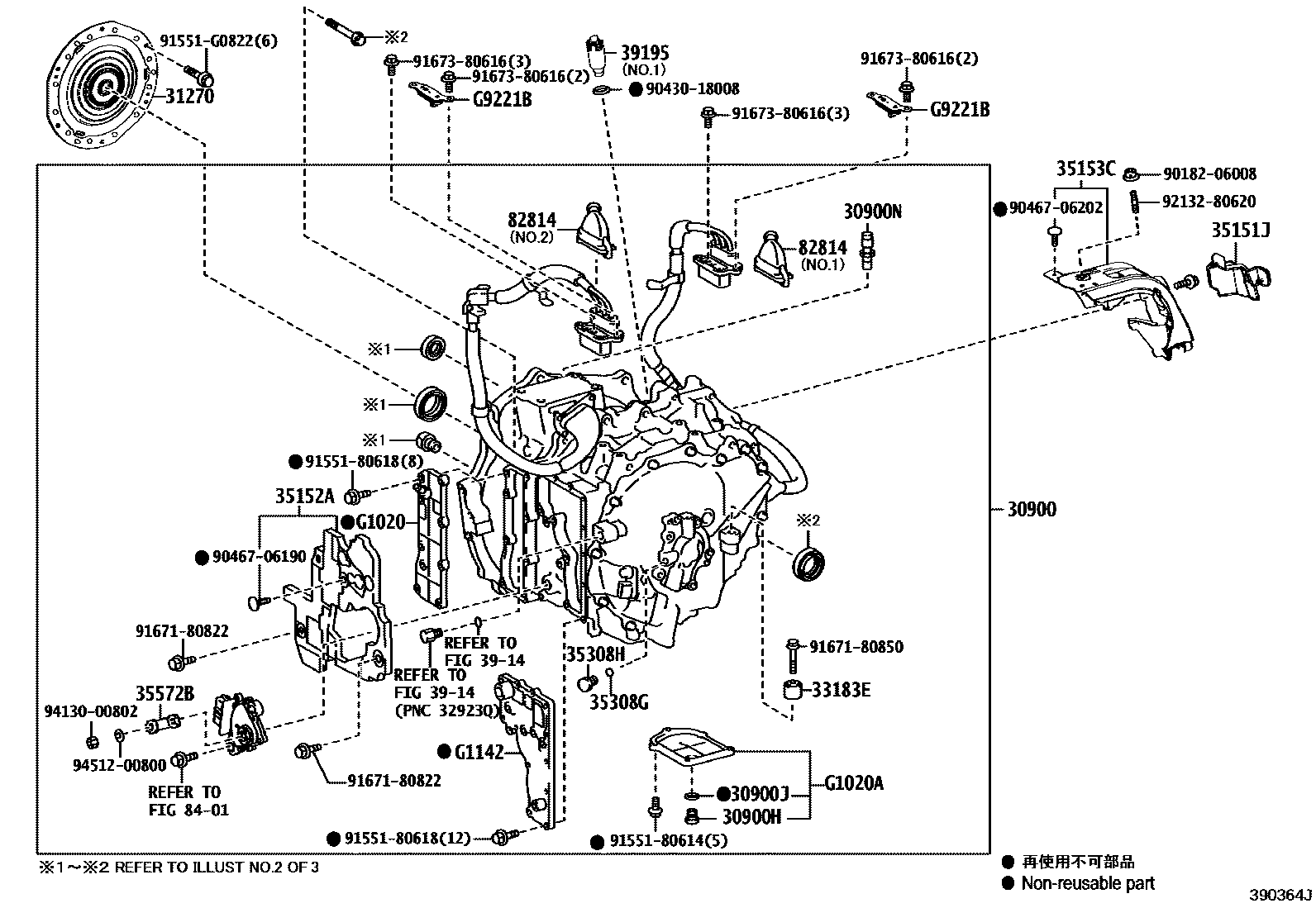

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900HPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)
30900JGASKET, NO.3(FOR TRANSAXLE HOUSING & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
31270DAMPER ASSY, TRANSMISSION INPUT
33183EDAMPER, DYNAMIC
35151JCOVER, AUTOMATIC TRANSMISSION CASE
35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2
35153CCOVER, AUTOMATIC TRANSMISSION CASE, NO.3
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35572BLEVER, TRANSMISSION, OUTER
3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)
82814BOOT, WIRE HARNESS
8401SWITCH & RELAY & COMPUTER
G1020COVER ASSY, MOTOR WATER JACKET, NO.1
G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2
G1142COVER, MOTOR WATERJACET
G9221BCOVER, INVERTER, UPRPER
9018206008
main90182-06008
9043018008
main90430-18008
9046706190
main90467-06190
9046706202
main90467-06202
9155180614
main91551-80614
9155180618
main91551-80618
91551G0822
main91551-G0822
9167180822
main91671-80822
9167180850
main91671-80850
9167380616
main91673-80616
9213280620
main92132-80620
9413000802
main94130-00802
9451200800
main94512-00800
33 parts on this diagram · 3 diagrams in section
