RADIATOR & WATER OUTLET

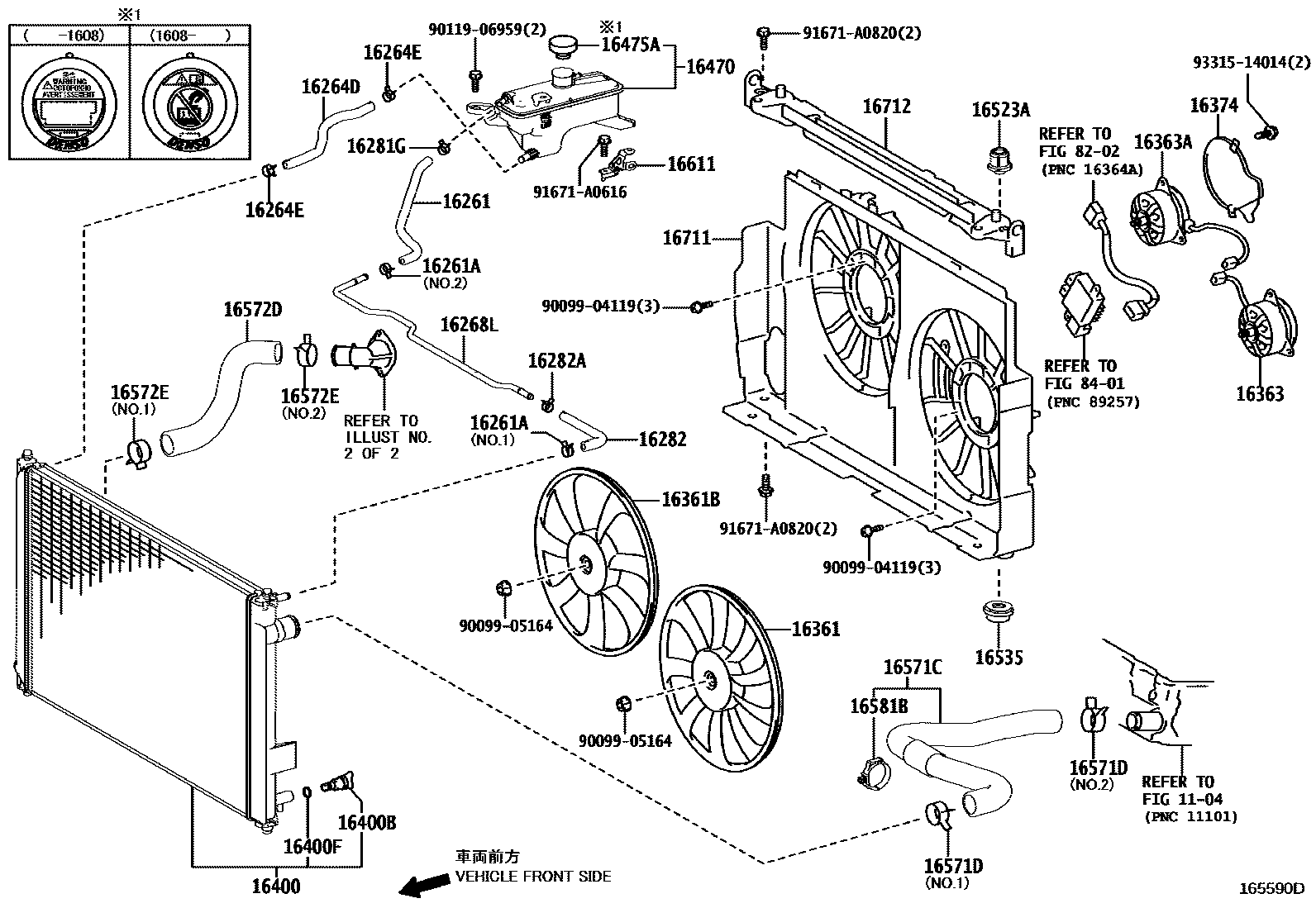

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

16261HOSE, WATER BY-PASS

main16261-36050i201401-201705

main16261-36080i201705

main16261-37022i201312-201705

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022×2i201705

main96136-41901i201401-201705

main96137-41501×2i201705

16264HOSE, WATER BY-PASS, NO.2

main16264-36080i201705

main16264-36090i201705

main16264-37022i201312-201705

16264DHOSE, WATER BY-PASS, NO.2

main16264-36040i201312-201705

main16264-36060i201401-201508

main16264-36100i201705

main16264-36130i201705

16264ECLIP(FOR WATER BY-PASS HOSE NO.2)

main96136-41901×2i201401-201705

16268PIPE, WATER BY-PASS, NO.1

main16268-36170i201705-201806

main16268-36171i201807

main16268-36190i201401-201705

main16268-37041i201312-201401

main16268-37080i201705

16268LPIPE, WATER BY-PASS

main16268-36070i201312-201705

main16268-36120i201705

main16268-36150i201705

16281HOSE, WATER BY-PASS, NO.4

main16281-36040i201705

16281GCLIP(FOR WATER BY-PASS HOSE NO.5)

main90467-15022i201401-201705

16282HOSE, WATER BY-PASS, NO.5

main16282-36030i201312-201705

main16282-36060i201401-201705

main16282-36080i201705

main16282-37080i201705

16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

main90467-15022×2i201312-201705

main96136-41901i201705

main96136-42101×2i201705

16361FAN

main16361-28200i201312-201705

main16361-36140i201401-201705

main16361-36200i201705

16361BFAN, NO.2

main16361-28210i201312-201705

main16361-36150i201401-201705

main16361-36210i201705

16363MOTOR, COOLING FAN

main16363-28020i201312-201705

main16363-31200i201705

main16363-36180i201401-201705

16363AMOTOR, COOLING FAN, NO.2

main16363-28240i201312-201705

main16363-36050i201705

main16363-36190i201705

16374INSULATOR, COOLING FAN MOTOR

main16366-36150i201401-201705

main16366-36170i201712

16400RADIATOR ASSY

main16400-28560i201312-201705

main16400-36080i201705

main16400-36081i201502-201611

main16400-36100i201705

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i201312-201705

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i201503-201705

16470TANK ASSY, RADIATOR RESERVE

main16470-28111i201312-201409

main16470-28112i201410-201607

main16470-28113i201608-201705

16475ACAP, RESERVE TANK

main16475-28140i201608-201701

main16475-37010i201401-201409

main16475-37011i201410-201608

16523ACUSHION, RADIATOR SUPPORT

main16523-21060×2i201401-201705

16535SUPPORT, RADIATOR, LOWER

main16535-20030×2i201312-201705

main16535-28060×2i201401-201705

16571HOSE, RADIATOR, INLET

main16571-37130i201312-201705

main16571-37230i201810

16571CHOSE, RADIATOR, NO.1

main16571-36160i201401-201705

main16571-36180i201705

16571DCLIP, RADIATOR HOSE, NO.1

main90467-13128i201312-201705

main96136-44301i201401-201705

main96136-44801i201705

16572HOSE, RADIATOR, OUTLET

main16572-37160i201705

16572DHOSE, RADIATOR, NO.2

main16572-36160i201401-201705

main16572-36260i201705

16572ECLIP, RADIATOR HOSE, NO.2

main96136-44301i201401-201705

main96136-44801i201401-201705

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-33080×3i201705

main16581-37010i201705

main16581-37100i201705

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-26040i201401-201705

16611BRACKET, RADIATOR RESERVE TANK

main16611-28030i201312-201612

main16611-36010i201701-201705

16711SHROUD, FAN

main16711-36180i201705

main16711-36210i201705

main16711-37100i201312-201705

16712SHROUD, FAN, NO.2

main16712-36030i201312-201705

main16712-36040i201401-201705

main16712-36050i201705

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9009904119

main90099-04119

9009905164

main90099-05164

9011906959

main90119-06959

91671A0616

main91671-A0616

91671A0820

main91671-A0820

9331514014

main93315-14014

43 parts on this diagram · 10 diagrams in section
