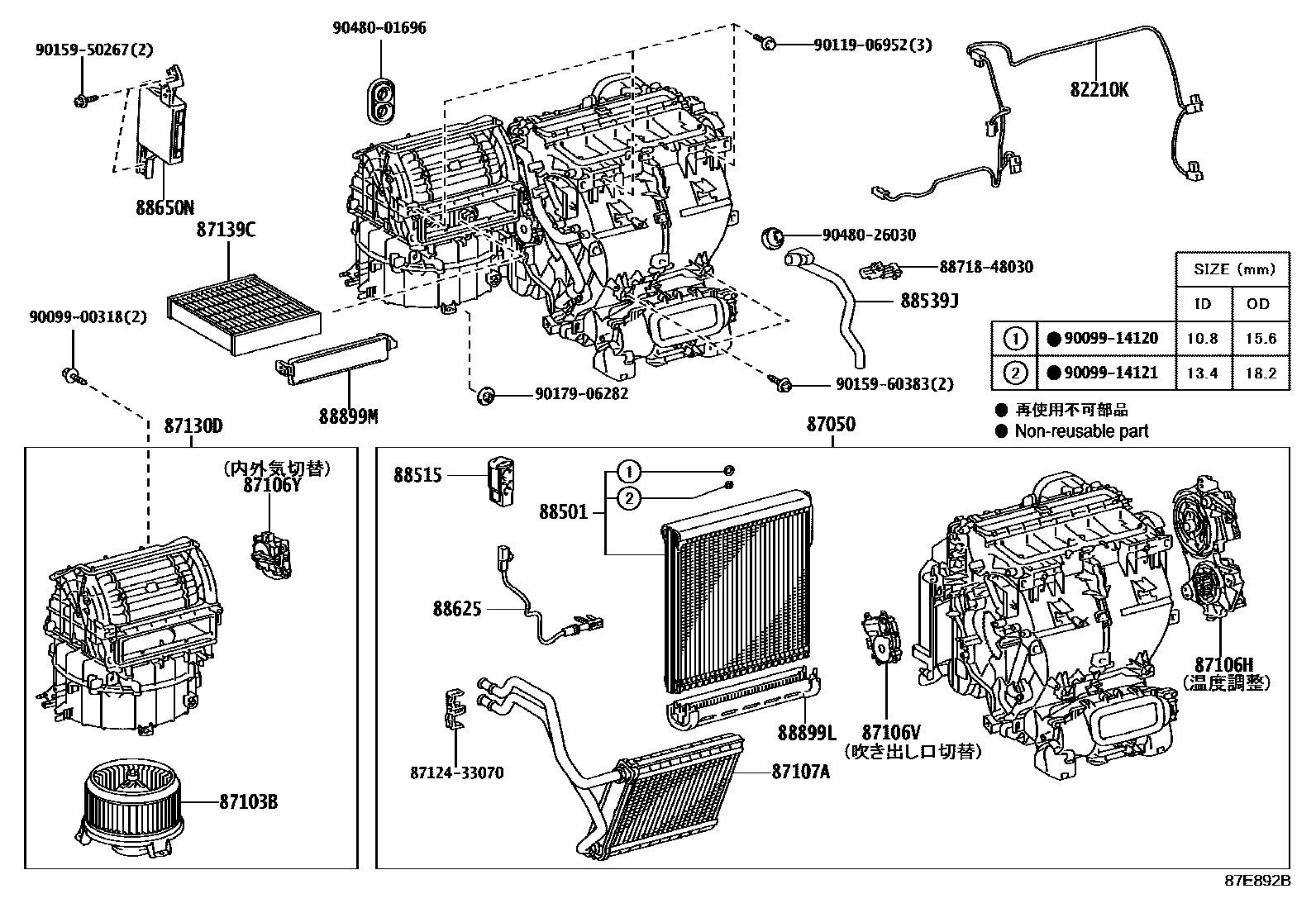

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-33011iAGL10,GGL1#,GYL1#201203

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48340iGGL1#200812-201203

main87050-48341iGGL1#201503

main87050-48370iAGL10,GYL1#200903-201203

main87050-48371iAGL10,GYL1#201503

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-48070iAGL10,GGL1#,GYL1#200812-201203

main87103-48090iAGL10,GGL1#,GYL1#201203-201308

main87103-48150iAGL10,GGL1#,GYL1#201308

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-33290iAGL10,GGL1#,GYL1#200812-201203

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-33260iAGL10,GGL1#,GYL1#200812-201203

87106YSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH)

main87106-33280iAGL10,GGL1#,GYL1#200812-201203

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33120iAGL10,GGL1#,GYL1#200812-201203

87130DBLOWER ASSY

main87130-48210iGGL1#200812-201203

main87130-48230iAGL10,GYL1#200903-201203

main87130-48260iGGL1#201203-201308

main87130-48261iGGL1#201308

main87130-48270iAGL10,GYL1#201203-201308

main87130-48271iAGL10,GYL1#201308

87139CFILTER, CLEAN AIR

main87139-30040iAGL10,GGL1#,GYL1#200812-201203

main87139-50060iAGL10,GGL1#,GYL1#200812-201203

main87139-50100iAGL10,GGL1#,GYL1#201205-201509

main87139-52040iAGL10,GGL1#,GYL1#201203-201509

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33300iAGL10,GYL1#201503

main88501-33310iGGL1#201503

main88501-48300iGYL1#200903-201007

main88501-48301iAGL10,GYL1#201007-201203

main88501-48310iGGL1#200812-201007

main88501-48311iGGL1#201007-201203

88515VALVE, COOLER EXPANSION

main88515-33020iAGL10,GGL1#,GYL1#200812-201203

88539JHOSE, DRAIN COOLER

main88539-48040iAGL10,GGL1#,GYL1#200812-201203

88625THERMISTOR, COOLER, NO.1

main88625-33190iAGL10,GGL1#,GYL1#200812-201203

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-48360supersedes 88650-48350iGGL1#200812-200908

main88650-48361supersedes 88650-48351iGGL1#200908-201008

main88650-48390supersedes 88650-48380iGYL1#200903-200907

main88650-48391supersedes 88650-48690iGYL1#200908-201009

main88650-48392supersedes 88650-48382iGYL1#201108-201109

main88650-48480supersedes 88650-48470iAGL10,GGL1#201008-201010

main88650-48481supersedes 88650-48660iAGL10,GGL1#201010-201107

main88650-48610supersedes 88650-48600iAGL10,GGL1#201203

main88650-48640supersedes 88650-48690iGYL1#201203

main88650-48670supersedes 88650-48660iAGL10,GGL1#201110-201203

main88650-48700supersedes 88650-48690iGYL1#201110-201203

88899LPARTS, COOLING UNIT

main88899-33050iGYL15,16200904-201203

88899MPLATE, COVER(FOR AIR FILTER)

main88899-33040iAGL10,GGL1#,GYL1#200812-201203

8712433070CLAMP, HEATER

main87124-33070

8871848030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48030

9009900318

main90099-00318

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015950267

main90159-50267

9015960383

main90159-60383

9017906282

main90179-06282

9048001696

main90480-01696

9048026030

main90480-26030

27 parts on this diagram · 1 diagram in section
