SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0E120×2iGGL1#,GYL1#200812-201008

main86160-0WL50×2supersedes 86160-48280iAGL10,GGL1#,GYL1#200812-201203

86160BSPEAKER ASSY, REAR

main86160-0E170×2iGGL1#,GYL1#200812-201008

main86160-0WG20×2supersedes 86160-48290iAGL10,GGL1#,GYL1#200812-201203

86160JSPEAKER ASSY, FRONT NO.3

main86160-0E100iGGL1#,GYL1#200812-201008

main86160-0E110iGGL1#,GYL1#200812-201008

main86160-0WL30supersedes 86160-48270iAGL10,GGL1#,GYL1#201203

main86160-0WL40supersedes 86160-48270iAGL10,GGL1#,GYL1#201203

86160LSPEAKER ASSY, FRONT NO.4

main86160-0E010iAGL10201008-201008

main86160-0WL00supersedes 86160-48320iAGL10,GGL1#,GYL1#200812-201203

86160PSPEAKER ASSY, FRONT NO.2

main86160-0E020iGGL1#,GYL1#200812-201008

main86160-0E090iAGL10201008-201008

main86160-0WL10supersedes 86160-48340iAGL10,GGL1#,GYL1#201203-201509

main86160-0WL20supersedes 86160-48340iAGL10,GGL1#,GYL1#200812-201203

86160USPEAKER ASSY, QUARTER SIDE

main86160-0WL90iAGL10,GGL1#,GYL1#201203

main86160-0WM00iAGL10,GGL1#,GYL1#200812-201203

86160YSPEAKER ASSY, REAR NO.2

main86160-0E130×2iGGL10,15,GYL10,15; GGL16,GYL16200812-201008

main86160-48300×2iAGL10,GGL10,15,GYL10,15; GGL16,GYL16201009-201203

main86160-0WL60×2iAGL10,GGL1#,GYL1#201203-201509

86160ZSPEAKER ASSY, REAR NO.3

main86160-0E180iGGL10,15,GYL10,15; GGL16,GYL16200812-201008

main86160-48310iAGL10,GGL10,15,GYL10,15; GGL16,GYL16201009-201203

main86160-48350iAGL10,GGL1#,GYL10,15; GYL16201203

main86160-0WM10iAGL10,GGL1#,GYL1#201203

86219DBRACKET, SPEAKER, REAR NO.1

main86219-48010iAGL10,GGL1#,GYL10,15; GYL16201203

9015950311

main90159-50311

9015960303

main90159-60303

9017906308

main90179-06308

9018906227

main90189-06227

9155380614

main91553-80614

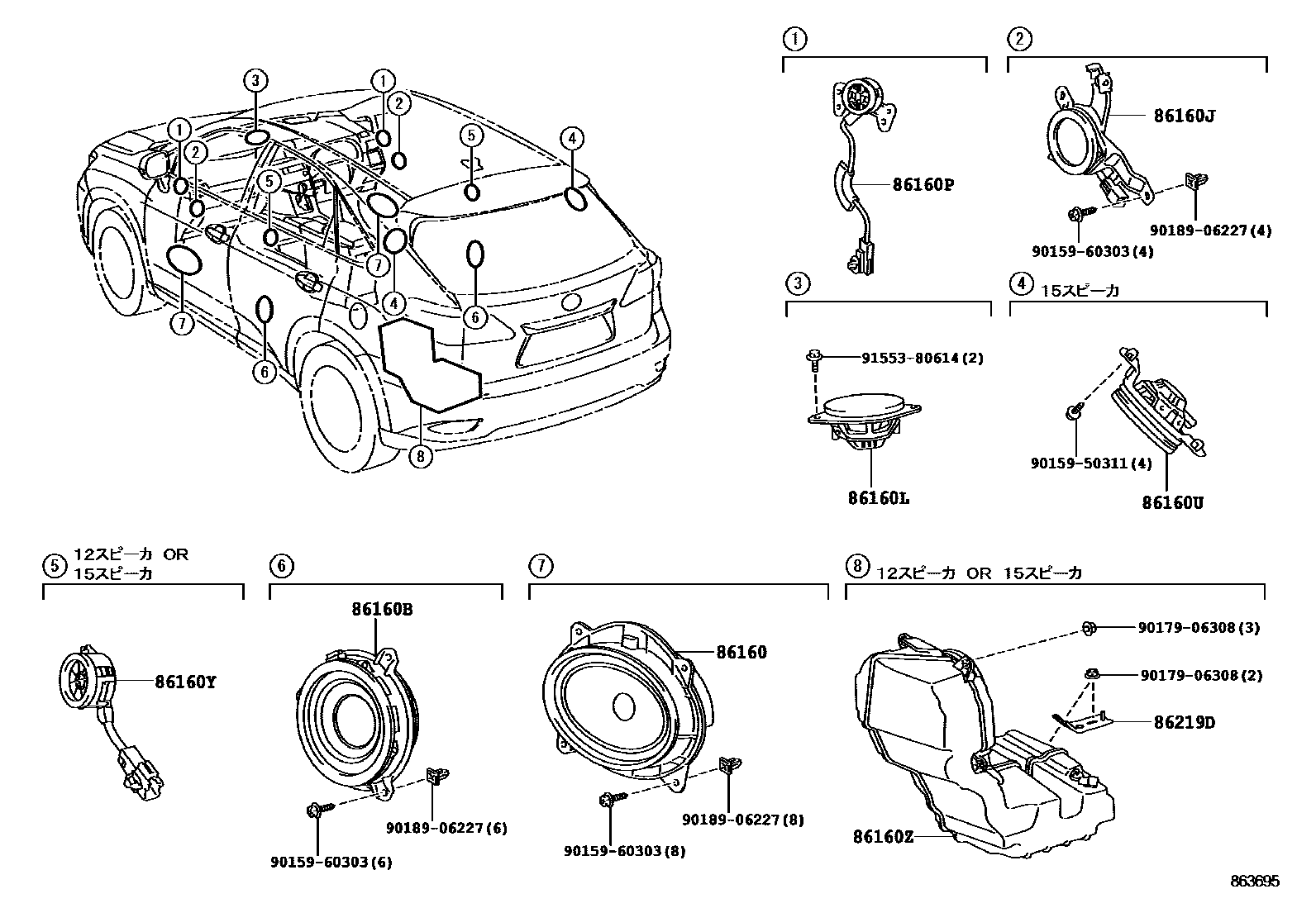

14 parts on this diagram · 1 diagram in section
