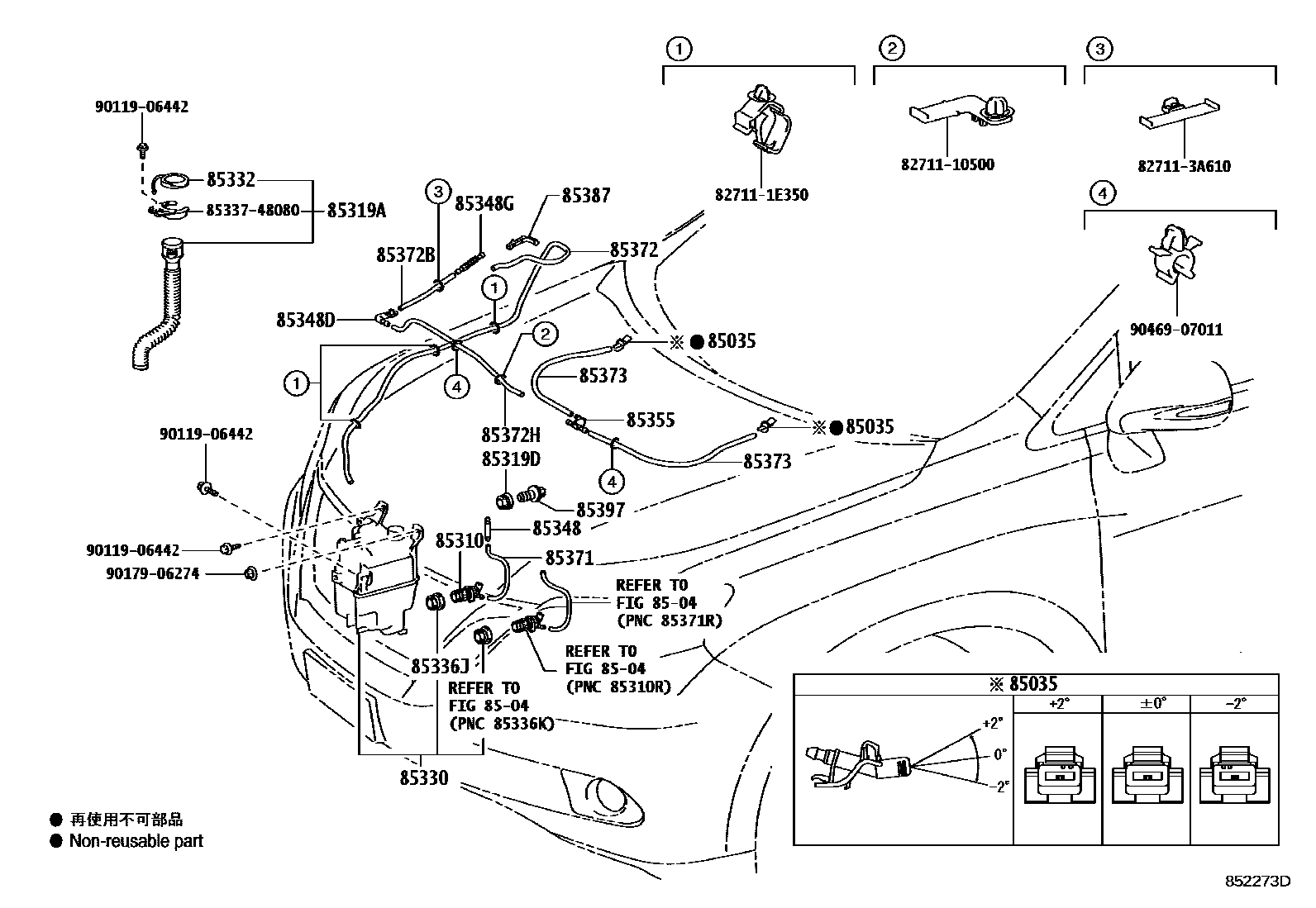

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i201203

main85381-12310×2i200812-201203

main85381-12320×2i201203

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i201008-201203

main85330-71010i200812-201203

85319AHOSE, INLET

main85319-48170i200812-201203

main85319-48171i201308

main85319-48180i200903-201203

main85359-48062i201308

85319DPACKING, FRONT WASHER

main85319-33230i201203

85330JAR ASSY, WINDSHIELD WASHER

main85315-48170i200812-201203

main85315-48210i201308-201509

main85355-48040supersedes 85315-48180i201008-201203

main85355-48050i201203-201308

main85355-48052i201308-201509

main85355-48060i201203-201308

85332CAP, WINDSHIELD WASHER JAR

main85316-48050i200812-201203

main85316-48171i201308

main85316-48181i201308

main85386-60070i201203-201308

85336JPROTECTOR, WASHER JAR

main85336-60300i201203-201308

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-32150i200812-201203

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-16160i200812-201203

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-32150i200812-201203

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200812-201203

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200812-201203

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200812-201203

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i200812-201203

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i200812-201203

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200812-201203

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-48320i200812-201203

85397SWITCH ASSY,LEVEL WARNING

main85397-52100i200812-201203

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10500

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

827113A610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A610

8533748080CASE, LEVEL WARNING SWITCH

main85337-48080

9011906442

main90119-06442

9017906274

main90179-06274

9046907011

main90469-07011
