AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iAGL10,GGL1#,GYL1#200812-201203

89170ACOMPUTER ASSY, AIRBAG

main89170-48290iGGL16200812-201008

main89170-48580iGYL1#201203-201509

main89170-48300supersedes 89170-48690iGGL16200812-201008

main89170-48370supersedes 89170-48660iGYL10,15; GYL16201109-201203

main89170-48690supersedes 89170-48650iAGL10,GGL10,15; GGL16201105-201109

main89170-48750supersedes 89170-48660iGYL10,15; GYL16201105-201109

89173ASENSOR, AIRBAG, FRONT RH

main89173-39375iAGL10,GGL1#,GYL1#200812-201203

main89173-39455iAGL10,GGL1#,GYL1#201203

89174ASENSOR, AIRBAG, FRONT LH

main89173-39375iAGL10,GGL1#,GYL1#200812-201203

main89173-39455iAGL10,GGL1#,GYL1#201203

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iAGL10,GGL1#,GYL1#200812-201203

89833SENSOR, AIRBAG, REAR RH

main89831-0E100iAGL10,GGL1#,GYL1#201209

main89831-12010iAGL10,GGL1#,GYL1#200812-201203

main89831-75020iAGL10,GGL1#,GYL1#201203-201209

89834SENSOR, AIRBAG, REAR LH

main89831-0E100iAGL10,GGL1#,GYL1#201209

main89831-12010iAGL10,GGL1#,GYL1#200812-201203

main89831-75020iAGL10,GGL1#,GYL1#201203-201209

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-48030iAGL10,GGL1#,GYL1#200812-201203

main89831-48040iAGL10,GGL1#,GYL1#201203

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-48030iAGL10,GGL1#,GYL1#200812-201203

main89831-48040iAGL10,GGL1#,GYL1#201203

9011908C89

main90119-08C89

9014860038

main90148-60038

9155380620

main91553-80620

91553A0625

main91553-A0625

9415180600

main94151-80600

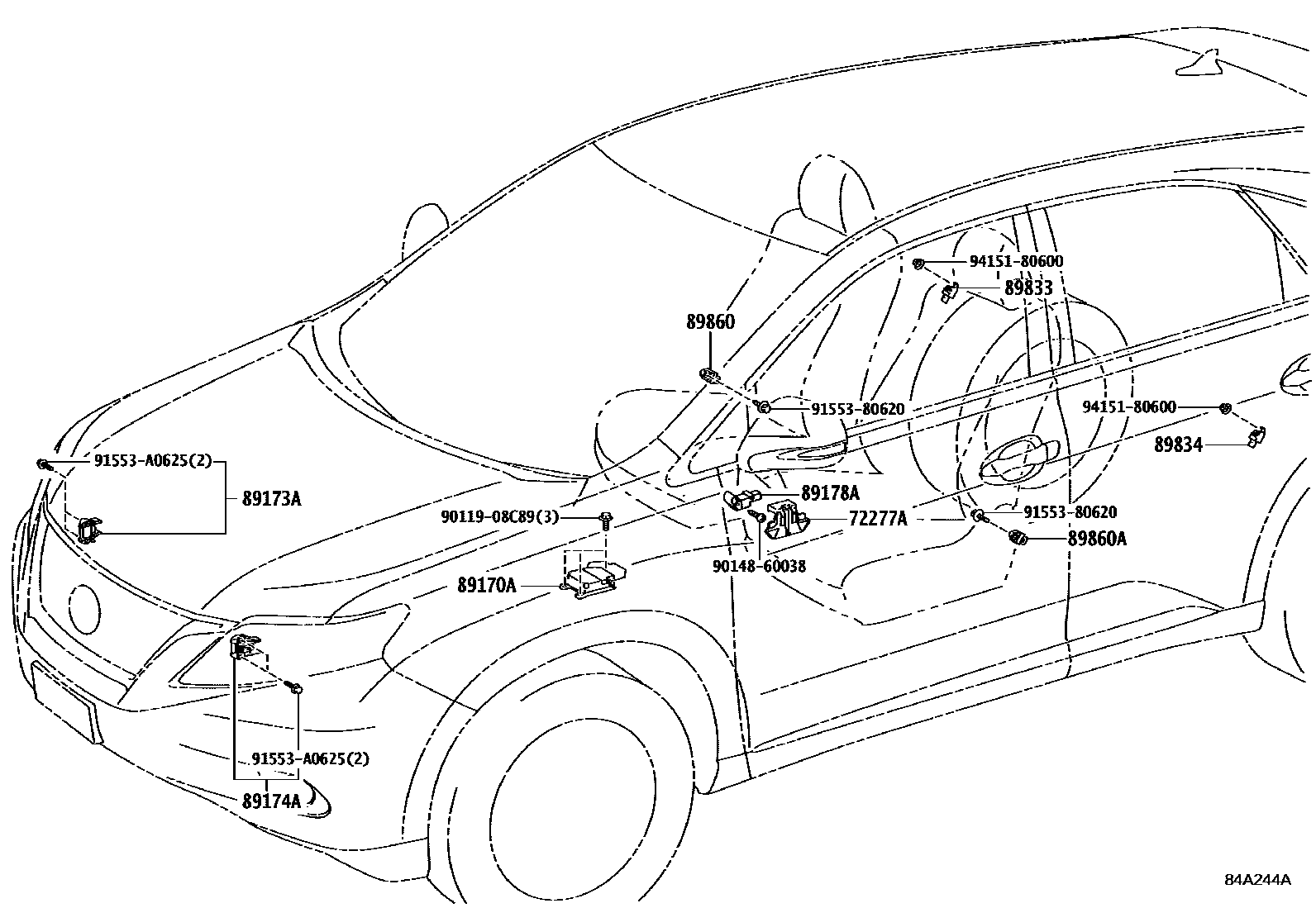

14 parts on this diagram · 1 diagram in section
