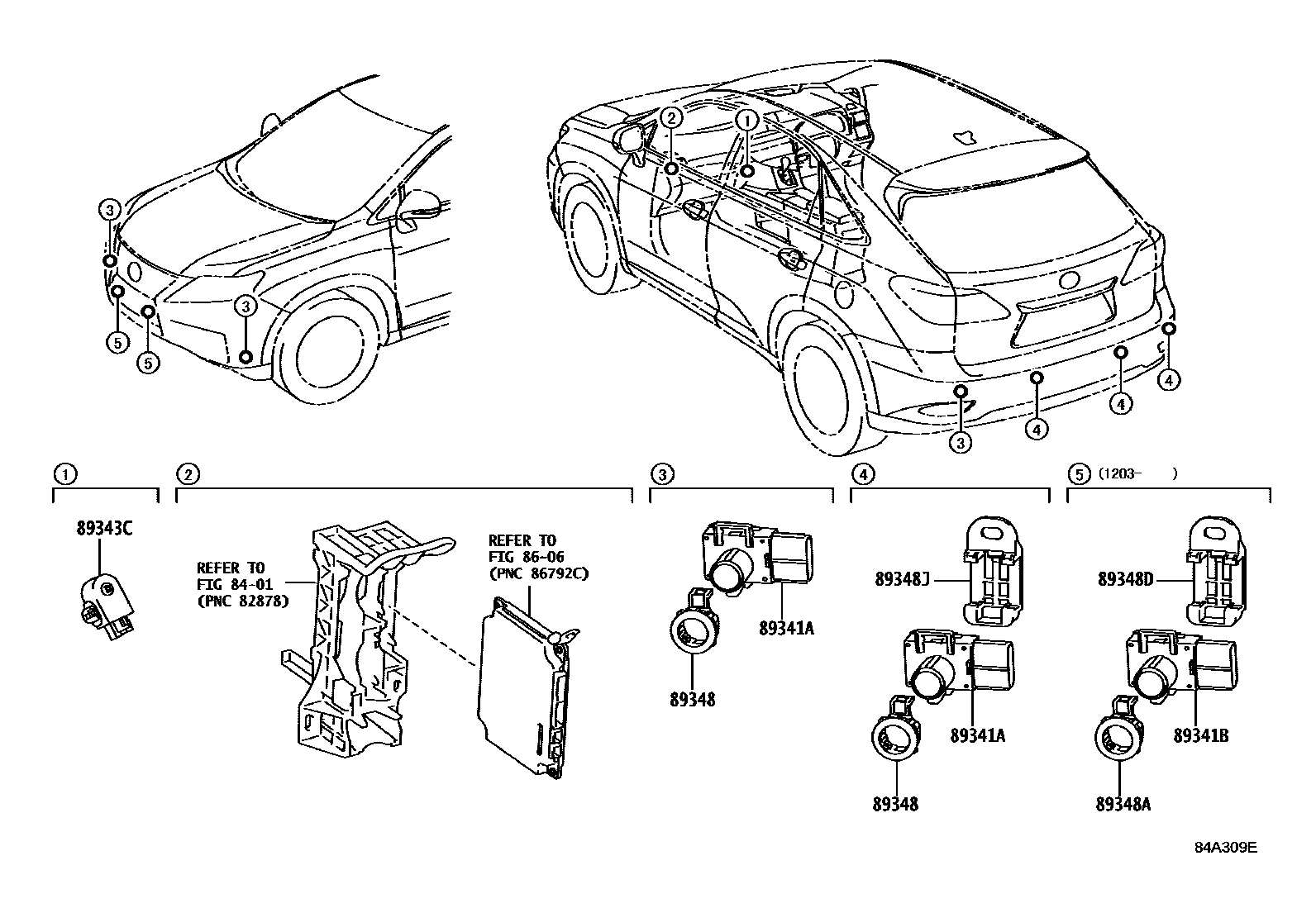

CLEARANCE & BACK SONAR

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89341ASENSOR, ULTRASONIC, NO.1

main89341-33190-A2×6iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-A3×6iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-B7×6iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-B9×6iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-C3×6iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-C4×6iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-D3×6iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-E3×6iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-E5×6iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-J5×6iAGL10,GGL1#,GYL1#201203-201212

main89341-33210-A2×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-A3×6iGGL15,GYL15201301-201509

main89341-33210-A4×6iAGL10,GGL1#,GYL1#201301-201509

main89341-33210-B5×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-B6×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-B7×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-C2×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-C3×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-D1×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-E6×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-E7×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-J5×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-48010-A0×6iAGL10,GGL1#,GYL1#200812-201203

main89341-48010-A1×6iGGL1#,GYL1#200903-201203

main89341-48010-B0×6iAGL10,GGL1#,GYL1#200812-201108

main89341-48010-B4×6iAGL10,GGL1#,GYL1#200812-201203

main89341-48010-C0×6iAGL10,GGL1#,GYL1#200812-201203

main89341-48010-C4×6iGYL1#200910-201203

main89341-48010-C5×6iAGL10,GGL1#,GYL1#201008-201203

main89341-48010-D0×6iAGL10,GGL1#,GYL1#200812-201203

main89341-48010-E0×6iGGL1#,GYL1#200812-201008

main89341-48010-E1×6iGGL1#,GYL1#200812-201008

main89341-48010-E4×6iAGL10,GGL1#,GYL1#201008-201203

main89341-48010-J0×6iGGL1#,GYL1#200812-201008

main89341-48010-J1×6iAGL10,GGL1#,GYL1#200812-201203

main89341-48010-P3×6iAGL10,GGL1#,GYL1#201108-201203

89341BSENSOR, ULTRASONIC, NO.2

main89341-33190-A2×2iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-A3×2iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-B7×2iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-B9×2iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-C3×2iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-C4×2iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-D3×2iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-E3×2iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-E5×2iAGL10,GGL1#,GYL1#201203-201212

main89341-33190-J5×2iAGL10,GGL1#,GYL1#201203-201212

main89341-33210-A2×2iAGL10,GGL1#,GYL1#201301-201509

main89341-33210-A3×2iGGL15,GYL15201301-201509

main89341-33210-A4×2iAGL10,GGL1#,GYL1#201301-201509

main89341-33210-B5×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-B6×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-B7×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-C2×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-C3×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-D1×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-E6×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89341-33210-E7×2iAGL10,GGL1#,GYL1#201301-201509

main89341-33210-J5×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-72010iAGL10,GGL1#,GYL1#201203

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33060-A3×6iAGL10,GGL1#,GYL1#200812-201203

main89348-33060-A5×6iGGL1#,GYL1#200903-201203

main89348-33060-B7×6iAGL10,GGL1#,GYL1#200812-201108

main89348-33060-C1×6iAGL10,GGL1#,GYL1#200812-201203

main89348-33060-C3×6iGYL1#200910-201203

main89348-33060-C4×6iAGL10,GGL1#,GYL1#201008-201203

main89348-33060-D4×6iAGL10,GGL1#,GYL1#200812-201203

main89348-33060-E4×6iGGL1#,GYL1#200812-201008

main89348-33060-E6×6iGGL1#,GYL1#200812-201008

main89348-33060-J6×6iGGL1#,GYL1#200812-201008

main89348-33060-J7×6iAGL10,GGL1#,GYL1#200812-201203

main89348-33060-L0×6iAGL10,GGL1#,GYL1#201008-201203

main89348-33060-P2×6iAGL10,GGL1#,GYL1#200812-201203

main89348-33060-P9×6iAGL10,GGL1#,GYL1#201108-201203

main89348-33100-A2×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-A3×6iAGL10,GGL1#,GYL1#201203-201308

main89348-33100-A5×6iGGL15,GYL15201308-201509

main89348-33100-B7×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-B8×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-C2×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-C3×6iAGL10,GGL1#,GYL1#201203-201509

main89348-33100-D1×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-E3×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-E4×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-J4×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-P0×6iAGL10,GGL10,GYL10,15; GGL15201408-201509

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-33100-A2×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-A3×2iAGL10,GGL1#,GYL1#201203-201308

main89348-33100-A5×2iGGL15,GYL15201308-201509

main89348-33100-B7×2iAGL10,GGL1#,GYL1#201203-201509

main89348-33100-B8×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-C2×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-C3×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-D1×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-E3×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-E4×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-J4×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

main89348-33100-P0×2iAGL10,GGL10,GYL10,15; GGL15201408-201509

89348DCLIP, ULTRASONIC SENSOR

main89348-33090×3iAGL10,GGL1#,GYL1#200812-201203

89348JCLIP, ULTRASONIC SENSOR

main89348-33090×3iAGL10,GGL1#,GYL1#200812-201203

9 parts on this diagram · 1 diagram in section
