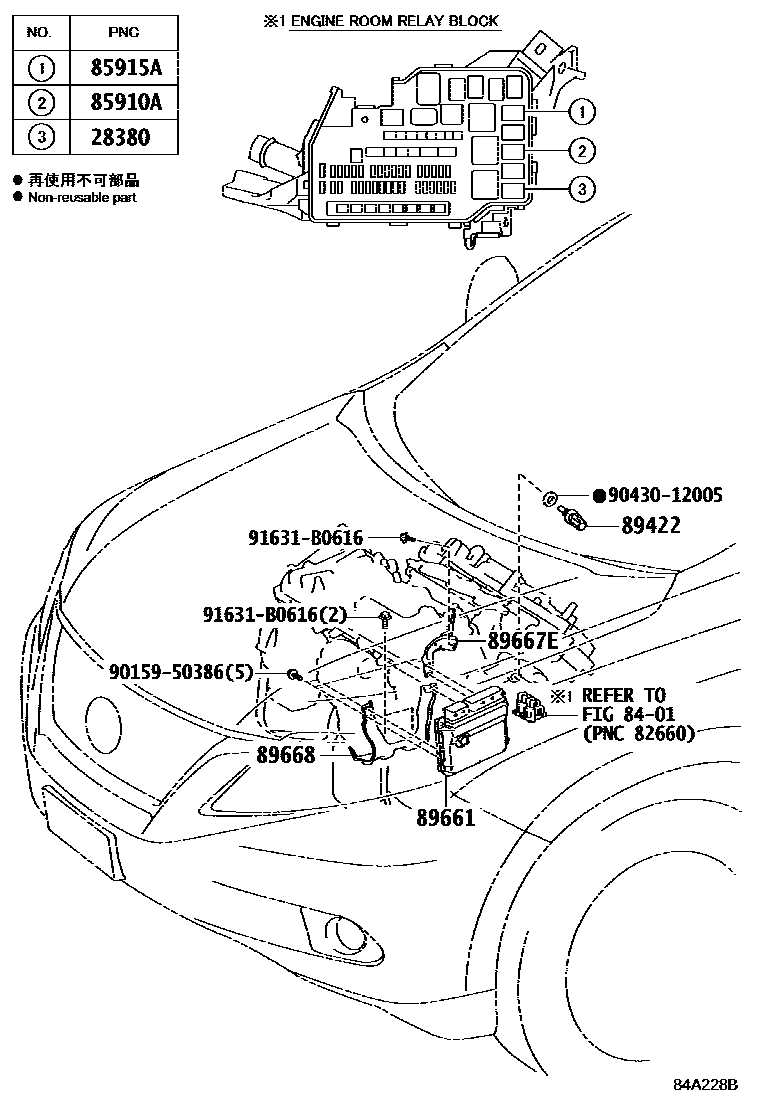

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

28380RELAY ASSY, FUEL PUMP

main90987-04004i2GR#..GGL1#,GYL1#201203-201509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iAGL10,GGL1#,GYL1#201203-201509

85915ARELAY, MAIN

main90987-02027iAGL10,GGL1#,GYL1#200812-201203

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAGL10,GGL1#,GYL1#200812-201203

89661COMPUTER, ENGINE CONTROL

main89661-48D40iGGL10200812-201108

main89661-48D50iGGL15,16200812-201108

main89661-48E30iGYL1#200903-201008

main89661-48F90iGYL1#201203

main89661-48J30iAGL10201008-201101

main89661-48J31iAGL10201102-201203

main89661-48K00iGGL10201108-201203

main89661-48K10iGGL15,16201108-201203

main89661-48L00iAGL10201203

main89661-48N20iGGL10201203

main89661-48N30iGGL15201203

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-48110iAGL10,GGL1#200812-201203

main89667-48120iGYL1#200903-201203

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48090iAGL10,GGL1#200812-201203

main89668-48100iGYL1#201203

9015950386

main90159-50386

9043012005

main90430-12005

91631B0616

main91631-B0616

11 parts on this diagram · 3 diagrams in section
