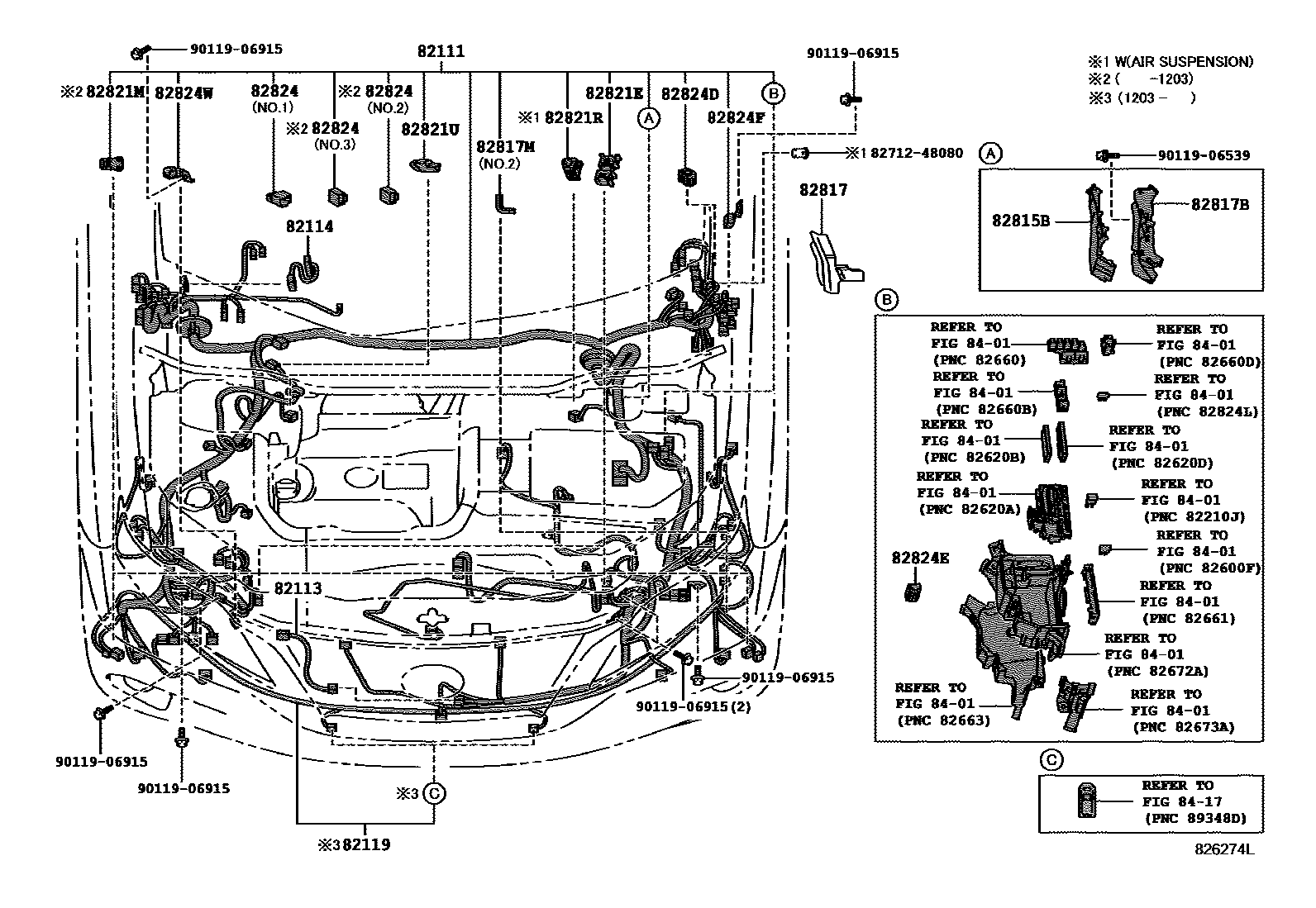

82111WIRE, ENGINE ROOM MAIN

main82111-48N00iGGL16200812-200907

main82111-48N01iGGL16200908-201008

main82111-48N02iGGL16201008-201108

main82111-48N03iGGL16201108-201203

main82111-48S11iGYL15201008-201108

main82111-48S12iGYL15201108-201203

main82111-48S21iGYL16201008-201108

main82111-48S22iGYL16201108-201203

main82111-48T41iGYL10201008-201108

main82111-48T42iGYL10201108-201203

main82111-48T90iAGL10201008-201203

main82111-48V00iGGL1#201403-201509

main82111-48V10iAGL10201403-201509

main82111-48W00iGYL15201403-201509

main82111-48X60iGYL15201203-201308

main82111-48X61iGYL15201308-201403

main82111-48X70iGYL16201203-201308

main82111-48X71iGYL16201308-201403

main82111-48Y10iGYL10201203-201308

main82111-48Y11iGYL10201308-201403

main82111-48Y40iGGL1#201203-201308

main82111-48Y41iGGL1#201308-201403

main82111-48Y60iAGL10201203-201308

main82111-48Y61iAGL10201308-201403

main82111-48Z50iGYL16201403-201509

main82111-48Z90iGYL10201403-201509

main82111-48N30iGGL10,15200812-200907

main82111-48N31iGGL10,15200908-201008

main82111-48N32iGGL10,15201008-201108

main82111-48N33iGGL10,15201108-201203

main82111-48S10iGYL15200903-201008

main82111-48S20iGYL16200903-201008

main82111-48T40iGYL10200910-201008

82113WIRE, ENGINE ROOM, NO.3

main82113-48010iAGL10,GGL1#,GYL1#201203

main82113-48030iGGL1#,GYL1#201203-201308

main82113-48031iGGL1#,GYL1#201308

82114WIRE, ENGINE ROOM, NO.4

main82114-48010iGGL1#,GYL1#200812-201203

main82114-48040iGGL1#,GYL1#201203-201308

main82114-48041iGGL1#,GYL1#201308

82119WIRE, SENSOR

main82119-48010iAGL10,GGL1#,GYL1#201203-201308

main82119-48011iAGL10,GGL1#,GYL1#201308-201509

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-48480iAGL10,GGL1#,GYL1#200812-201203

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-48J90iGYL1#201009-201203

main82817-48K20iGYL1#200903-201009

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-48C10iAGL10,GGL1#,GYL1#200812-201203

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-48C40iGYL1#201203

main82817-95J00iGYL1#200903-201203

82821ECOVER, CONNECTOR

main82821-30650×2iAGL10,GGL1#,GYL1#200812-201203

82821MCOVER, CONNECTOR

main82821-12580×2iAGL10,GGL16,GYL1#; GGL10,15200812-201203

82821RCOVER, CONNECTOR

main82821-30600×4iGGL16,GYL16200812-201203

82821UCOVER, CONNECTOR

main82821-22120iAGL10,GGL1#201203-201308

82824CONNECTOR, WIRING HARNESS

main82824-22070iAGL10,GGL1#200812-201203

main82824-22080×2iGYL1#200903-201203

main82824-50350×2iAGL10,GGL1#,GYL1#200907-201203

82824DCONNECTOR, WIRING HARNESS

main82824-22120×2iAGL10,GGL1#; GYL1#201203

82824ECONNECTOR, WIRING HARNESS

main82824-44020iAGL10,GGL1#,GYL1#200812-201203

82824FCONNECTOR, WIRING HARNESS

main82824-48070iAGL10,GGL1#,GYL1#201203

82824WCONNECTOR, WIRING HARNESS

main82824-48020×2iAGL10,GGL1#; GYL1#201203

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8271248080CLAMP, WIRING HARNESS

main82712-48080

9011906539

main90119-06539

9011906915

main90119-06915
