HEADLAMP
52133JREINFORCEMENT, FRONT BUMPER BAR, RH
52134JREINFORCEMENT, FRONT BUMPER BAR, LH
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
81110FGEAR UNIT ASSY, RH NO.1
81129AREFLECTOR, HEADLAMP, RH
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81135CCOVER, HEADLAMP BACK, NO.1
81150HEADLAMP ASSY, LH
81150FGEAR UNIT ASSY, LH NO.1
81169REFLECTOR, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
85661MOTOR, HEADLAMP LEVELING, RH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
85691MOTOR, HEADLAMP LEVELING, LH
9007502025
main90075-02025
9007502056
main90075-02056
9007502727
main90075-02727
9010906382
main90109-06382
9015950388
main90159-50388
9018905142
main90189-05142

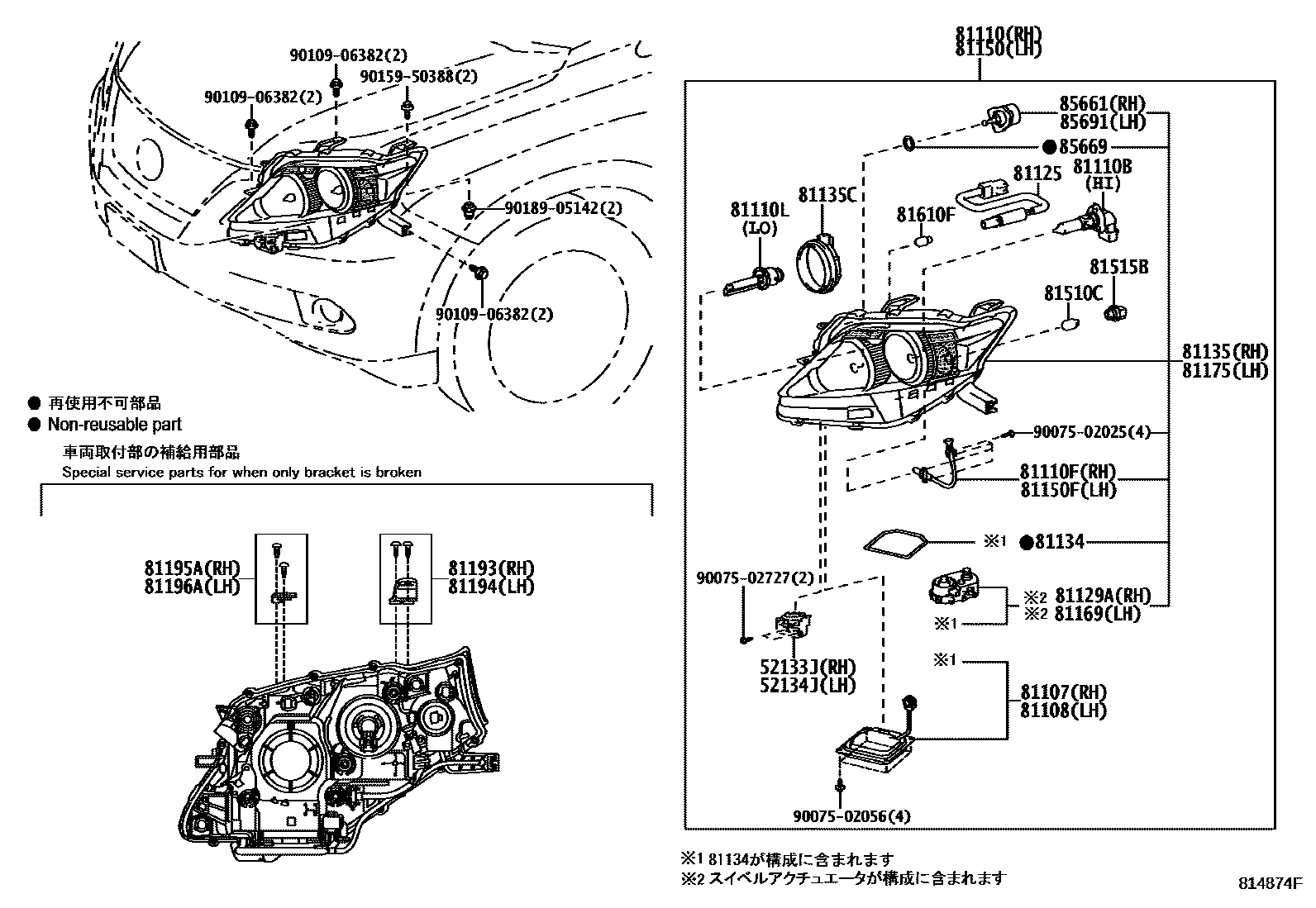

33 parts on this diagram · 3 diagrams in section
