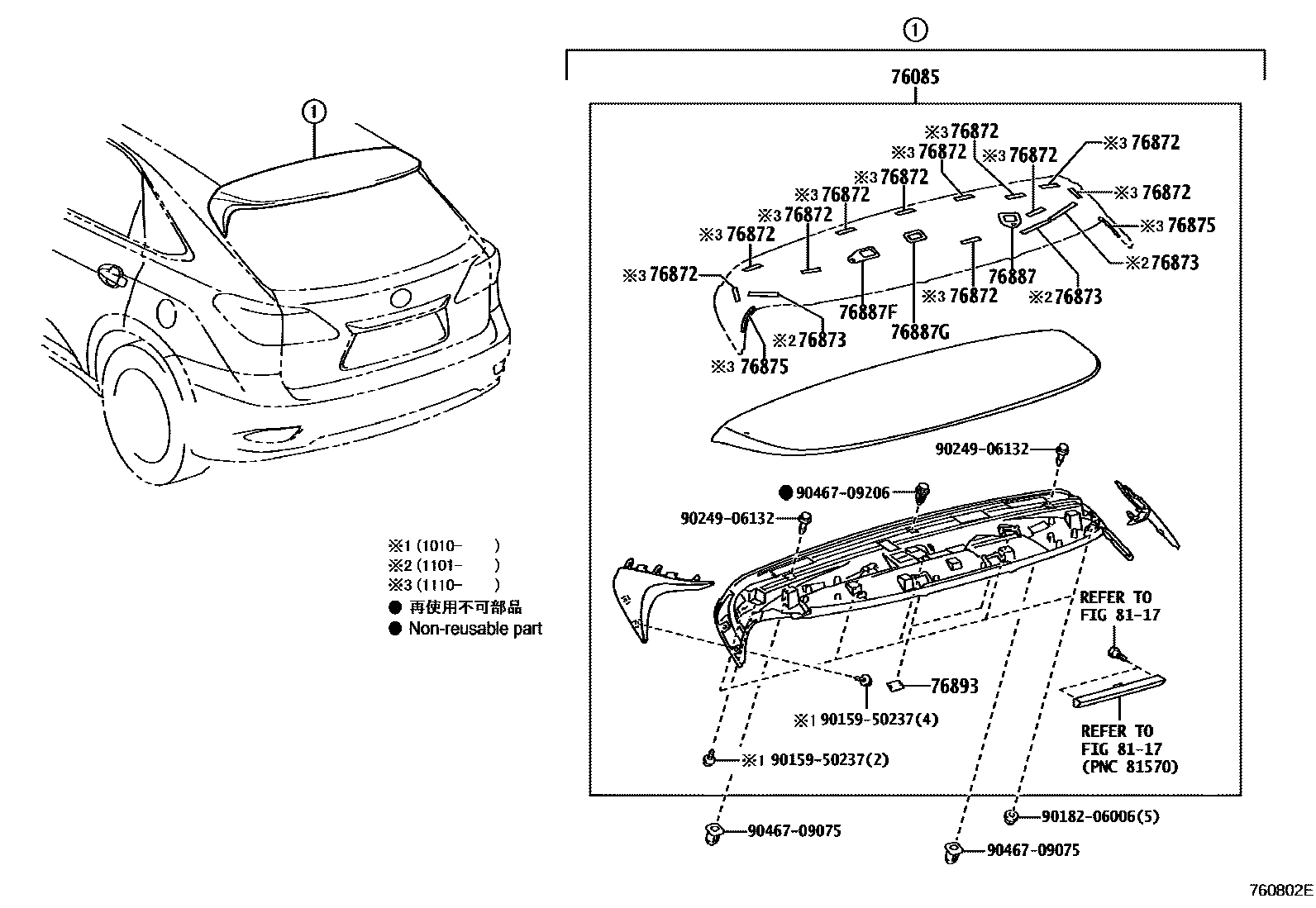

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-48140-A0200812-201009

main76085-48140-A1200903-201009

main76085-48140-B0200812-201009

main76085-48140-B2200812-201009

main76085-48140-C0200812-201009

main76085-48140-C1200910-201009

main76085-48140-C2201008-201009

main76085-48140-D0200812-201009

main76085-48140-E0200812-201008

main76085-48140-E1200812-201008

main76085-48140-E2201008-201009

main76085-48140-J0200812-201008

main76085-48140-J1200812-201009

main76085-48141-A0201010-201203

main76085-48141-A1201010-201203

main76085-48141-B0201010-201108

main76085-48141-B2201010-201203

main76085-48141-B3201108-201203

main76085-48141-C0201010-201203

main76085-48141-C1201010-201203

main76085-48141-C2201010-201203

main76085-48141-D0201010-201203

main76085-48141-E2201010-201203

main76085-48141-J1201010-201203

main76085-48150-A0201203-201303

main76085-48150-A1201203-201303

main76085-48150-B1201203-201303

main76085-48150-B2201203-201303

main76085-48150-C0201203-201303

main76085-48150-C1201203-201303

main76085-48150-D0201203-201303

main76085-48150-E0201203-201303

main76085-48150-E1201203-201303

main76085-48150-J0201203-201303

main76085-48151-A0201304-201405

main76085-48151-A2201308-201405

main76085-48151-B1201304-201405

main76085-48151-B2201304-201405

main76085-48151-C0201304-201405

main76085-48151-C1201304-201405

main76085-48151-D0201304-201405

main76085-48151-E0201304-201405

main76085-48151-E1201304-201405

main76085-48151-J0201304-201405

main76085-48152-A0201406-201509

main76085-48152-A2201406-201509

main76085-48152-B1201406-201509

main76085-48152-B2201406-201509

main76085-48152-C0201406-201509

main76085-48152-C1201406-201509

main76085-48152-D0201406-201509

main76085-48152-E0201406-201509

main76085-48152-E1201406-201509

main76085-48152-J0201406-201509

76872PROTECTOR, REAR SPOILER, NO.1

main76872-48011201110-201509

76873PROTECTOR, REAR SPOILER, NO.2

main76873-48021201101-201203

76875PROTECTOR, REAR SPOILER, NO.4

main76875-48031201110-201203

76887SEAL, REAR SPOILER

main76887-48010200812-201303

main76887-48011201304

76887FSEAL, REAR SPOILER, NO.2

main76887-48020200812-201303

main76887-48021201304

76887GSEAL, REAR SPOILER, NO.3

main76887-48030200812-201303

main76887-48031201304

76893COVER, REAR SPOILER, NO.1

main76893-48010200812-201203

8117CENTER STOP LAMP

→ Go to FIG 81-17

9015950237

main90159-50237

9018206006

main90182-06006

9024906132

main90249-06132

9046709075

main90467-09075

9046709206

main90467-09206

14 parts on this diagram · 1 diagram in section
