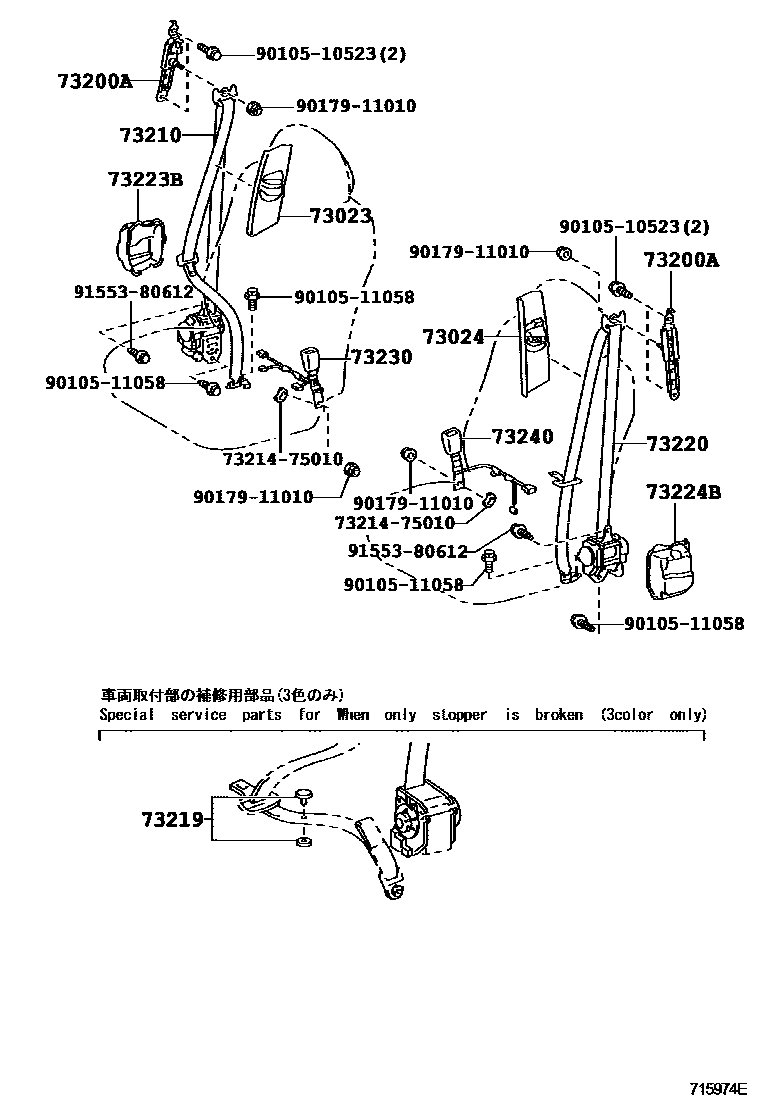

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ��� 0002 1�� ���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-A1iAGL10,GGL1#,GYL1#201203-201509

IVORY,TRIM0#

main73023-53020-B0iAGL10,GGL10,GYL10; GGL15,GYL15; GYL16201203-201509

LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,30,4#; LT.GRAY,TRIM10,20,30,40

main73023-53020-C0iAGL10,GGL10,GYL10; GGL15,GYL15201203-201509

BLACK,TRIM11,21,22,31,32,41; BLACK,TRIM32

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-A1iAGL10,GGL1#,GYL1#201203-201509

IVORY,TRIM0#

main73024-53020-B0iAGL10,GGL10,GYL10; GGL15,GYL15; GYL16201203-201509

LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,30,4#; LT.GRAY,TRIM10,20,30,40

main73024-53020-C0iAGL10,GGL10,GYL10; GGL15,GYL15201203-201509

BLACK,TRIM11,21,22,31,32,41; BLACK,TRIM32

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iAGL10,GGL1#,GYL1#201505

main73200-53010×2iAGL10,GGL1#,GYL1#200812-201203

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-48190-A1iAGL10,GGL1#,GYL1#200812-201108

IVORY,TRIM0#

main73210-48190-B2iAGL10,GGL1#,GYL1#200812-201108

LT.GRAY,TRIM1#

main73210-48190-C4iAGL10,GGL1#,GYL1#200812-201108

BLACK,TRIM2#

main73210-48230-A0iAGL10,GGL1#,GYL1#201203-201301

IVORY,TRIM0#

main73210-48230-B0iAGL10,GGL1#,GYL1#201108-201203

LT.GRAY,TRIM1#

main73210-48230-C0iAGL10,GGL1#,GYL1#201108-201203

BLACK,TRIM2#

main73210-48231-A0iAGL10,GGL1#,GYL10,15; GYL16201302-201403

main73210-48231-B0iAGL10,GGL1#,GYL10,15; AGL10,GGL10,GYL10; GGL15,GYL15; GYL16201302-201403

main73210-48231-C0iAGL10,GGL1#,GYL10,15; AGL10,GGL10,GYL10; GGL15,GYL15; GYL16201302-201403

main73210-48350-A0iAGL10,GGL1#,GYL10,15; GYL16201403-201509

main73210-48350-B0iAGL10,GGL1#,GYL10,15; AGL10,GGL10,GYL10; GGL15,GYL15; GYL16201403-201509

main73210-48350-C0iAGL10,GGL1#,GYL10,15; AGL10,GGL10,GYL10; GGL15,GYL15; GYL16201403-201509

main73210-48350-C1iAGL10,GGL10,GYL10; GGL15,GYL15201403-201509

BLACK/BLACK,TRIM21,22,3#,4#; BLACK/BLACK,TRIM3#

main73210-48200-A1iGGL1#,GYL1#200812-201108

main73210-48200-B2iGGL1#,GYL1#200812-201108

main73210-48200-C4iGGL1#,GYL1#200812-201108

main73210-48360-A0iGGL1#,GYL1#; GGL1#,GYL10,15201403-201509

main73210-48360-B0iGGL1#,GYL10,15; GGL10,GYL10,16; GGL15,GYL15201403-201509

main73210-48360-B1supersedes 73210-48350-B1iGGL15,GYL15201403-201509

main73210-48360-C0supersedes 73210-48350-C0iGGL1#,GYL10,15; GGL10,GYL10; GGL15,GYL15; GYL16201403-201509

main73210-48360-C1iGGL10,GYL10; GGL15,GYL15201403-201509

main73210-48460-A0iGGL1#,GYL1#; GGL1#,GYL10,15201203-201301

main73210-48460-B0supersedes 73210-48230-B0iGGL15,GYL15201210-201301

main73210-48460-B1supersedes 73210-48230-B1iGGL15,GYL15201210-201301

main73210-48460-C0supersedes 73210-48230-C0iGGL1#,GYL10,15; GGL10,GYL10,16; GGL15,GYL15201203-201301

main73210-48460-C1supersedes 73210-48230-C1iGGL15,GYL15201203-201301

main73210-48461-A0iGGL1#,GYL1#; GGL1#,GYL10,15201302-201403

main73210-48461-B0iGGL1#,GYL10,15; GGL10,GYL10,16; GGL15,GYL15201302-201403

main73210-48461-B1supersedes 73210-48231-B1iGGL15,GYL15201302-201403

main73210-48461-C0iGGL1#,GYL10,15; GGL10,GYL10; GGL15,GYL15; GYL16201302-201403

main73210-48461-C1supersedes 73210-48231-C1iGGL15,GYL15201302-201403

73219STOPPER, TONGUE PLATE

main73219-33010iAGL10,GGL1#,GYL1#200812-201203

main73219-33020iAGL10,GGL1#,GYL1#200812-201203

main73219-33030iAGL10,GGL1#,GYL1#200812-201203

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-48170-A1iAGL10,GGL1#,GYL1#200812-201108

IVORY,TRIM0#

main73220-48170-B2iAGL10,GGL1#,GYL1#200812-201108

LT.GRAY,TRIM1#

main73220-48170-C4iAGL10,GGL1#,GYL1#200812-201108

BLACK,TRIM2#

main73220-48300-A0iAGL10,GGL1#,GYL10,15; GYL16201403-201509

main73220-48300-B0iAGL10,GGL1#,GYL10,15; AGL10,GGL10,GYL10; GGL15,GYL15; GYL16201403-201509

main73220-48300-C0iAGL10,GGL1#,GYL10,15; AGL10,GGL10,GYL10; GGL15,GYL15; GYL16201403-201509

main73220-48300-C1iAGL10,GGL10,GYL10; GGL15,GYL15201403-201509

BLACK/BLACK,TRIM21,22,3#,4#; BLACK/BLACK,TRIM3#

main73220-48450-A0iAGL10,GGL1#,GYL1#201108-201203

IVORY,TRIM0#

main73220-48450-B0iAGL10,GGL1#,GYL1#201108-201203

LT.GRAY,TRIM1#

main73220-48450-C0iAGL10,GGL10,GYL10,16; GGL15,GYL15201203-201301

BLACK/LT.GRAY,TRIM2#,3#,4#; BLACK/LT.GRAY,TRIM20,30,40

main73220-48451-A0iAGL10,GGL1#,GYL10,15; GYL16201302-201403

main73220-48451-B0iAGL10,GGL1#,GYL10,15; AGL10,GGL10,GYL10; GGL15,GYL15; GYL16201302-201403

main73220-48451-C0iAGL10,GGL1#,GYL10,15; AGL10,GGL10,GYL10; GGL15,GYL15; GYL16201302-201403

main73220-48180-A1iGGL1#,GYL1#200812-201108

main73220-48180-B2iGGL1#,GYL1#200812-201108

main73220-48180-C4iGGL1#,GYL1#200812-201108

main73220-48310-A0iGGL1#,GYL1#; GGL1#,GYL10,15201403-201509

main73220-48310-B0supersedes 73220-48300-B0iGGL1#,GYL10,15; GGL10,GYL10,16; GGL15,GYL15201403-201509

main73220-48310-B1supersedes 73220-48300-B1iGGL15,GYL15201403-201509

main73220-48310-C0supersedes 73220-48300-C0iGGL1#,GYL10,15; GGL10,GYL10; GGL15,GYL15; GYL16201403-201509

main73220-48310-C1supersedes 73220-48300-C1iGGL10,GYL10; GGL15,GYL15201403-201509

main73220-48460-A0iGGL1#,GYL1#201108-201203

main73220-48460-B0iGGL1#,GYL10,15; GGL10,GYL10,16201203-201301

main73220-48460-B1supersedes 73220-48450-B1iGGL15,GYL15201210-201301

main73220-48460-C0iGGL1#,GYL1#201108-201203

main73220-48460-C1supersedes 73220-48450-C1iGGL15,GYL15201203-201301

main73220-48461-A0iGGL1#,GYL1#; GGL1#,GYL10,15201302-201403

main73220-48461-B0iGGL1#,GYL10,15; GGL10,GYL10,16; GGL15,GYL15201302-201403

main73220-48461-B1supersedes 73220-48451-B1iGGL15,GYL15201302-201403

main73220-48461-C0supersedes 73220-48451-C0iGGL1#,GYL10,15; GGL10,GYL10; GGL15,GYL15; GYL16201302-201403

main73220-48461-C1supersedes 73220-48451-C1iGGL15,GYL15201302-201403

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-48010iAGL10,GGL1#,GYL1#200812-201203

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73223-48010iAGL10,GGL1#,GYL1#200812-201203

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-48350-C0iAGL10,GGL10,GYL10; GGL15,GYL15201403

BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#

main73230-48370-A0supersedes 73230-48350-A0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201403

main73230-48370-B0supersedes 73230-48350-B0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201403

main73230-48370-C0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201403

main73230-48380-B0iGYL15; GYL16200903-201203

LT.GRAY,TRIM10,12; LT.GRAY,TRIM10,12,13

main73230-48380-C0iAGL10,GGL1#,GYL10200812-201203

BLACK,TRIM2#

main73230-48390-A0supersedes 73230-48380-A0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201203-201403

main73230-48390-B0supersedes 73230-48380-B0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201203-201403

main73230-48390-C0supersedes 73230-48380-C0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201203-201403

main73230-48380-A0iAGL10,GGL10,15201008-201108

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-48300-B0iGYL15; GYL16200903-201203

LT.GRAY,TRIM10,12; LT.GRAY,TRIM10,12,13

main73230-48310-A0supersedes 73230-48300-A0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201203-201403

main73230-48310-B0supersedes 73230-48300-B0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201203-201403

main73230-48310-C0supersedes 73230-48300-C0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201203-201403

main73230-48420-C0iAGL10,GGL10,GYL10; GGL15,GYL15201403

BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#

main73230-48430-A0supersedes 73230-48420-A0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201403

main73230-48430-B0supersedes 73230-48420-B0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201403

main73230-48430-C0iAGL10,GGL1#,GYL10,15; GGL1#,GYL10,15; GYL16201403

main73230-48300-A0iAGL10,GGL10,15201008-201108

main73230-48300-C0iAGL10,GGL10,15201008-201108

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 2 diagrams in section
