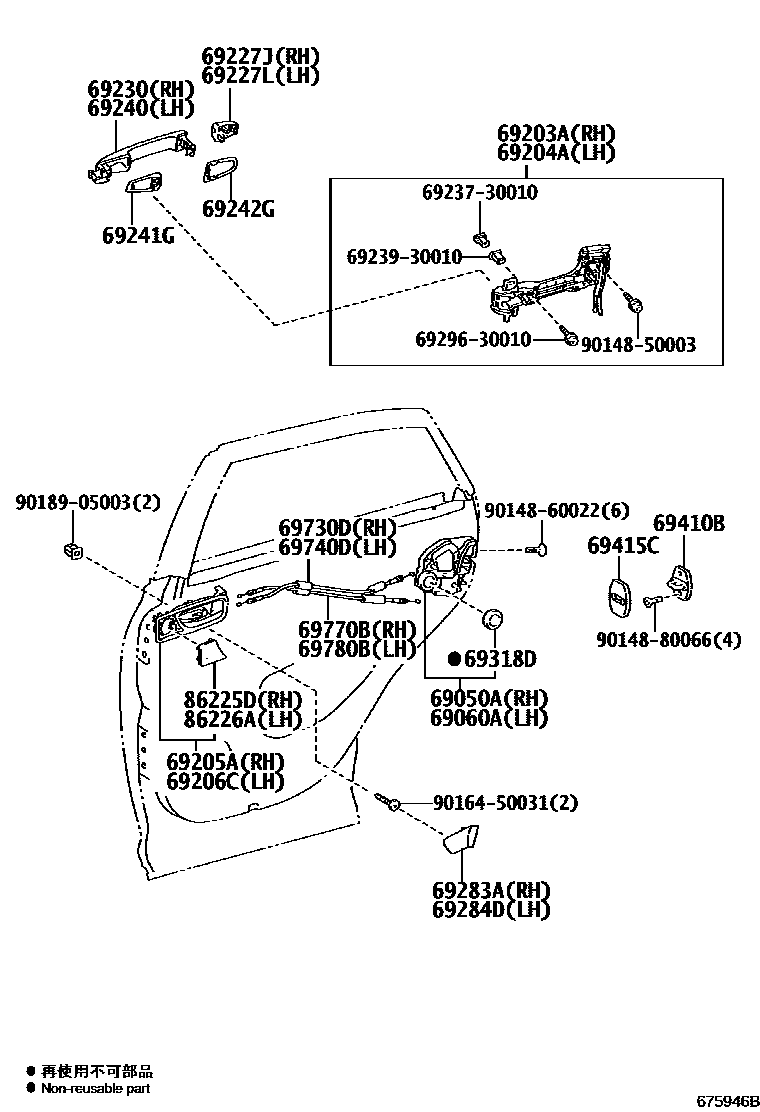

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-60100iAGL10,GGL1#,GYL1#200812-201203

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-60100iAGL10,GGL1#,GYL1#200812-201203

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-48040iGGL1#,GYL1#200812-200905

main69203-48041iAGL10,GGL1#,GYL1#200906-201203

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-48040iGGL1#,GYL1#200812-200905

main69204-48041iAGL10,GGL1#,GYL1#201203

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main67607-48010-A0supersedes 67607-48020-A0iAGL10,GGL1#,GYL10,15; GYL16201203-201509

main67607-48010-B0supersedes 67607-48020-B0iAGL10,GGL10,15; GGL16200812-201203

main67607-48010-C0supersedes 67607-48020-C0iGYL15; GYL16200903-201203

main67607-48020-C0iAGL10,GGL1#,GYL10,15201203-201509

BLACK,TRIM1#,2#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main67608-48010-A0supersedes 67608-48020-A0iAGL10,GGL10,15,GYL10,15; GGL16,GYL16200812-201203

main67608-48010-B0supersedes 67608-48020-B0iGYL15; GYL16200903-201203

main67608-48010-C0supersedes 67608-48020-C0iAGL10,GGL10,15; GGL16200812-201203

main67608-48020-C0iAGL10,GGL1#,GYL10,15201203-201509

BLACK,TRIM1#,2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-48010-A0iAGL10,GGL1#,GYL1#201203

WHITE PEARL CS.,077

main69227-48010-A1iAGL10,GGL1#,GYL1#201203-201308

QUARTZ WHITE C.S.,078

main69227-48010-A2iGGL15,GYL15201308

WHITE NOVA GF.,083

main69227-48010-B0iAGL10,GGL1#,GYL1#200812-201108

DK.GRAY MC.,1G0

main69227-48010-B2iAGL10,GGL1#,GYL1#200812-201203

SILVER M.M.,1G1

main69227-48010-B4iAGL10,GGL1#,GYL1#201108-201203

MERCURY GRAY MC.,1H9

main69227-48010-B6iAGL10,GGL1#,GYL1#201203

PLATINUM SILVER ME.,1J4

main69227-48010-C0iAGL10,GGL1#,GYL1#200812-201203

BLACK,212

main69227-48010-C1iGYL1#200910-201203

BLACK OPAL MC.,214

main69227-48010-C2iAGL10,GGL1#,GYL1#201203

STARLIGHT BLACK GF.,217

main69227-48010-D0iAGL10,GGL1#,GYL1#200812-201203

RED MC.CS.,3R1

main69227-48010-D2iAGL10,GGL1#,GYL1#201203

GARNET RED MC.,3S0

main69227-48010-E0iGGL1#,GYL1#200812-201008

BEIGE ME.,4T1

main69227-48010-E1iGGL1#,GYL1#200812-201008

SABLE M.M.,4T5

main69227-48010-E2iAGL10,GGL1#,GYL1#201203

FIRE AGATE M.M.,4V3

main69227-48010-E3iAGL10,GGL1#,GYL1#201008-201203

SLEEK ECRU ME.,4U7

main69227-48010-J0iGGL1#,GYL1#200812-201008

DK.BLUE MC. CC.,8U0

main69227-48010-J1iAGL10,GGL1#,GYL1#200812-201203

SILVERY BLUE ME.,8U9

main69227-48010-J3iAGL10,GGL1#,GYL1#201203

LAPIS LAZULI MC.,8V3

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-48010-A0iAGL10,GGL1#,GYL1#200812-201203

WHITE PEARL CS.,077

main69228-48010-A1iGGL1#,GYL1#200903-201203

QUARTZ WHITE C.S.,078

main69228-48010-A2iGGL15,GYL15201308

WHITE NOVA GF.,083

main69228-48010-B0iAGL10,GGL1#,GYL1#200812-201108

DK.GRAY MC.,1G0

main69228-48010-B2iAGL10,GGL1#,GYL1#200812-201203

SILVER M.M.,1G1

main69228-48010-B4iAGL10,GGL1#,GYL1#201108-201203

MERCURY GRAY MC.,1H9

main69228-48010-B6iAGL10,GGL1#,GYL1#201203

PLATINUM SILVER ME.,1J4

main69228-48010-C0iAGL10,GGL1#,GYL1#201203

BLACK,212

main69228-48010-C1iGYL1#200910-201203

BLACK OPAL MC.,214

main69228-48010-C2iAGL10,GGL1#,GYL1#201203

STARLIGHT BLACK GF.,217

main69228-48010-D0iAGL10,GGL1#,GYL1#200812-201203

RED MC.CS.,3R1

main69228-48010-D2iAGL10,GGL1#,GYL1#201203

GARNET RED MC.,3S0

main69228-48010-E0iGGL1#,GYL1#200812-201008

BEIGE ME.,4T1

main69228-48010-E1iGGL1#,GYL1#200812-201008

SABLE M.M.,4T5

main69228-48010-E2iAGL10,GGL1#,GYL1#201203

FIRE AGATE M.M.,4V3

main69228-48010-E3iAGL10,GGL1#,GYL1#201203

SLEEK ECRU ME.,4U7

main69228-48010-J0iGGL1#,GYL1#200812-201008

DK.BLUE MC. CC.,8U0

main69228-48010-J1iAGL10,GGL1#,GYL1#200812-201203

SILVERY BLUE ME.,8U9

main69228-48010-J3iAGL10,GGL1#,GYL1#201203

LAPIS LAZULI MC.,8V3

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-48070-A0iAGL10,GGL1#,GYL1#200812-201107

WHITE PEARL CS.,077

main69210-48070-A1iGYL1#200903-201107

QUARTZ WHITE C.S.,078

main69210-48070-B0iAGL10,GGL1#,GYL1#200812-201107

DK.GRAY MC.,1G0

main69210-48070-B1iAGL10,GGL1#,GYL1#200812-201107

SILVER M.M.,1G1

main69210-48070-C0iAGL10,GGL1#,GYL1#200812-201107

BLACK,212

main69210-48070-C1iGYL1#200910-201107

BLACK OPAL MC.,214

main69210-48070-C2iAGL10,GGL1#,GYL1#201008-201107

STARLIGHT BLACK GF.,217

main69210-48070-D0iAGL10,GGL1#,GYL1#200812-201107

RED MC.CS.,3R1

main69210-48070-E0iGGL1#,GYL1#200812-201008

BEIGE ME.,4T1

main69210-48070-E1iGGL1#,GYL1#200812-201008

SABLE M.M.,4T5

main69210-48070-E3iAGL10,GGL1#,GYL1#201008-201107

SLEEK ECRU ME.,4U7

main69210-48070-J0iGGL1#,GYL1#200812-201008

DK.BLUE MC. CC.,8U0

main69210-48070-J1iAGL10,GGL1#,GYL1#200812-201107

SILVERY BLUE ME.,8U9

main69210-76010-A0iAGL10,GGL1#,GYL1#201203-201509

WHITE PEARL CS.,077

main69210-76010-A1iAGL10,GGL1#,GYL1#201203-201308

QUARTZ WHITE CS.,078

main69210-76010-A2iGGL15,GYL15201308-201509

WHITE NOVA GF.,083

main69210-76010-B0iAGL10,GGL1#,GYL1#201108-201203

SILVER M.M.,1G1

main69210-76010-B1iAGL10,GGL1#,GYL1#201203-201509

MERCURY GRAY MC.,1H9

main69210-76010-B4iAGL10,GGL1#,GYL1#201203-201509

PLATINUM SILVER ME.,1J4

main69210-76010-C0iAGL10,GGL1#,GYL1#201108-201203

BLACK,212

main69210-76010-C1iGYL1#201108-201203

BLACK OPAL MC.,214

main69210-76010-C2iAGL10,GGL1#,GYL1#201203-201509

STARLIGHT BLACK GF.,217

main69210-76010-D0iAGL10,GGL1#,GYL1#201108-201203

RED MC.CS.,3R1

main69210-76010-D1iAGL10,GGL1#,GYL1#201203-201509

GARNET RED MC.,3S0

main69210-76010-E0iAGL10,GGL1#,GYL1#201203-201509

FIRE AGATE M.M.,4V3

main69210-76010-E1iAGL10,GGL1#,GYL1#201203-201509

SLEEK ECRU ME.,4U7

main69210-76010-J1iAGL10,GGL1#,GYL1#201108-201203

SILVERY BLUE ME.,8U9

main69210-76010-J2iAGL10,GGL1#,GYL1#201203-201509

LAPIS LAZULI MC.,8V3

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-48060-A0iAGL10,GGL1#,GYL1#200812-201107

WHITE PEARL CS.,077

main69220-48060-A1iGYL1#200903-201107

QUARTZ WHITE C.S.,078

main69220-48060-B0iAGL10,GGL1#,GYL1#200812-201107

DK.GRAY MC.,1G0

main69220-48060-B1iAGL10,GGL1#,GYL1#200812-201107

SILVER M.M.,1G1

main69220-48060-C0iAGL10,GGL1#,GYL1#200812-201107

BLACK,212

main69220-48060-C1iGYL1#200910-201107

BLACK OPAL MC.,214

main69220-48060-C2iAGL10,GGL1#,GYL1#201008-201107

STARLIGHT BLACK GF.,217

main69220-48060-D0iAGL10,GGL1#,GYL1#200812-201107

RED MC.CS.,3R1

main69220-48060-E0iGGL1#,GYL1#200812-201008

BEIGE ME.,4T1

main69220-48060-E1iGGL1#,GYL1#200812-201008

SABLE M.M.,4T5

main69220-48060-E3iAGL10,GGL1#,GYL1#201008-201107

SLEEK ECRU ME.,4U7

main69220-48060-J0iGGL1#,GYL1#200812-201008

DK.BLUE MC. CC.,8U0

main69220-48060-J1iAGL10,GGL1#,GYL1#200812-201107

SILVERY BLUE ME.,8U9

main69220-76010-A0iAGL10,GGL1#,GYL1#201108-201203

WHITE PEARL CS.,077

main69220-76010-A1iGYL1#201108-201203

QUARTZ WHITE CS.,078

main69220-76010-A2iGGL15,GYL15201308-201509

WHITE NOVA GF.,083

main69220-76010-B0iAGL10,GGL1#,GYL1#201108-201203

SILVER M.M.,1G1

main69220-76010-B1iAGL10,GGL1#,GYL1#201203-201509

MERCURY GRAY MC.,1H9

main69220-76010-B4iAGL10,GGL1#,GYL1#201203-201509

PLATINUM SILVER ME.,1J4

main69220-76010-C0iAGL10,GGL1#,GYL1#201203-201509

BLACK,212

main69220-76010-C1iGYL1#201108-201203

BLACK OPAL MC.,214

main69220-76010-C2iAGL10,GGL1#,GYL1#201108-201203

STARLIGHT BLACK GF.,217

main69220-76010-D0iAGL10,GGL1#,GYL1#201108-201203

RED MC.CS.,3R1

main69220-76010-D1iAGL10,GGL1#,GYL1#201203-201509

GARNET RED MC.,3S0

main69220-76010-E0iAGL10,GGL1#,GYL1#201203-201509

FIRE AGATE M.M.,4V3

main69220-76010-E1iAGL10,GGL1#,GYL1#201108-201203

SLEEK ECRU ME.,4U7

main69220-76010-J1iAGL10,GGL1#,GYL1#201108-201203

SILVERY BLUE ME.,8U9

main69220-76010-J2iAGL10,GGL1#,GYL1#201203-201509

LAPIS LAZULI MC.,8V3

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-48030iAGL10,GGL1#,GYL1#200812-201203

main69242-48030iAGL10,GGL1#,GYL1#201203

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-48040iAGL10,GGL1#,GYL1#200812-201009

main69241-48041iAGL10,GGL1#,GYL1#201203-201302

main69241-48050iAGL10,GGL1#,GYL1#201303

main69242-48040iAGL10,GGL1#,GYL1#200812-201009

main69242-48041iAGL10,GGL1#,GYL1#201010-201203

main69242-48050iAGL10,GGL1#,GYL1#201303

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30050-A2iAGL10,GGL1#,GYL1#200812-201203

IVORY,TRIM0#

main69283-30050-B0iGYL15,16200903-201203

LT.GRAY,TRIM10

main69283-30050-C0iAGL10,GGL1#200812-201203

BLACK,TRIM2#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30050-A2iAGL10,GGL1#,GYL1#201203

IVORY,TRIM0#

main69284-30050-B0iAGL10,GGL1#200812-201203

LT.GRAY,TRIM1#

main69284-30050-C0iAGL10,GGL1#200812-201203

BLACK,TRIM2#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iAGL10,GGL1#,GYL1#200812-201203

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33020×2iAGL10,GGL1#,GYL1#200812-201203

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-33010×2iAGL10,GGL1#,GYL1#201203-201410

main69415-60020×2iAGL10,GGL1#,GYL1#201411

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-48060iAGL10,GGL1#,GYL1#201203

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-48060iAGL10,GGL1#,GYL1#201203

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-48060iAGL10,GGL1#,GYL1#200812-201203

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-48060iAGL10,GGL1#,GYL1#200812-201203

86225DCOVER, SPEAKER, RH

main86225-48010-C0iAGL10,GGL1#,GYL10,15201203

BLACK,TRIM1#,2#

main86269-48010-A0supersedes 86225-48010-A0iAGL10,GGL1#,GYL10,15; GYL16201203

main86269-48010-B0supersedes 86225-48010-B0iAGL10,GGL10,15; GGL16200812-201203

main86269-48010-C0supersedes 86225-48010-C0iAGL10,GGL10,15; GGL16200812-201203

86226ACOVER, SPEAKER, LH

main86226-48010-C0iAGL10,GGL1#,GYL10,15201203

BLACK,TRIM1#,2#

main86279-48010-A0supersedes 86226-48010-A0iAGL10,GGL1#,GYL10,15; GYL16201203

main86279-48010-B0supersedes 86226-48010-B0iAGL10,GGL10,15; GGL16200812-201203

main86279-48010-C0supersedes 86226-48010-C0iGYL15; GYL16200903-201203

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6923930010PIN, BACK DOOR OUTSIDE HANDLE

main69239-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

31 parts on this diagram · 1 diagram in section
