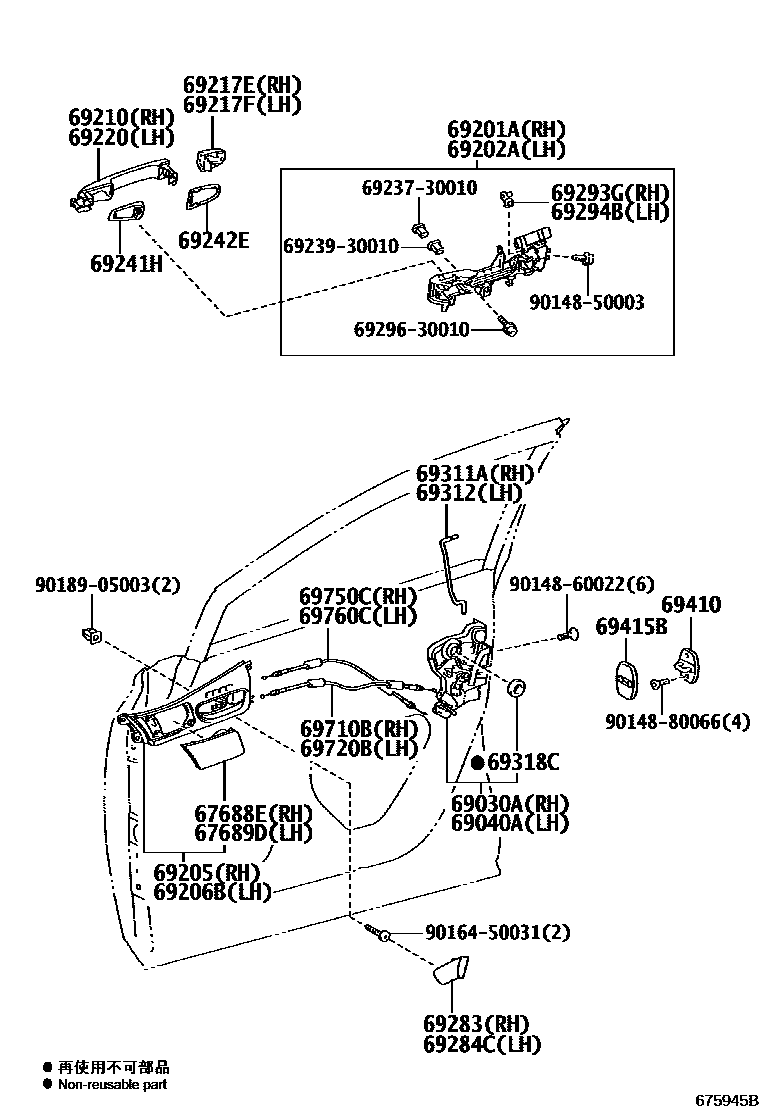

FRONT DOOR LOCK & HANDLE
67688EGRILLE, SPEAKER DOOR, NO.2 RH
IVORY,TRIM0#
LT.GRAY,TRIM10
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM12,13,2#
67689DGRILLE, SPEAKER DOOR, NO.2 LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
BLACK,TRIM12,13,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM10
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM12,13,2#
BLACK,TRIM1#,2#,3#,4#
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
BLACK,TRIM1#,2#
BLACK,TRIM12,13,2#
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM1#,2#,3#,4#
IVORY,TRIM0#
LT.GRAY,TRIM10
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM12,13,2#
BLACK,TRIM1#,2#,3#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
35 parts on this diagram · 1 diagram in section
