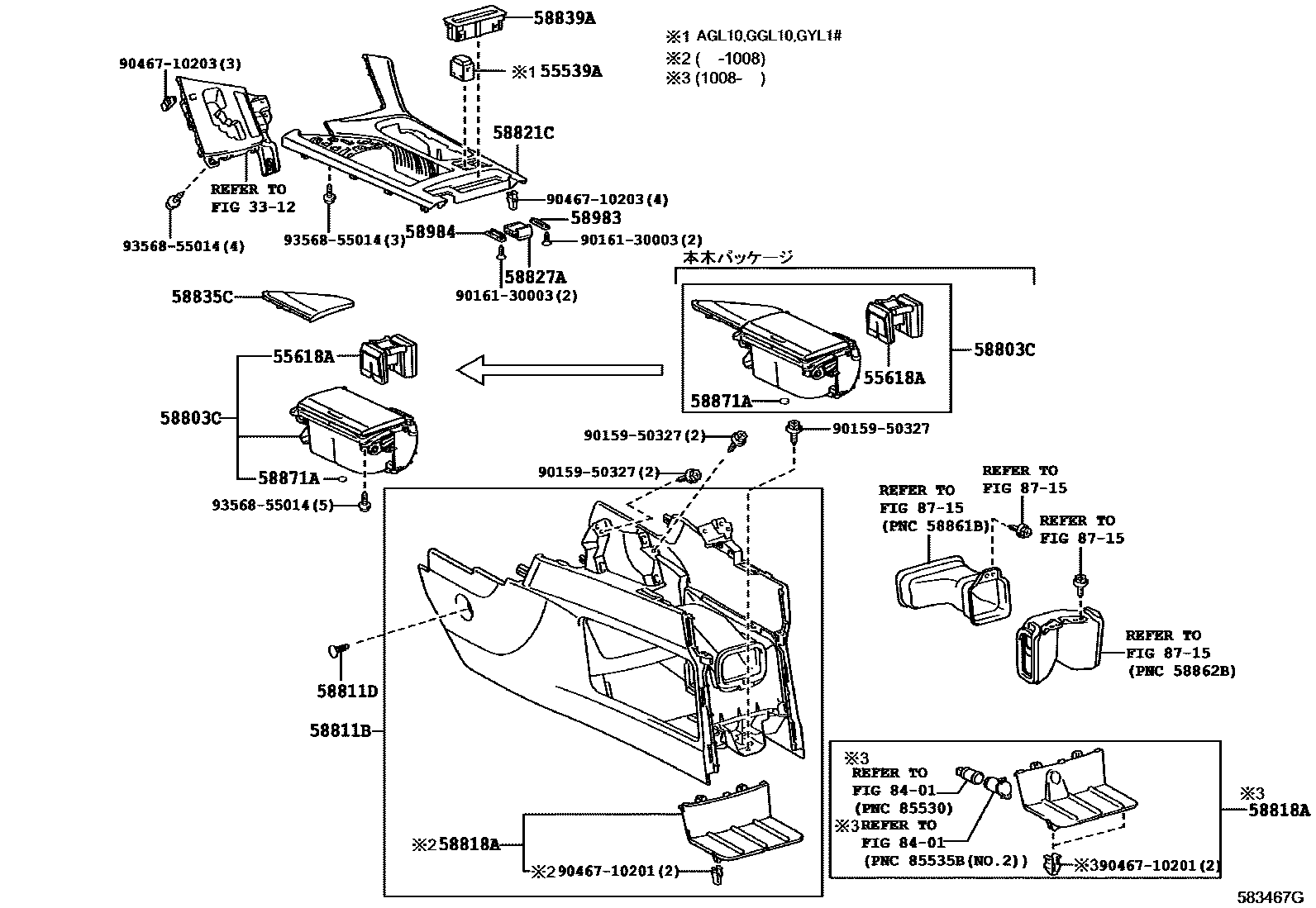

CONSOLE BOX & BRACKET
3312
55539ACOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
DARK GRAY,TRIM1#,2#,3#
DARK GRAY,TRIM10,20,30
DK.BROWN,TRIM00,40
DK.BROWN,TRIM0#,4#
NATURAL BROWN,TRIM00,10,20,30,40
APIS BLACK,TRIM0#,1#,2#,3#,4#
58811BBOX, CONSOLE
IVORY,TRIM0#
BLACK,TRIM1#,2#,3#,4#
IVORY,TRIM0#
BLACK,TRIM1#,2#,3#,4#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM1#,2#
IVORY,TRIM0#
BLACK,TRIM1#,2#
58811DCLIP(FOR CONSOLE BOX)
58818ACOVER, CONSOLE BOX, FR
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM1#,2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58821CPANEL, CONSOLE, UPPER
BLACK,TRIM1#,2#
DK. BROWN,TRIM0#
BLACK,TRIM1#,2#,3#,4#
DK. BROWN,TRIM0#
58827AGARNISH, CONSOLE BOX POCKET
BLACK,TRIM1#,2#
DK. BROWN,TRIM0#
58835CORNAMENT, CONSOLE BOX
58839ACOVER, CONSOLE BOX HOLE
58871CUSHION, CONSOLE BOX
58871ACUSHION, CONSOLE BOX, NO.2
58983RETAINER, UPPER CONSOLE
58984RETAINER, UPPER CONSOLE
8401
8715
9015950327
main90159-50327
9016130003
main90161-30003
9046710201
main90467-10201
9046710203
main90467-10203
9356855014
main93568-55014
22 parts on this diagram · 4 diagrams in section
